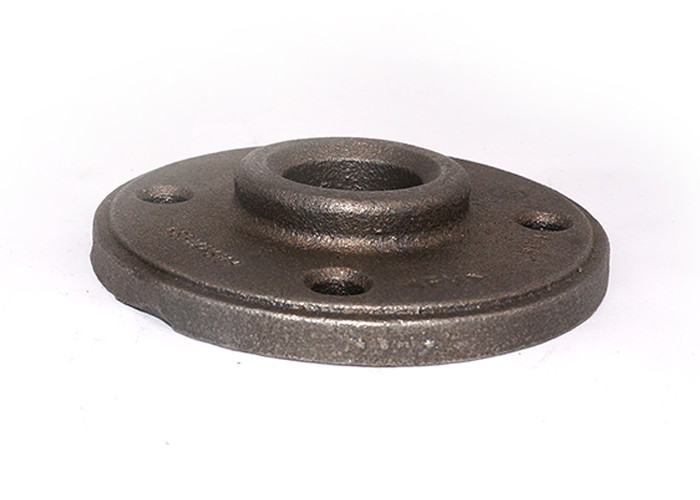

Black Casting Malleable Iron Flange Size 1/2”-8”Round Head Code

Black Casting Malleable Iron Flange Size 1/2”-8”Round Head Code

    • Black Casting Malleable Iron Flange Size 1/2”-8”Round Head Code
    • Black Casting Malleable Iron Flange Size 1/2”-8”Round Head Code
    • Black Casting Malleable Iron Flange Size 1/2”-8”Round Head Code
  • Black Casting Malleable Iron Flange Size 1/2”-8”Round Head Code

    Product Details:

    Place of Origin: China
    Brand Name: leyon
    Certification: UL
    Model Number: black malleable iron floor flange

    Payment & Shipping Terms:

    Minimum Order Quantity: 10piece
    Price: Negotiable
    Packaging Details: 200piece/carton
    Delivery Time: 25-35days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 10000piece/week
    Contact Now
    Detailed Product Description
    Color: Black Material: Iron
    Technics: Casting Size: 1/2”~8”
    Standard: ANSI,BS,DIN Head Code: Round
    Type: Decorative Iron Pipe Fittings
    High Light:

    black iron pipe floor flange

    ,

    galvanized malleable iron floor flange

     1/2" npt black malleable iron floor flange decorative iron pipe fittings pipe fitting malleable iron floor flange 1/2



    Comparison table:



    Size Inch 1/4 3/8 1/2 3/4 1 11/4
    mm 8 10 15 20 25 32
    Dim.
    (mm)
    A 12 14 14 16 17 19
    Size Inch 11/2 2 21/2 3 4
    mm 40 50 65 80 100
    Dim.
    (mm)
    A 22 25 26.2 27.3



    The most common traditional form is grey cast iron. Common or grey cast iron is easily cast but it cannot be forged or worked mechanically, either hot or cold.



    In grey cast iron, the carbon content is in the form of flakes distributed throughout the metal. In white cast iron, the carbon content is combined chemically as carbide of iron. White cast iron has superior tensile strength and malleability. It is also known as 'malleable' or 'spheroidal graphite' iron.

    Cast iron is still manufactured by much the same process as it was produced historically. Iron ore is heated in a blast furnace with coke and limestone. This process "deoxidizes" the ore and drives off impurities, producing molten iron. The molten iron is poured into molds of the desired shape and allowed to cool and crystallize.



    Upon manufacture, cast iron develops a protective film or scale on the surface which makes it initially more resistant to corrosion than wrought iron or mild steel. Finishing may include bituminous coatings, waxes, paints, galvanizing and plating. In addition, there are a variety of treatments that can reduce rusting and corrosion caused by environmental factors. Factory preservative treatments are typically barrier coatings intended to prevent the castings from oxidizing (rusting) in the presence of humidity and oxygen in the air.



    Visual communication for  decorative iron pipe fittings pipe fitting malleable iron floor flange



    Size 1/8"-6"
    Finishing Hot Dipped Galvanized, Electro Galvanized, Epoxy, Black
    Threads DIN, BS, NPT, G Thread, Metric
    Shape Banded, Beaded, Plain
    Ribs with Rib or without Rib
    Brand leyon
    Pressure Class 150, Class 300, PN10, PN16
    Weight Heavy, Standard, Medium, and Light
    Usage Convey Water, Oil, Gas, Steam and so on
    material malleable iron materail

    Black Casting Malleable Iron Flange Size 1/2”-8”Round Head CodeBlack Casting Malleable Iron Flange Size 1/2”-8”Round Head Code
