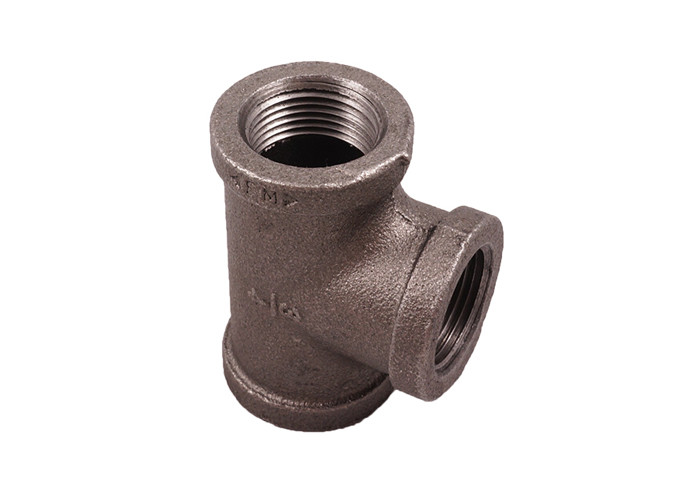

ANSI Standard Black Iron Tee Fitting 3/4 Inch Pipe Connector Malleable Iron Material

ANSI Standard Black Iron Tee Fitting 3/4 Inch Pipe Connector Malleable Iron Material

    • ANSI Standard Black Iron Tee Fitting 3/4 Inch Pipe Connector Malleable Iron Material
  • ANSI Standard Black Iron Tee Fitting 3/4 Inch Pipe Connector Malleable Iron Material

    Product Details:

    Place of Origin: China
    Brand Name: leyon
    Certification: FM/UL
    Model Number: 130

    Payment & Shipping Terms:

    Minimum Order Quantity: 100piece
    Price: Negotiable
    Packaging Details: 200piece/carton
    Delivery Time: 25-35days
    Payment Terms: Western Union, L/C, T/T, MoneyGram
    Supply Ability: 10000piece/week
    Contact Now
    Detailed Product Description
    Product Name: Normal Black Malleable Iron Tee Item Number: 130
    Certificates: BSI,ANAB,ISO9001 Standard: ANSI,BS,DIN
    Applications: Steam, Air, Gas, Oil Pipes And Home Decoration Color: As The Pictures Show
    Material: Malleable Iron Sizes: 3/8~ 4 Inch
    MOQ: 100pcs Package: Cutomized Color Design Box
    High Light:

    black iron tee fitting

    ,

    reducing tee pipe fitting

    black iron tee fitting 3/4 inch pipe connector Malleable Iron Tee



    Leyon group work in piping system industry over 23 years. Our main product including malleable pipe fitting, ductile iron groove pipe fitting, ductile iron threaded pipe fittings, carbon steel threaded pipe fittings, clamps, pipe nipple , Stainless steel pipe fittings, stainless steel valve.



    Up till now, there are 80,000 square meters of workshops and a plural of modern production lines in our factory. So far, our factories have successfully passed the official certifications in ULFMISO2015AS4020 and 3E,as well as other fields, aiming to satisfy the professional standards in various fields.









    The Attribute definition list

    Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2
    mm 6 8 10 15 20 25 32 40
    Dim.
    (mm)
    A 19 21 25 28 33 38 45 50
    Size Inch 2 21/2 3 4 5 6
    mm 50 65 80 100 125 150
    Dim.
    (mm)
    A 50 69 78 96 115 1301







    Size Inch 3/8X1/4 1/2x1/4 1/2x3/8 3/4x3/8 3/4x1/2
    mm 10X8 15X8 15X10 20X10 20X15
    Dim.
    (mm)
    A 23 26 26 28 30
      B 23 26 26 28 31
    Size Inch 1x1/2 1x3/4 11/4x1/2 11/4x3/4 11/4x1
    mm 25X15 25X20 32X15 32X20 32x25
    Dim.
    (mm)
    A 32 35 34 36 40
      B 34 36 38 41 42







    Size Inch 11/2X1/2 11/2x3/4 11/2x1 11/2x11/4 2x1/2
    mm 40X15 15X8 40X25 40X32 50X15
    Dim.
    (mm)
    A 36 39 42 46 38
      B 42 44 46 28 48
    Size Inch 2x3/4 2x1 2x11/4 2x11/2 21/2x1
    mm 50X20 50X25 50X32 50X40 65x25
    Dim.
    (mm)
    A 40 44 56 52 56
      B 50 52 58 55 63







    Size Inch 21/2X11/2 3x21/2 21/2x2 3x11/2
    mm 65X40 80X65 65X50 80X40
    Dim.
    (mm)
    A 64 82 61 58
      B 69 85 66 72
    Size Inch 3x2 4x21/2 4X3
    mm 80X50 100X65 100X80
    Dim.
    (mm)
    A 73 78 84
      B 78 90 92









    Visual communication of Maleable Iron Pipe Fittings





    Material Malleable iron
    Standard Thread: ISO 7/1
    Dimension ISO 49, DIN 2950,EN10242
    Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
    Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
    Testing pressure 2.5Mpa
    Working pressure 1.6Mpa
    Type Beaded with ribs or banded with ribs
    Beaded without ribs or banded without ribs
    Round/square
    Surface Galvanized/ no galvanized
    Color White/black
    Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
    Connection Male, Female
    Shape Equal, Reducing
    Certificate BSI,ANAB,ISO9001
    Application Suitable for pipe connect of steam, air, gas, oil and so on
    Buyer’s drawings or designs are available
    Package Cartons without pallet
    Cartons with pallet
    Double woven bags
    Or as buyer’s requirements

    Delivery details



    According to the quantities and specifications of each order
    Normal delivery time is from 30 to 45 days after receiving the deposit






    What’s the different of ductile iron , gray iron and malleable cast iron ?



    The characteristic of ductile iron is very tough, graphite is in the form of a ball.

    The feature of gray iron is very brittle , graphite is in the form of strip .

    The particularity of malleable cast iron is graphite is a group of flocculent tiles .



    So the ductile iron is hardest , malleable cast iron is harder than gray iron .



    Why the the toughness of them is different ?

    The big reason is time of annealing . If it annealing long time , then the cost also is higher and the quality also is better .
