Home ProductsMalleable Iron Tee

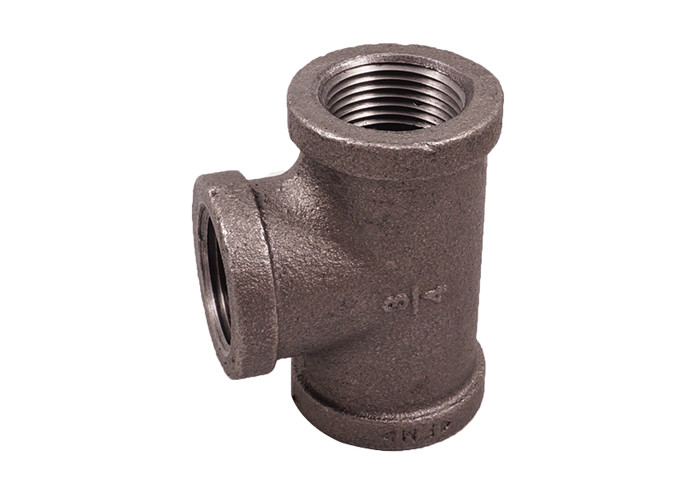

Fire Protection 1/2 Pipe Malleable Iron Tee Cast Iron Threaded Fittings

Fire Protection 1/2 Pipe Malleable Iron Tee Cast Iron Threaded Fittings

  • Fire Protection 1/2 Pipe Malleable Iron Tee Cast Iron Threaded Fittings
Fire Protection 1/2 Pipe Malleable Iron Tee Cast Iron Threaded Fittings
Product Details:
Place of Origin: China
Brand Name: leyon
Certification: FM/UL
Model Number: 130
Payment & Shipping Terms:
Minimum Order Quantity: 100piece
Price: Negotiable
Packaging Details: 200piece/carton
Delivery Time: 25-35days
Payment Terms: Western Union, L/C, T/T, MoneyGram
Supply Ability: 10000piece/week
Contact Now
Detailed Product Description
Product Name: Industrial Black Malleable Iron Tee Item Number: 130
Certificates: BSI,ANAB,ISO9001 Standard: ANSI,BS,DIN
Applications: Steam, Air, Gas, Oil Pipes And Home Decoration Color: As The Pictures Show
Material: Malleable Iron Sizes: 3/8~ 4 Inch
MOQ: 100pcs Package: Cutomized Color Design Box
High Light:

black iron tee fitting

,

reducing tee pipe fitting

cast iron threaded fittings 1/2 pipe tee female tee fitting Malleable Iron Tee



Leyon is Top 3 pipe fittings manufacturers in the world,it known as “China malleable” for more than 20 years. Leyon specialized in researching & manufacturing malleable iron fittings, including flange, elbow, tee, socket for furniture, we specially set up a factory to make furniture fittings since 2017.



Leyon is always focusing on research and development of malleable iron fittings, grooved fittings,tubing and valves that are mainly applied in such industries as fire protection, water supply, construction industry, municipal engineering and petrochemical.



Up till now, there are 80,000 square meters of workshops and a plural of modern production lines in our factory.









The Attribute definition list

Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2
mm 6 8 10 15 20 25 32 40
Dim.
(mm)
A 19 21 25 28 33 38 45 50
Size Inch 2 21/2 3 4 5 6
mm 50 65 80 100 125 150
Dim.
(mm)
A 50 69 78 96 115 1301







Size Inch 3/8X1/4 1/2x1/4 1/2x3/8 3/4x3/8 3/4x1/2
mm 10X8 15X8 15X10 20X10 20X15
Dim.
(mm)
A 23 26 26 28 30
  B 23 26 26 28 31
Size Inch 1x1/2 1x3/4 11/4x1/2 11/4x3/4 11/4x1
mm 25X15 25X20 32X15 32X20 32x25
Dim.
(mm)
A 32 35 34 36 40
  B 34 36 38 41 42







Size Inch 11/2X1/2 11/2x3/4 11/2x1 11/2x11/4 2x1/2
mm 40X15 15X8 40X25 40X32 50X15
Dim.
(mm)
A 36 39 42 46 38
  B 42 44 46 28 48
Size Inch 2x3/4 2x1 2x11/4 2x11/2 21/2x1
mm 50X20 50X25 50X32 50X40 65x25
Dim.
(mm)
A 40 44 56 52 56
  B 50 52 58 55 63







Size Inch 21/2X11/2 3x21/2 21/2x2 3x11/2
mm 65X40 80X65 65X50 80X40
Dim.
(mm)
A 64 82 61 58
  B 69 85 66 72
Size Inch 3x2 4x21/2 4X3
mm 80X50 100X65 100X80
Dim.
(mm)
A 73 78 84
  B 78 90 92

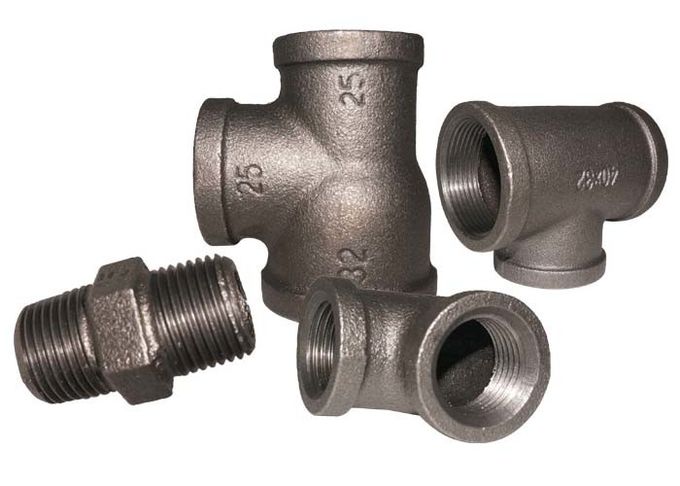

Visual communication of Maleable Iron Pipe Fittings





Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements

Delivery details



According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit






What’s the different of ductile iron , gray iron and malleable cast iron ?



The characteristic of ductile iron is very tough, graphite is in the form of a ball.

The feature of gray iron is very brittle , graphite is in the form of strip .

The particularity of malleable cast iron is graphite is a group of flocculent tiles .



So the ductile iron is hardest , malleable cast iron is harder than gray iron .



Why the the toughness of them is different ?

The big reason is time of annealing . If it annealing long time , then the cost also is higher and the quality also is better .
