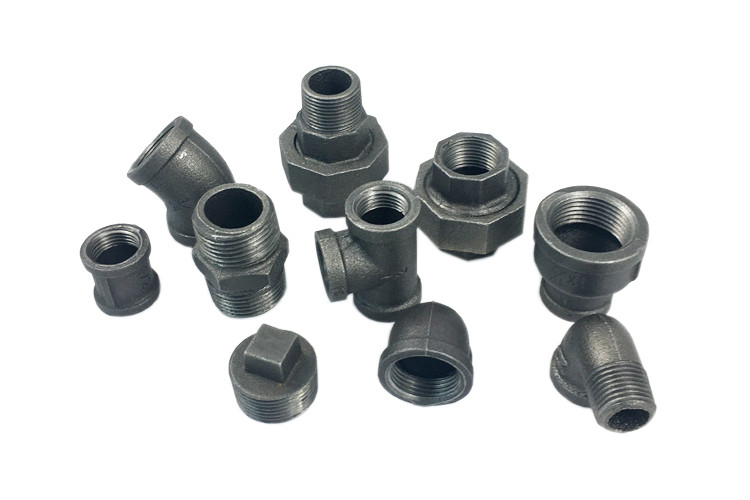

Professional Cast Iron Threaded Pipe Fittings Black Iron Pipe Union For Power Station

Professional Cast Iron Threaded Pipe Fittings Black Iron Pipe Union For Power Station

    • Professional Cast Iron Threaded Pipe Fittings Black Iron Pipe Union For Power Station
    • Professional Cast Iron Threaded Pipe Fittings Black Iron Pipe Union For Power Station
  • Professional Cast Iron Threaded Pipe Fittings Black Iron Pipe Union For Power Station

    Product Details:

    Place of Origin: China
    Brand Name: leyon
    Certification: FM/UL
    Model Number: 90/130/90R/130R/330

    Payment & Shipping Terms:

    Minimum Order Quantity: 100piece
    Price: Negotiable
    Packaging Details: 200piece/carton
    Delivery Time: 25-35days
    Payment Terms: Western Union, L/C, T/T, MoneyGram
    Supply Ability: 10000piece/week
    Contact Now
    Detailed Product Description
    Product Name: China Black Iron Pipe Fitting Certificate: BSI,ANAB,ISO9001
    Standard: ANSI,BS,DIN Material: Malleable Iron
    Color: Balck Sizes: 3/8~ 4 Inch
    Model Number: 330 Application: Steam, Air, Gas And Oil Pipes
    Head Code: Square Package: Standard Exporting Box
    High Light:

    malleable cast iron pipe fittings

    ,

    iron plumbing fittings

    threaded cast iron pipe fittings black iron pipe union Malleable Iron Pipe Fittings





    Leyon company is one of professional manufacturers and exporters of pipeline fittings in China.



    The products includes: malleable pipe fitting, ductile iron groove pipe fitting, ductile iron threaded pipe fittings, carbon steel threaded pipe fittings, clamps, pipe nipple , Stainless steel pipe fittings, stainless steel valve.

    they are widely used the pipe systems of nuclear power plants, power station, water, natural gas, petrochemical, oilfields, fire-fighting, ship buildings, engineering fields and construction industry.



    Up till now, there are 80,000 square meters of workshops and a plural of modern production lines in our factory.





    The Attribute definition list



    Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2
    mm 6 8 10 15 20 25 32 40
    Dim.
    (mm)
    A 19 21 25 28 33 38 45 50
    Size Inch 2 21/2 3 4 5 6
    mm 50 65 80 100 125 150
    Dim.
    (mm)
    A 50 69 78 96 115 1301







    Size Inch 3/8X1/4 1/2x1/4 1/2x3/8 3/4x3/8 3/4x1/2
    mm 10X8 15X8 15X10 20X10 20X15
    Dim.
    (mm)
    A 23 26 26 28 30
      B 23 26 26 28 31
    Size Inch 1x1/2 1x3/4 11/4x1/2 11/4x3/4 11/4x1
    mm 25X15 25X20 32X15 32X20 32x25
    Dim.
    (mm)
    A 32 35 34 36 40
      B 34 36 38 41 42







    Size Inch 11/2X1/2 11/2x3/4 11/2x1 11/2x11/4 2x1/2
    mm 40X15 15X8 40X25 40X32 50X15
    Dim.
    (mm)
    A 36 39 42 46 38
      B 42 44 46 28 48
    Size Inch 2x3/4 2x1 2x11/4 2x11/2 21/2x1
    mm 50X20 50X25 50X32 50X40 65x25
    Dim.
    (mm)
    A 40 44 56 52 56
      B 50 52 58 55 63







    Size Inch 21/2X11/2 3x21/2 21/2x2 3x11/2
    mm 65X40 80X65 65X50 80X40
    Dim.
    (mm)
    A 64 82 61 58
      B 69 85 66 72
    Size Inch 3x2 4x21/2 4X3
    mm 80X50 100X65 100X80
    Dim.
    (mm)
    A 73 78 84
      B 78 90 92









    Material: Malleable Iron

    StandardThread: BSPT(ISO 7/1),NPT(ANSI B1.20.1)

    Dimension: ASME B16.3,ASME B16.14,ASME B16.39,BS EN 10242,BS143,BS1256, ISO 49,DIN 2985

    Head shape: Beaded or Banded


    Connection: Male,Female threaded

    Shape: Equal,Reducing





    What’s the different of ductile iron , gray iron and malleable cast iron ?



    The characteristic of ductile iron is very tough, graphite is in the form of a ball.

    The feature of gray iron is very brittle , graphite is in the form of strip .

    The particularity of malleable cast iron is graphite is a group of flocculent tiles .



    So the ductile iron is hardest , malleable cast iron is harder than gray iron .



    Why the the toughness of them is different ?

    The big reason is time of annealing . If it annealing long time , then the cost also is higher and the quality also is better .
