| Place of Origin: | China |
| Brand Name: | leyon |
| Certification: | FM/UL |
| Model Number: | 130/220/90/240/130R |
| Minimum Order Quantity: | 100piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 200piece/carton |
| Delivery Time: | 25-35days |
| Payment Terms: | Western Union, L/C, T/T, MoneyGram |
| Supply Ability: | 10000piece/week |
| Product Name: | Hot Dipped Galvanised Malleable Iron Tee | Thread: | Bsp/npt |
|---|---|---|---|
| Item Number: | 130 | Certificates: | BSI,ANAB,ISO9001 |
| Applications: | Steam, Air, Gas, Oil Pipes And Home Decoration | Colors: | White/Black |
| Package: | Cutomized Color Design Box | Material: | Malleable Iron |
| Sizes: | 3/8~ 4 Inch | MOQ: | 100pcs |
| High Light: | black iron tee fitting,reducing tee pipe fitting |
||

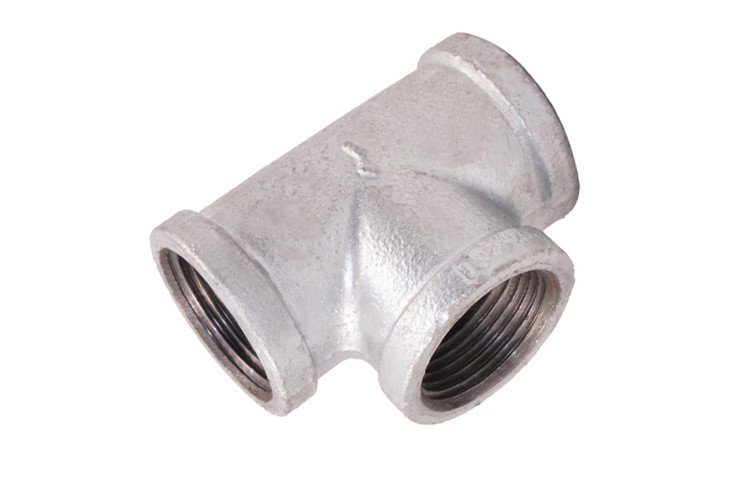

1/2 inch tee fitting galvanised malleable pipe fittings Malleable Iron Tee
Leyon takes pride in its part in making the world a better place.
We thrive on the challenge, and appreciate the role we play in enabling our customers to construct those structures, utilities and pipelines that we sometimes take for granted.
We use spectrometer from Oxford Instruments to check the material's quality.
We use high heat value natural gas annealing furnace, strictly control the annealing process, improve the physical properties of the materials
Strictly control the size of the thread, to ensure accuracy.
1/8”~8”The pipe fittings have outlets ranging from 1/8” through 8”.
Good toughness with long working life.
The Attribute definition list
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | 40 | |
| Dim. (mm) |
A | 19 | 21 | 25 | 28 | 33 | 38 | 45 | 50 |
| Size | Inch | 2 | 21/2 | 3 | 4 | 5 | 6 | ||
| mm | 50 | 65 | 80 | 100 | 125 | 150 | |||
| Dim. (mm) |
A | 50 | 69 | 78 | 96 | 115 | 1301 |
| Size | Inch | 3/8X1/4 | 1/2x1/4 | 1/2x3/8 | 3/4x3/8 | 3/4x1/2 |
| mm | 10X8 | 15X8 | 15X10 | 20X10 | 20X15 | |
| Dim. (mm) |
A | 23 | 26 | 26 | 28 | 30 |
| B | 23 | 26 | 26 | 28 | 31 | |
| Size | Inch | 1x1/2 | 1x3/4 | 11/4x1/2 | 11/4x3/4 | 11/4x1 |
| mm | 25X15 | 25X20 | 32X15 | 32X20 | 32x25 | |
| Dim. (mm) |
A | 32 | 35 | 34 | 36 | 40 |
| B | 34 | 36 | 38 | 41 | 42 |
| Size | Inch | 11/2X1/2 | 11/2x3/4 | 11/2x1 | 11/2x11/4 | 2x1/2 |
| mm | 40X15 | 15X8 | 40X25 | 40X32 | 50X15 | |
| Dim. (mm) |
A | 36 | 39 | 42 | 46 | 38 |
| B | 42 | 44 | 46 | 28 | 48 | |
| Size | Inch | 2x3/4 | 2x1 | 2x11/4 | 2x11/2 | 21/2x1 |
| mm | 50X20 | 50X25 | 50X32 | 50X40 | 65x25 | |
| Dim. (mm) |
A | 40 | 44 | 56 | 52 | 56 |
| B | 50 | 52 | 58 | 55 | 63 |
| Size | Inch | 21/2X11/2 | 3x21/2 | 21/2x2 | 3x11/2 |
| mm | 65X40 | 80X65 | 65X50 | 80X40 | |
| Dim. (mm) |
A | 64 | 82 | 61 | 58 |
| B | 69 | 85 | 66 | 72 | |
| Size | Inch | 3x2 | 4x21/2 | 4X3 | |
| mm | 80X50 | 100X65 | 100X80 | ||
| Dim. (mm) |
A | 73 | 78 | 84 | |
| B | 78 | 90 | 92 |
Visual communication of Maleable Iron Pipe Fittings
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001 |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
|
Delivery details
|
According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
What’s the different of ductile iron , gray iron and malleable cast iron ?
The characteristic of ductile iron is very tough, graphite is in the form of a ball.
The feature of gray iron is very brittle , graphite is in the form of strip .
The particularity of malleable cast iron is graphite is a group of flocculent tiles .
So the ductile iron is hardest , malleable cast iron is harder than gray iron .
Why the the toughness of them is different ?
The big reason is time of annealing . If it annealing long time , then the cost also is higher and the quality also is better .
