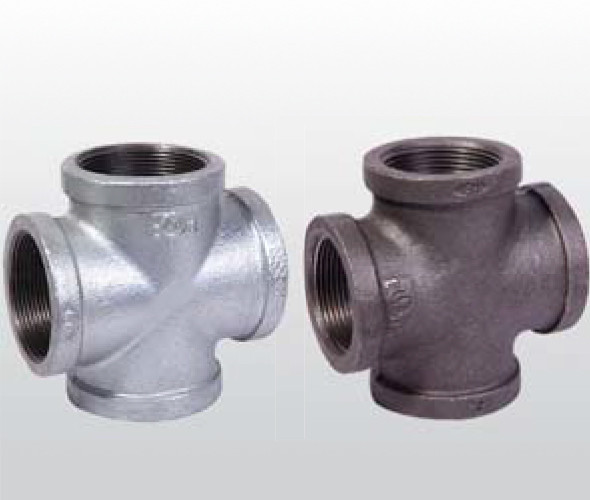

Weld Casting Iron 4 Way Pipe Fitting Cross For Plumbing Pipe Smooth Surface

Weld Casting Iron 4 Way Pipe Fitting Cross For Plumbing Pipe Smooth Surface

  • Weld Casting Iron 4 Way Pipe Fitting Cross For Plumbing Pipe Smooth Surface
  • Weld Casting Iron 4 Way Pipe Fitting Cross For Plumbing Pipe Smooth Surface
  • Weld Casting Iron 4 Way Pipe Fitting Cross For Plumbing Pipe Smooth Surface
  • Weld Casting Iron 4 Way Pipe Fitting Cross For Plumbing Pipe Smooth Surface
Weld Casting Iron 4 Way Pipe Fitting Cross For Plumbing Pipe Smooth Surface
Product Details:
Brand Name: kanaifu
Model Number: figure number 180
Payment & Shipping Terms:
Minimum Order Quantity: 100piece
Price: Negotiable
Packaging Details: 200piece/carton
Delivery Time: 25-35days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000piece/week
Contact Now
Detailed Product Description
Color: Galvanized & Black Material: Malleable Iron
Technics: Casting Standard: ANSI,BS,DIN
Surface Treatment: Hot Galvanized Size: 1/8"-4“
Head Code: Square Type: Cross
High Light:

threaded pipe nipple

,

iron water pipe fittings

 Low price of weld casting iron malleable iron cross joint pipe fittings





Size Inch 1/8 1/4 3/8 1/2 3/4 1
mm 6 8 10 15 20 25
Dim.
(mm)
A 17.5 20.6 24.1 28.5 33.3 38.1
Size Inch 11/4 11/2 2 21/2 3 4
mm 32 40 50 65 80 100
Dim.
(mm)
A 44.5 49.3 57.2 68.6 78.2 96.3







1, The equipments from DISA Denmark, DJ AMF Japan, SINTOKOGIO Japan widely used in our malleable iron cross productline, ensures the stability of product quality.

2, We use spectrometer from Oxford Instruments to check the material's quality

3, We use high heat value natural gas annealing furnace, strictly control the annealing process, improve the physical properties of the materials

4, Each pipe fitting cross after air tightness test, ensure no leakage

5, Strict control of pipe fittings and the size of the thread, to ensure accuracy

6, The pipe fittings have outlets ranging from 1/8” through 4”

7, Good toughness with long working life.

8, Smooth surface without any sand hole

9, avg. thickness of zinc coating is higher than 86 um specified in ASME, EN(70um), DIN(70um), SI(78um)









Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit
