| Place of Origin: | China |
| Brand Name: | leyon |
| Certification: | FM/UL |
| Model Number: | figure number 90 |
| Minimum Order Quantity: | 100piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 200piece/carton |
| Delivery Time: | 25-35days |
| Payment Terms: | Western Union, L/C, T/T, MoneyGram, D/A, D/P |
| Supply Ability: | 10000piece/week |
| Head Shape: | Round | Surface: | Galvanized |
|---|---|---|---|
| Size: | 1/8",3/8",1/2",3/4",1",1 1/4" 1 1/2" ,2",2 1/2" 3",4",5",6" | Surface Treatment: | Hot/Cold-dipped Galvanized |
| Thread: | BSPP BSPT NPT | Model: | Fig No.90 |
| OEM: | Acceptable | Certificate: | BSI,ANAB,ISO9001,FM,UL |
| Sample: | Free | ||
| High Light: | malleable cast iron pipe fittings,iron plumbing fittings |
||

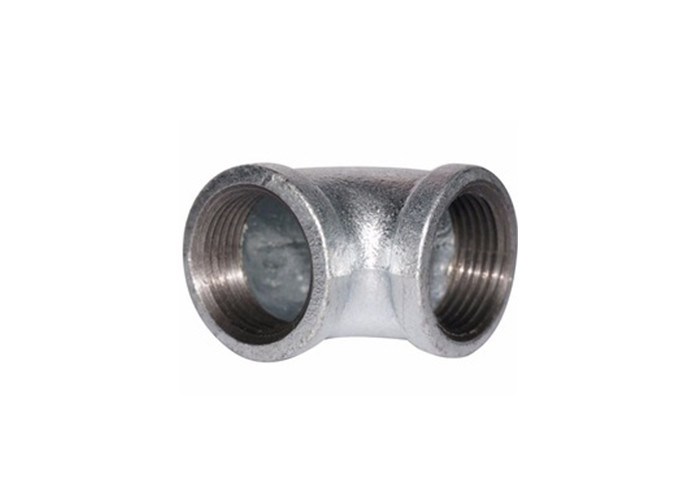

Product name: 1/2" malleable iron pipe fitting 90 ANSI elbow suitable for water
Size Range
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | 40 | |
| Dim. (mm) |
A | 17.5 | 20.6 | 24.1 | 28.5 | 33.3 | 38.1 | 44.5 | 49.3 |
| Size | Inch | 2 | 21/2 | 3 | 4 | 5 | 6 | 8 | |
| mm | 50 | 65 | 80 | 100 | 125 | 150 | 200 | ||
| Dim. (mm) |
A | 57.2 | 68.6 | 78.2 | 96.3 | 114.3 | 130.3 | 162 |
Detailed Product Description for malleable iron pipe fitting 90 ANSI elbow
Features:
1. The equipments from DISA Denmark, DJ AMF Japan, SINTOKOGIO Japan widely used in our malleable iron elbow product-line, ensures the stability of product quality.
2. The spectrometer of Oxford Instruments we bought for analyzing the quality of malleable iron samples.
3. we use high heat value natural gas annealing furnace, strictly control the annealing process, improve the physical properties of the materials
4. We buy and use dense ,high strength ,nonporous iron and steel scrap as raw material .Because that is basic point on excellent malleable pipe fittings.
5. Accurate threads are processed that comply with the precise standards, such as ASME, EU, BS, DIN, etc.
6. The common outlet size of pipe fittings is designed from 1/8”~8”.
7. To make sure the long time using life ,it is necessary to keep good toughness .
8. No any and hole discovered on surface
9. avg. thickness of zinc coating is higher than 86 um specified in ASME, EN(70um), DIN(70um), SI(78um)
Malleable iron pipe fitting 90 ANSI elbow in the following.
|
Material |
Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
|
Type |
Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
|
Application |
Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
|
Package |
Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
|
Delivery details
|
According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
We are the well-know manufacturer in the fitting industry with the most compete range of products, supplying malleable iron fittings, grooved fittings, valves, cast iron fittings, ductile iron fittings, steel pipe nipplesand couplings, stainless steel pipe fittings,ect.
