| Place of Origin: | China |
| Brand Name: | leyon |
| Certification: | FM/UL |
| Model Number: | figure number 90 |
| Minimum Order Quantity: | 100piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 200piece/carton |
| Delivery Time: | 25-35days |
| Payment Terms: | Western Union, L/C, T/T, MoneyGram |
| Supply Ability: | 10000piece/week |
| Application: | Steam, Air, Gas And Oil Pipes | Meterial: | Iron |
|---|---|---|---|
| Technics: | Casting | Size: | DN15-DN2400, 1/2"-96" |
| Standard: | ANSI, BS, DIN,EN | Surface Treatment: | Hot/Cold-dipped Galvanized |
| Thread: | ISO7/1, DIN2999,NPT | Type: | Elbow |
| Connection: | Male &female | ||
| High Light: | iron water pipe fittings,iron plumbing fittings |
||
Galvanized male female 90 deg weld elbow in malleable iron material
Products details of male and female 90 deg weld elbow
Malleable cast iron pipe elbow processing production adopt the equipments from DISA Denmark DJ AMF Japan ,SINTOKOGIO automatic production line to guarantee the quality of the products.
The cast iron samples are used to test its material’s quality by using spectrometer from Oxford Instruments.
Using high calorific value of natural gas annealing furnace,manipulate the annealing process rigorously,improve the physical properties of the materials.
The final casting fittings are made of close-grained, high strength, impeccable steel & plate scrap.
Since quality of the steel is the outset of excellent quality fittings.
Our accurate threads are complied with strict standard ,such as AME,EN,BS,DIN etc.The threads have an accurate structure,make sure that the thread length and straightness are easier to coincide with thread pipe.
The pipe fittings outlet size are from 1/8’’ to 8”
Favorable tenacity,long service life.
The surface is smooth without trachoma
The zinc average coating thickness is higher than the requirements of standard for ASME(86 um), EN(70um), DIN(70um) and SI(78um).
Size sheet of male and female 90 deg weld elbow
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | 40 | |
| Dim. (mm) |
A | 17.5 | 20.6 | 24.1 | 28.5 | 33.3 | 38.1 | 44.5 | 49.3 |
| Size | Inch | 2 | 21/2 | 3 | 4 | 5 | 6 | 8 | |
| mm | 50 | 65 | 80 | 100 | 125 | 150 | 200 | ||
| Dim. (mm) |
A | 57.2 | 68.6 | 78.2 | 96.3 | 114.3 | 130.3 | 162 |
Product information of male and female 90 deg weld elbow
|
Material |
Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
|
Type |
Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
|
Application |
Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
|
Package |
Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
|
Delivery details
|
According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |

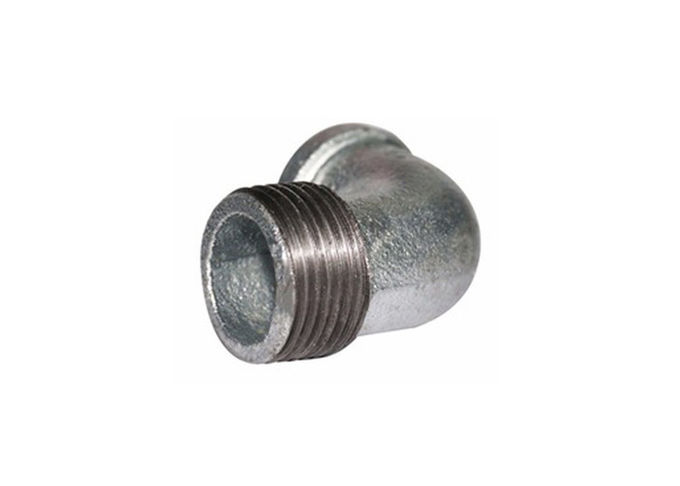

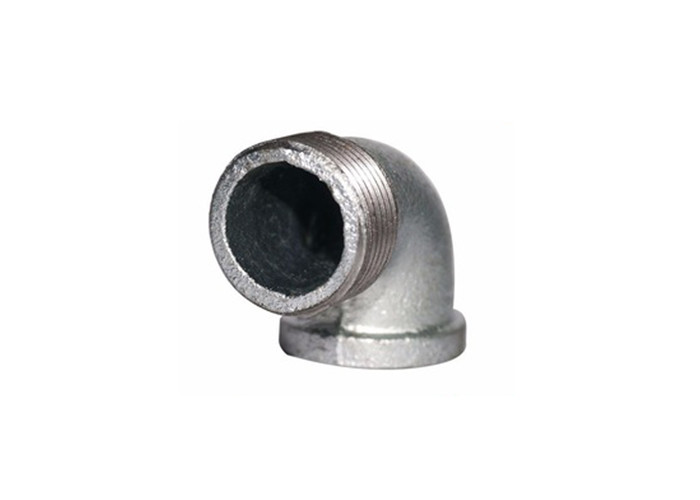

The picture of 90 male and female elbow
