| Place of Origin: | China |
| Brand Name: | leyon |
| Certification: | FM/UL |
| Model Number: | BSPT female tee |
| Minimum Order Quantity: | 100piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 200piece/carton |
| Delivery Time: | 25-35days |
| Payment Terms: | Western Union, L/C, T/T, D/P, D/A, MoneyGram |
| Supply Ability: | 10000piece/week |
| Surface Treatment: | Hot Dipped Galvanized And Cold Galvanized | Treaded: | ISO7/1, DIN2999,NPT |
|---|---|---|---|
| Standard: | 11/4 Inch BSPT Female Tee | Material: | Iron |
| Size: | 11/4 Inch | Dimensions: | 45 Mm |
| High Light: | reducing tee pipe fitting,iron plumbing fittings |
||
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
| Delivery details | According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |

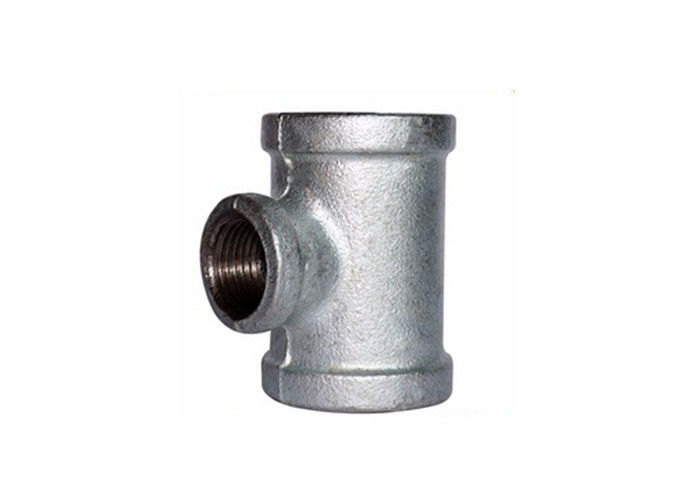

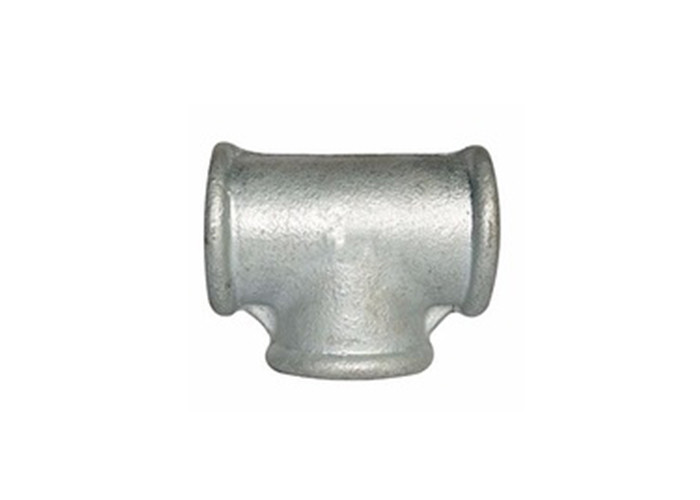

malleable iron tensile strength BSPT female tee for water and gas
In the past, many foundries produced malleable iron castings, however, with the development of ductile iron, most of malleable iron casting parts could be replaced by ductile iron. So, only few iron foundries in China are still producing this material.
1. What's kind of analyzer to use ?
We use spectroscopic analyzer to detect the composition of the sample material.
2. How they check the material's quality ?
Cast iorn pipe fittings materials’ quality are checked by spectrometer.
3. How Control the annealing process ?
Control the annealing process strictly,enhance the physical properties of the materials
4. Which kind of test ?
Make sure there is no leakage ,Every Malleable iron Tee must succeed in air tightness test.
5. What's the size range ?
Tee’s size ranging from 1/8 inch to 8 inch
6. Which kind of technology use for BSPT female tee?
For ensuring to control malleable iron tee pipe fittings, we use the most advanced metallurgical and
processing technology.
7.How about the quality ?
Good toughness with long working life.
Attribute definition list :
· Material: malleable iron
· Technics: casing
· Type: Malleable Iron Tee
· Connection:male&female
· size:1/8"-8"
· Standard: ANSI, BS, DIN
· Packing: wooden cases or as customers' demands
· surfacetreatment:painting galvaized or as customers' demands
| Size | Inch | 3x3/4 | 3x1 | 3x11/4 | 3x11/2 | 3x2 | 3x21/2 | 4x1 | 4x11/4 |
| mm | 80x20 | 80x25 | 80x32 | 80x40 | 80x50 | 80x65 | 100x25 | 100x32 | |
| Dim. (mm) | A | 52 | 51 | 55 | 58 | 64 | 72 | 56 | 60 |
| Size | Inch | 4x11/2 | 4x2 | 4x21/2 | 4x3 | ||||
| mm | 100x40 | 100x50 | 100x65 | 100x80 | |||||
| Dim. (mm) | A | 61 | 70 | 78 | 84 |
