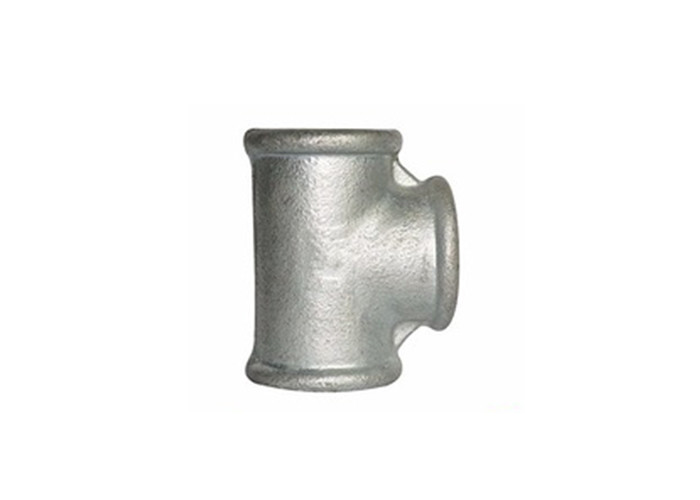

Name: BS Standard Black Malleable Iron Tee , Customized Size Female Pipe Tee 1.6Mpa
Brand: leyon
SKU: DIN standard black tees

Home Products Malleable Iron Tee

BS Standard Black Malleable Iron Tee , Customized Size Female Pipe Tee 1.6Mpa

Product Details:

Place of Origin:	China
Brand Name:	leyon
Certification:	FM/UL
Model Number:	DIN standard black tees

Payment & Shipping Terms:

Minimum Order Quantity:	100piece
Price:	Negotiable
Packaging Details:	200piece/carton
Delivery Time:	25-35days
Payment Terms:	Western Union, L/C, T/T, D/P, D/A, MoneyGram
Supply Ability:	10000piece/week

Contact Now

Detailed Product Description

Treaded:	ISO7/1, DIN2999,NPT	Connection:	Female
Standard:	ANSI, BS, DIN	Surface Treatment:	Hot Dipped Galvanized And Cold Galvanized
Size:	Customized Size	Item:	DIN Standard Black Tees
High Light:	black iron tee fitting , iron plumbing fittings

DIN standard black paint equal Malleable Iron Pipe Fitting Banded Tees

As a 30 years experienced DIN standard black tees manufactory, Leyon has been considered the quality of malleable iron cast as its basis condition to survive. So supplier try their best to produce best DIN standard black tees.

Parametric form :

Material	Malleable iron
Standard	Thread: ISO 7/1
Dimension	ISO 49, DIN 2950,EN10242
Chemical property	(C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property	Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure	2.5Mpa
Working pressure	1.6Mpa
Type	Beaded with ribs or banded with ribs
	Beaded without ribs or banded without ribs
	Round/square
Surface	Galvanized/ no galvanized
Color	White/black
Model	Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection	Male, Female
Shape	Equal, Reducing
Certificate	BSI,ANAB,ISO9001,FM,UL
Application	Suitable for pipe connect of steam, air, gas, oil and so on
Application	Buyer’s drawings or designs are available
Package	Cartons without pallet
	Cartons with pallet
	Double woven bags
	Or as buyer’s requirements
Delivery details	According to the quantities and specifications of each order
Delivery details	Normal delivery time is from 30 to 45 days after receiving the deposit

DIN standard black tees is made of advanced metallurgy and processing control.
Spectroscopic analyzer of malleable iron samples
The improving of material of physical properties rely on strict annealing process .
Accurate thread processing is based on international standard strictly.
The DIN standard black tees have outlets ranging from 1/8” through 8”

Comparison tables :

Size	Inch	1/8	1/4	3/8	1/2	3/4	1	11/4
Size	mm	6	8	10	15	20	25	32
Dim. (mm)	A	19	21	25	28	33	38	45
Size	Inch	3/8X1/4	1/2X1/4	1/2X3/8	3/4X1/4	3/4X1/8
Size	mm	10X8	15X8	15x10	20x8	20X10
Dim. (mm)	A	23	24	26	26	28

Size	Inch	3/4x1/2	1x1/4	1x3/8	1x1/2	1x3/4
Size	mm	20x15	25x8	25x10	25x15	25x20
Dim. (mm)	A	30	28	30	32	35
Size	Inch	11/4x3/8	11/4x1/2	11/4x3/4	11/4x1	11/2x1/2
Size	mm	32x10	32x15	32x20	32x25	40x15
Dim. (mm)	A	32	34	36	40	36

Size	Inch	11/2x3/4	11/2x1	11/2x11/4	2x1/2	2x3/4
Size	mm	40x20	40x25	40x32	50x15	50x20
Dim. (mm)	A	38	42	46	38	40
Size	Inch	2x1	2x11/4	2x11/2	21/2x1/2	21/2x3/4
Size	mm	50x25	50x32	50x40	65x15	65x20
Dim. (mm)	A	44	48	52	46	49

Size	Inch	3x3/4	3x1	3x11/4	3x11/2	3x2	3x21/2
Size	mm	80x20	80x25	80x32	80x40	80x50	80x65
Dim. (mm)	A	52	51	55	58	64	72
Size	Inch	4x1	4x11/4	4x11/2	4x2	4x21/2	3x21/2
Size	mm	100x25	100x32	100x40	100x50	100x65	80x65
Dim. (mm)	A	56	60	61	70	78	76

Size	Inch	3x8x1/2x3/8	1/2x3/4x1/2	1/2x1x1/2	3/4x1x3/4	1x11/4x1
Size	mm	10x15x10	15x20x15	15x25x15	20x25x20	25x32x25
Dim. (mm)	A	26	31	34	36	42
Size	Inch	1x11/2x1	11/4x11/2x11/4	11/4x2x11/4	11/2x2x11/2
Size	mm	25x40x25	32x40x32	32x50x32	40x50x40
Dim. (mm)	A	46	48	54	55

Size	Inch	11/2x3/4	11/2x1	11/2x11/4	2x1/2	2x3/4
Size	mm	40x20	40x25	40x32	50x15	50x20
Dim. (mm)	A	38	42	46	38	40
Size	Inch	2x1	2x11/4	2x11/2	21/2x1/2	21/2x3/4
Size	mm	50x25	50x32	50x40	65x15	65x20
Dim. (mm)	A	44	48	52	46	49
