| Place of Origin: | China |
| Brand Name: | leyon |
| Certification: | FM/UL |
| Model Number: | 90 Degree Elbow Decorative Pipe Fittings |
| Minimum Order Quantity: | 100piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 200piece/carton |
| Delivery Time: | 25-35days |
| Payment Terms: | Western Union, L/C, T/T, MoneyGram |
| Supply Ability: | 10000piece/week |
| Color: | Galvanized & Black | Meterial: | Malleable Iron |
|---|---|---|---|
| Technics: | Casting | Standard: | ANSI,BS,DIN |
| Surface Treatment: | Hot Galvanized | Head Code: | Square |
| Type: | 90 Degree Elbow Decorative Pipe Fittings | ||
| High Light: | iron water pipe fittings,iron plumbing fittings |
||

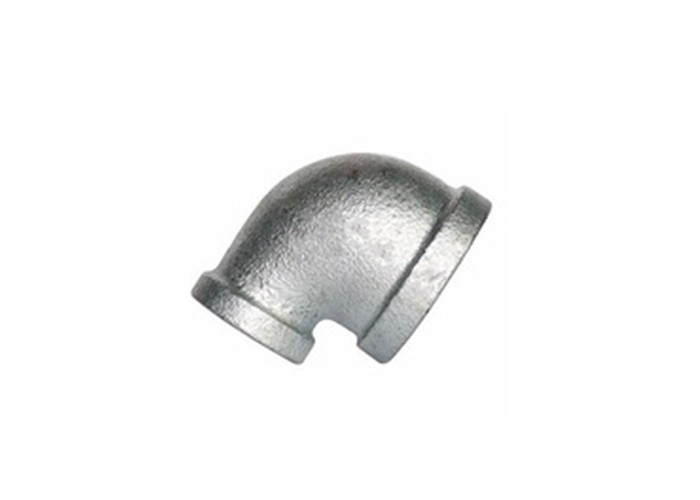

Detail information of 90 Degree Elbow Decorative Pipe Fittings
State of the art equipments of 90 Degree Elbow Decorative Pipe Fittings with automatic production line, making high-quality products efficiently.
Using high calorific value of natural gas annealing furnace,manipulate the annealing process rigorously,improve the physical properties of the materials.
Our accurate threads are complied with strict standard ,such as AME,EN,BS,DIN etc.The threads of 90 Degree Elbow Decorative Pipe Fittings have an accurate structure,make sure that the thread length and straightness are easier to coincide with thread pipe.
The common outlet size is designed from 1/8”~8”.
Excel of 90 Degree Elbow Decorative Pipe Fittings
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
|
Delivery details
|
According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
The usage of malleable cast iron pipe fitting
Graphical represented of data of 90 Degree Elbow Decorative Pipe Fittings
| Size | Inch | 3/8X1/4 | 1/2x1/4 | 1/2x3/8 | 3/4x3/8 | 3/4x1/2 |
| mm | 10X8 | 15X8 | 15X10 | 20X10 | 20X15 | |
| Dim. (mm) |
A | 23 | 26 | 26 | 28 | 30 |
| B | 23 | 26 | 26 | 28 | 31 | |
| Size | Inch | 1x1/2 | 1x3/4 | 11/4x1/2 | 11/4x3/4 | 11/4x1 |
| mm | 25X15 | 25X20 | 32X15 | 32X20 | 32x25 | |
| Dim. (mm) |
A | 32 | 35 | 34 | 36 | 40 |
| B | 34 | 36 | 38 | 41 | 42 |
