| Place of Origin: | China |
| Brand Name: | leyon |
| Certification: | FM/UL |
| Model Number: | Malleable Iron Tees |
| Minimum Order Quantity: | 100piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 200piece/carton |
| Delivery Time: | 25-35days |
| Payment Terms: | Western Union, L/C, T/T, D/P, D/A, MoneyGram |
| Supply Ability: | 10000piece/week |
| Material: | Iron | Item: | 2 Inch Malleable Iron Tees |
|---|---|---|---|
| Application: | Steam, Air, Gas And Oil Pipes | Connection: | Female Forged Tee Pipe Fitting |
| Surface Treatment: | Hot Dipped Galvanized And Cold Galvanized | Shape: | Equal |
| Size: | 2 Inch | Dimensions: | 50 Mm |
| High Light: | reducing tee pipe fitting,iron plumbing fittings |
||

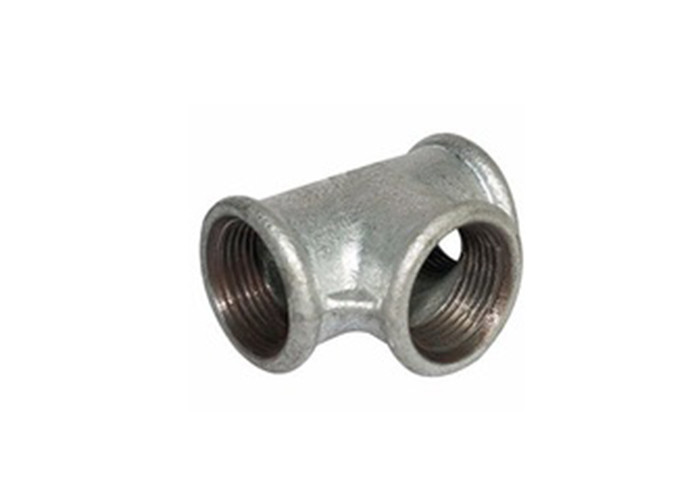

Summary of Malleable Iron Tees
Leyon is 30 years old , devote itself to offering Malleable Iron Tees solutions for global guests in Malleable Iron Tees transportation and storage field. Depend upon the collaborationswith world top Malleable Iron Tees manufactures on high-end Malleable Iron Tees products application, Leyon could provide professional Malleable Iron Tees solutions for uniqueprojects amid special construction place.
Instruction of Malleable Iron Tees :
· Material: malleable iron
· Technics: casing
· Type: Malleable Iron Tees
· Connection:male&female
· Head Shape: Equal
· Code: Round
· size:1/8"-8"
· Standard: ANSI, BS, DIN
· Packing: wooden cases or as customers' demands
· surfacetreatment:painting galvaized or as customers' demands
Correlation table of Malleable Iron Tees
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | 40 | |
| Dim. (mm) |
A | 17.5 | 20.6 | 24.1 | 28.5 | 33.3 | 38.1 | 44.5 | 49.3 |
| Size | Inch | 2 | 21/2 | 3 | 4 | 5 | 6 | 8 | |
| mm | 50 | 65 | 80 | 100 | 125 | 150 | 200 | ||
| Dim. (mm) |
A | 57.2 | 68.6 | 78.2 | 96.3 | 114.3 | 130.3 | 162 |
1. International standard of Malleable Iron Tees:
Accurate thread processing of Malleable Iron Tees are based on international standard strictly.
2. Material of pipe tee joints equal tee formula :
The Malleable Iron Tees have outlets ranging from 1/8” through 8”.
3.Quality of Malleable Iron Tees :
Good toughness with long working life.
4. How control the quality of Malleable Iron Tees :
Malleable Iron Tees are made of advanced metallurgy and processing control.
5.How to improve the material’s physical properties of Malleable Iron Tees:
We control the annealing process very strictly, to improve the material’s physical properties.
Map for Malleable Iron Tees
|
Material |
Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
|
Type |
Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
|
Application |
Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
|
Package |
Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
|
Delivery details
|
According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
