| Place of Origin: | China |
| Brand Name: | leyon |
| Certification: | FM/UL |

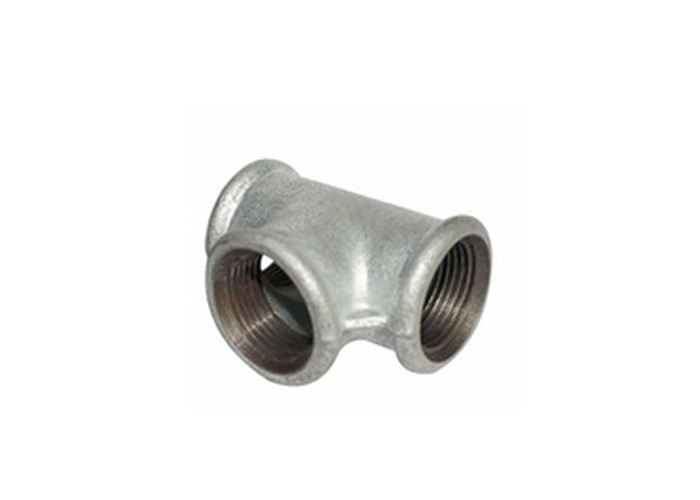

| Model Number: | Malleable Iron Pipe Fitting Tees 90 Degree |
| Minimum Order Quantity: | 100piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 200piece/carton |
| Delivery Time: | 25-35days |
| Payment Terms: | Western Union, L/C, T/T, D/P, D/A, MoneyGram |
| Supply Ability: | 10000piece/week |
| Material: | Iron | Item: | 11/4 Inch Malleable Iron Pipe Fitting Tees 90 Degree |
|---|---|---|---|
| Specification: | Elbow, Socket, Tee, Union, Bushing, Plug | Connection: | Female Forged Tee Pipe Fitting |
| Technology: | Advanced Metallurgical And Processing | Treaded: | ISO7/1, DIN2999,NPT |
| Size: | 11/4 Inch | Dimensions: | 8 Mm |
| High Light: | black iron tee fitting,reducing tee pipe fitting |
||
Look up table of Malleable Iron Pipe Fitting Tees 90 Degree
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
|
Delivery details
|
According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
Synoptic table of Malleable Iron Pipe Fitting Tees 90 Degree
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | 40 | |
| Dim. (mm) |
A | 17.5 | 20.6 | 24.1 | 28.5 | 33.3 | 38.1 | 44.5 | 49.3 |
| Size | Inch | 2 | 21/2 | 3 | 4 | 5 | 6 | 8 | |
| mm | 50 | 65 | 80 | 100 | 125 | 150 | 200 | ||
| Dim. (mm) |
A | 57.2 | 68.6 | 78.2 | 96.3 | 114.3 | 130.3 | 162 |
How about the Surface processing for Malleable Iron Pipe Fitting Tees 90 Degree :
All pipe fittings need packed then placed into the box into the kiln annealing.After annealing , we let dedicated person make destructive testing to mechanical behavior of products , then let someone else make flattening test to products by using hydraulic universal tester , in order to check the toughness of the products , to make sure whether they comply with standard.
