| Place of Origin: | China |
| Brand Name: | leyon |
| Certification: | FM/UL |

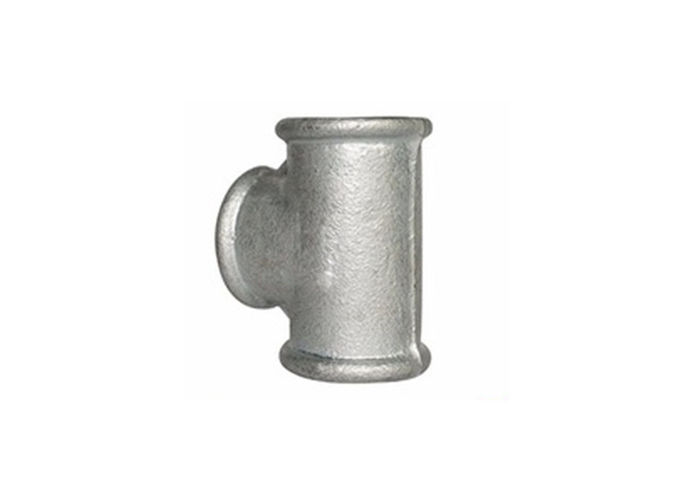

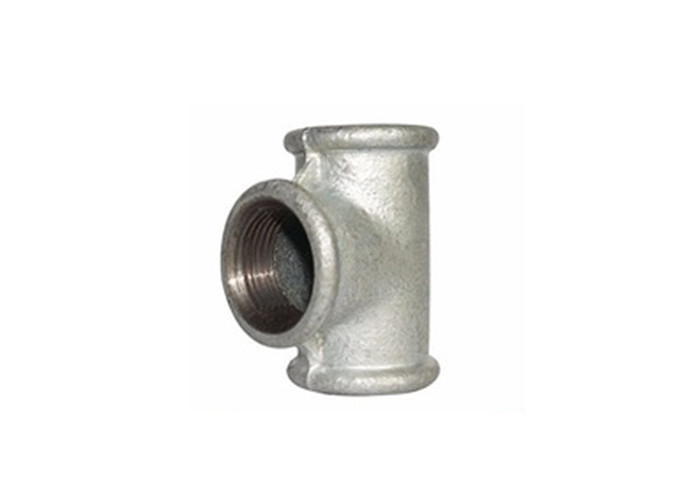

| Model Number: | 90 Degree Banded Tees |
| Minimum Order Quantity: | 100piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 200piece/carton |
| Delivery Time: | 25-35days |
| Payment Terms: | Western Union, L/C, T/T, D/P, D/A, MoneyGram |
| Supply Ability: | 10000piece/week |
| Specification: | Elbow, Socket, Tee, Union, Bushing, Plug | Item: | 11/4x3/8 Inch 90 Degree Banded Tees |
|---|---|---|---|
| Application: | Steam, Air, Gas And Oil Pipes | Technics: | Sophisticated Metallurgical |
| Treaded: | ISO7/1, DIN2999,NPT | Size: | 11/4x3/8 Inch |
| Dimensions: | 32 Mm | ||
| High Light: | black iron tee fitting,iron plumbing fittings |
||
We have 26 steps of process during producing the products ,over 6 steps of checking .
Firstly : Checking the scrap steel , the wP content should not be very high , the wP in malleable cast iron
should be lower than 0.1% . If it is very high , the malleable cast iron will break easily .
Secondly: Examing roughcast
Thirdly: Checked the cooked rough
Fourth: Destructive testing
Fifth: hot galvanized testing
Sixth: check the products
We do this just to make sure the quality of the products are good .
Blast-Furnace smelting + electric furnace adjustment duplex smelting technology, 48 hours – 3 sections –electric annealing technology, comprehensively ensure our products’ quality to be the best .
Take “six check + two inspect +one examine” measures, using Germany made FOUNDRY-MASTER Xline to check each pack of liquid iron’s chemical composition , ensure low defect rate and stable product quality .
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | |
| Dim. (mm) |
A | 19 | 21 | 25 | 28 | 33 | 38 | 45 |
| Size | Inch | 3/8X1/4 | 1/2X1/4 | 1/2X3/8 | 3/4X1/4 | 3/4X1/8 | ||
| mm | 10X8 | 15X8 | 15x10 | 20x8 | 20X10 | |||
| Dim. (mm) |
A | 23 | 24 | 26 | 26 | 28 |
| Size | Inch | 3/4x1/2 | 1x1/4 | 1x3/8 | 1x1/2 | 1x3/4 |
| mm | 20x15 | 25x8 | 25x10 | 25x15 | 25x20 | |
| Dim. (mm) |
A | 30 | 28 | 30 | 32 | 35 |
| Size | Inch | 11/4x3/8 | 11/4x1/2 | 11/4x3/4 | 11/4x1 | 11/2x1/2 |
| mm | 32x10 | 32x15 | 32x20 | 32x25 | 40x15 | |
| Dim. (mm) |
A | 32 | 34 | 36 | 40 | 36 |
| Size | Inch | 11/2x3/4 | 11/2x1 | 11/2x11/4 | 2x1/2 | 2x3/4 |
| mm | 40x20 | 40x25 | 40x32 | 50x15 | 50x20 | |
| Dim. (mm) |
A | 38 | 42 | 46 | 38 | 40 |
| Size | Inch | 2x1 | 2x11/4 | 2x11/2 | 21/2x1/2 | 21/2x3/4 |
| mm | 50x25 | 50x32 | 50x40 | 65x15 | 65x20 | |
| Dim. (mm) |
A | 44 | 48 | 52 | 46 | 49 |
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
|
Delivery details
|
According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
