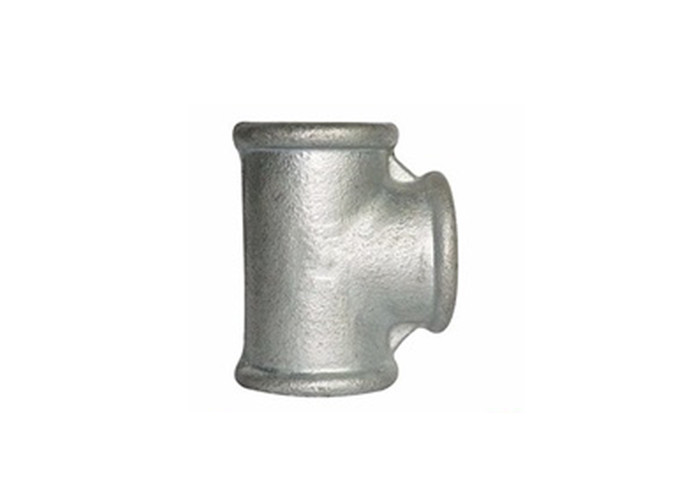

Customizable Malleable Iron Tee 3 4 Inch Pipe Connector Round / Square Type

Customizable Malleable Iron Tee 3 4 Inch Pipe Connector Round / Square Type

    • Customizable Malleable Iron Tee 3 4 Inch Pipe Connector Round / Square Type
    • Customizable Malleable Iron Tee 3 4 Inch Pipe Connector Round / Square Type
    • Customizable Malleable Iron Tee 3 4 Inch Pipe Connector Round / Square Type
  • Customizable Malleable Iron Tee 3 4 Inch Pipe Connector Round / Square Type

    Product Details:

    Place of Origin: China
    Brand Name: leyon
    Certification: FM/UL
    Model Number: Black Paint Equal Tees

    Payment & Shipping Terms:

    Minimum Order Quantity: 100piece
    Price: Negotiable
    Packaging Details: 200piece/carton
    Delivery Time: 25-35days
    Payment Terms: Western Union, L/C, T/T, D/P, D/A, MoneyGram
    Supply Ability: 10000piece/week
    Contact Now
    Detailed Product Description
    Specification: Elbow, Socket, Tee, Union, Bushing, Plug Connection: Female
    Standard: ANSI, BS, DIN Technology: Advanced Metallurgical And Processing
    Size: 11/2x1/2 Inch Item: 11/2x1/2 Inch Black Paint Equal Tees

    Malleable Fittings Beaded Equal 90 Degree Black Paint Equal Tees



    Malleable cast iron is produced from white cast iron, which is made from hot liquid iron with certain chemical components. The white cast iron needs to be treated by malleablizing, such as graphitizing or oxidation and decarbonization, then its metallographic structures or chemical components will be changed, so can become into malleable cast iron.



    Measurement chart
    Material Malleable iron
    Standard Thread: ISO 7/1
    Dimension ISO 49, DIN 2950,EN10242
    Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
    Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
    Testing pressure 2.5Mpa
    Working pressure 1.6Mpa
    Type Beaded with ribs or banded with ribs
    Beaded without ribs or banded without ribs
    Round/square
    Surface Galvanized/ no galvanized
    Color White/black
    Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
    Connection Male, Female
    Shape Equal, Reducing
    Certificate BSI,ANAB,ISO9001,FM,UL
    Application Suitable for pipe connect of steam, air, gas, oil and so on
    Buyer’s drawings or designs are available
    Package Cartons without pallet
    Cartons with pallet
    Double woven bags
    Or as buyer’s requirements
    Delivery details

    According to the quantities and specifications of each order
    Normal delivery time is from 30 to 45 days after receiving the deposit






    There are three kind of malleable cast iron : Black heart malleable cast iron (KTH) , Pearlite malleable cast iron (KTZ) and White heart malleable cast iron (KTB) .



    The material of our products are KTH , the national standard of Material grade need to arrive to KTH300-06 , the standard of our products is KTH330-08 . the KTH stand for Black heart malleable cast iron , the 300 , 330 , 350 is for extending and 06,08,12 is for stretching. All this is stand for toughness .




    Correlation table


    Size Inch 3/4x1/2 1x1/4 1x3/8 1x1/2 1x3/4
    mm 20x15 25x8 25x10 25x15 25x20
    Dim.
    (mm)
    A 30 28 30 32 35
    Size Inch 11/4x3/8 11/4x1/2 11/4x3/4 11/4x1 11/2x1/2
    mm 32x10 32x15 32x20 32x25 40x15
    Dim.
    (mm)
    A 32 34 36 40 36



    Size Inch 11/2x3/4 11/2x1 11/2x11/4 2x1/2 2x3/4
    mm 40x20 40x25 40x32 50x15 50x20
    Dim.
    (mm)
    A 38 42 46 38 40
    Size Inch 2x1 2x11/4 2x11/2 21/2x1/2 21/2x3/4
    mm 50x25 50x32 50x40 65x15 65x20
    Dim.
    (mm)
    A 44 48 52 46 49



    Size Inch 3x3/4 3x1 3x11/4 3x11/2 3x2 3x21/2
    mm 80x20 80x25 80x32 80x40 80x50 80x65
    Dim.
    (mm)
    A 52 51 55 58 64 72
    Size Inch 4x1 4x11/4 4x11/2 4x2 4x21/2 3x21/2
    mm 100x25 100x32 100x40 100x50 100x65 80x65
    Dim.
    (mm)
    A 56 60 61 70 78 76



    List of data of Tees Banded Malleable Fittings :

    •  Substance: malleable iron
    •  Technics: casing
    •  Type: Black Paint Equal Tees
    •  Connection:male&female
    •  size:1/8"-8"
    •  Standard: ANSI, BS, DIN
    •  Packing: wooden cases or as customers' demands
    •  surfacetreatment:painting galvaized or as customers' demands

     Customizable Malleable Iron Tee 3 4 Inch Pipe Connector Round / Square Type
