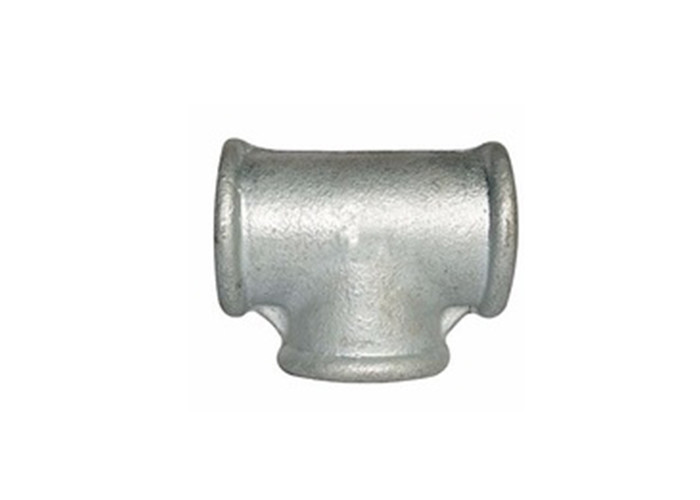

3x3/4 Inch Malleable Iron Pipe Fittings Black Iron Reducing Tee Round / Square Type

3x3/4 Inch Malleable Iron Pipe Fittings Black Iron Reducing Tee Round / Square Type

    • 3x3/4 Inch Malleable Iron Pipe Fittings Black Iron Reducing Tee Round / Square Type
    • 3x3/4 Inch Malleable Iron Pipe Fittings Black Iron Reducing Tee Round / Square Type
    • 3x3/4 Inch Malleable Iron Pipe Fittings Black Iron Reducing Tee Round / Square Type
  • 3x3/4 Inch Malleable Iron Pipe Fittings Black Iron Reducing Tee Round / Square Type

    Product Details:

    Place of Origin: China
    Brand Name: leyon
    Certification: FM/UL
    Model Number: High Quality Malleable Fitting Equal Tees

    Payment & Shipping Terms:

    Minimum Order Quantity: 100piece
    Price: Negotiable
    Packaging Details: 200piece/carton
    Delivery Time: 25-35days
    Payment Terms: Western Union, L/C, T/T, D/P, D/A, MoneyGram
    Supply Ability: 10000piece/week
    Contact Now
    Detailed Product Description
    Treaded: ISO7/1, DIN2999,NPT Connection: Female
    Standard: 3x3/4 Inch High Quality Malleable Fitting Equal Tees Surface Treatment: Hot Dipped Galvanized And Cold Galvanized
    Size: 3x3/4 Inch Material: Iron
    High Light:

    reducing tee pipe fitting

    ,

    iron plumbing fittings

    Summary of High Quality Malleable Fitting Equal Tees



    Leyon is 30 years old , bend itself to supply experience and knowledge to provide High Quality Malleable Fitting Equal Tees solutions for High Quality Malleable Fitting Equal Tees customers,in different places in High Quality Malleable Fitting Equal Tees domain. Leyon could offer speciality High Quality Malleable Fitting Equal Tees help for outstanding projects amid special construction surroundings just depend upon the consociation with world top High Quality Malleable Fitting Equal Tees makers on high-end High Quality Malleable Fitting Equal Tees products application.


    Parametric form of High Quality Malleable Fitting Equal Tees
    Material Malleable iron
    Standard Thread: ISO 7/1
    Dimension ISO 49, DIN 2950,EN10242
    Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
    Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
    Testing pressure 2.5Mpa
    Working pressure 1.6Mpa
    Type Beaded with ribs or banded with ribs
    Beaded without ribs or banded without ribs
    Round/square
    Surface Galvanized/ no galvanized
    Color White/black
    Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
    Connection Male, Female
    Shape Equal, Reducing
    Certificate BSI,ANAB,ISO9001,FM,UL
    Application Suitable for pipe connect of steam, air, gas, oil and so on
    Buyer’s drawings or designs are available
    Package Cartons without pallet
    Cartons with pallet
    Double woven bags
    Or as buyer’s requirements
    Delivery details

    According to the quantities and specifications of each order
    Normal delivery time is from 30 to 45 days after receiving the deposit


    Top point of  High Quality Malleable Fitting Equal Tees

    • The High Quality Malleable Fitting Equal Tees have outlets ranging from 1/8” through 8”.


    • High Quality Malleable Fitting Equal Tees have Perfect toughness create long using life.


    • Smooth surface of High Quality Malleable Fitting Equal Tees without any sand hole.


    • Hot dip galvanized process of High Quality Malleable Fitting Equal Tees is according to ASME, EN, BS, DIN and other international standards.


    • Our qualified High Quality Malleable Fitting Equal Tees are made by most advanced metallurgical technology high precision machining .

    Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4
    mm 6 8 10 15 20 25 32
    Dim.
    (mm)
    A 19 21 25 28 33 38 45
    Size Inch 3/8X1/4 1/2X1/4 1/2X3/8 3/4X1/4 3/4X1/8
    mm 10X8 15X8 15x10 20x8 20X10
    Dim.
    (mm)
    A 23 24 26 26 28



    Size Inch 3/4x1/2 1x1/4 1x3/8 1x1/2 1x3/4
    mm 20x15 25x8 25x10 25x15 25x20
    Dim.
    (mm)
    A 30 28 30 32 35
    Size Inch 11/4x3/8 11/4x1/2 11/4x3/4 11/4x1 11/2x1/2
    mm 32x10 32x15 32x20 32x25 40x15
    Dim.
    (mm)
    A 32 34 36 40 36



    Size Inch 11/2x3/4 11/2x1 11/2x11/4 2x1/2 2x3/4
    mm 40x20 40x25 40x32 50x15 50x20
    Dim.
    (mm)
    A 38 42 46 38 40
    Size Inch 2x1 2x11/4 2x11/2 21/2x1/2 21/2x3/4
    mm 50x25 50x32 50x40 65x15 65x20
    Dim.
    (mm)
    A 44 48 52 46 49



    Size Inch 3x3/4 3x1 3x11/4 3x11/2 3x2 3x21/2
    mm 80x20 80x25 80x32 80x40 80x50 80x65
    Dim.
    (mm)
    A 52 51 55 58 64 72
    Size Inch 4x1 4x11/4 4x11/2 4x2 4x21/2 3x21/2
    mm 100x25 100x32 100x40 100x50 100x65 80x65
    Dim.
    (mm)
    A 56 60 61 70 78 76

    Characteristic of High Quality Malleable Fitting Equal Tees :

    • Material: malleable iron
    • Technics: casing
    • Type: High Quality Malleable Fitting Equal Tees
    • Connection:male&female
    • size:1/8"-8"
    • Standard: ANSI, BS, DIN
    • Packing: wooden cases or as customers' demands
    • surfacetreatment:painting galvaized or as customers' demands

    3x3/4 Inch Malleable Iron Pipe Fittings Black Iron Reducing Tee Round / Square Type 0
