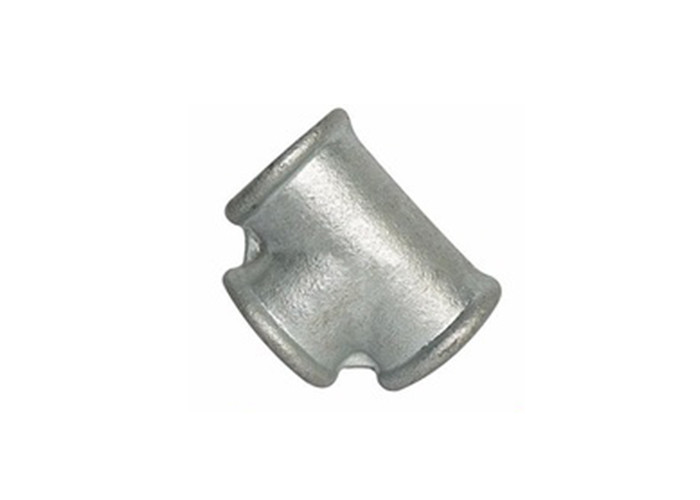

21/2x1/2 Inch 45 Degree Pipe Tee Boiler Pipe Fittings For Household Fire Resistant

21/2x1/2 Inch 45 Degree Pipe Tee Boiler Pipe Fittings For Household Fire Resistant

    • 21/2x1/2 Inch 45 Degree Pipe Tee Boiler Pipe Fittings For Household Fire Resistant
    • 21/2x1/2 Inch 45 Degree Pipe Tee Boiler Pipe Fittings For Household Fire Resistant
    • 21/2x1/2 Inch 45 Degree Pipe Tee Boiler Pipe Fittings For Household Fire Resistant
  • 21/2x1/2 Inch 45 Degree Pipe Tee Boiler Pipe Fittings For Household Fire Resistant

    Product Details:

    Place of Origin: China
    Brand Name: leyon
    Certification: FM/UL
    Model Number: 45 Degree Elbows Tees And Fittings

    Payment & Shipping Terms:

    Minimum Order Quantity: 100piece
    Price: Negotiable
    Packaging Details: 200piece/carton
    Delivery Time: 25-35days
    Payment Terms: Western Union, L/C, T/T, D/P, D/A, MoneyGram
    Supply Ability: 10000piece/week
    Contact Now
    Detailed Product Description
    Dim: 46 Mm Connection: Female
    Standard: 21/2x1/2 Inch 45 Degree Elbows Tees And Fittings Surface Treatment: Hot Dipped Galvanized And Cold Galvanized
    Application: Steam, Air, Gas And Oil Pipes Technics: Casting
    High Light:

    black iron tee fitting

    ,

    reducing tee pipe fitting

    21/2x1/2 inch Cheap Banded Equal 45 Degree Elbows Tees And Fittings



    White heart malleable cast iron is seldom used because of its long malleablizing process.

    The good physical properties of malleable cast iron is because of its microstructures. Its inside graphite is existed as the regiment floe, so the graphite has lower tearing function to the iron body. The following is the metallographical photo to the micro structures of graphite in malleable cast iron.



    In the past, many foundries produced malleable iron castings, however, with the development of ductile iron, most of malleable iron casting parts could be replaced by ductile iron. So, only few iron foundries in China are still producing this material.


    New chart :
    Material Malleable iron
    Standard Thread: ISO 7/1
    Dimension ISO 49, DIN 2950,EN10242
    Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
    Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
    Testing pressure 2.5Mpa
    Working pressure 1.6Mpa
    Type Beaded with ribs or banded with ribs
    Beaded without ribs or banded without ribs
    Round/square
    Surface Galvanized/ no galvanized
    Color White/black
    Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
    Connection Male, Female
    Shape Equal, Reducing
    Certificate BSI,ANAB,ISO9001,FM,UL
    Application Suitable for pipe connect of steam, air, gas, oil and so on
    Buyer’s drawings or designs are available
    Package Cartons without pallet
    Cartons with pallet
    Double woven bags
    Or as buyer’s requirements
    Delivery details

    According to the quantities and specifications of each order
    Normal delivery time is from 30 to 45 days after receiving the deposit




    Size Inch 3x8x1/2x3/8 1/2x3/4x1/2 1/2x1x1/2 3/4x1x3/4 1x11/4x1
    mm 10x15x10 15x20x15 15x25x15 20x25x20 25x32x25
    Dim.
    (mm)
    A 26 31 34 36 42
    Size Inch 1x11/2x1 11/4x11/2x11/4 11/4x2x11/4 11/2x2x11/2
    mm 25x40x25 32x40x32 32x50x32 40x50x40
    Dim.
    (mm)
    A 46 48 54 55



    Size Inch 11/2x3/4 11/2x1 11/2x11/4 2x1/2 2x3/4
    mm 40x20 40x25 40x32 50x15 50x20
    Dim.
    (mm)
    A 38 42 46 38 40
    Size Inch 2x1 2x11/4 2x11/2 21/2x1/2 21/2x3/4
    mm 50x25 50x32 50x40 65x15 65x20
    Dim.
    (mm)
    A 44 48 52 46 49


    Measurement list :

    •  Material: malleable iron
    •  Technics: casing
    •  Type: 45 Degree Elbows Tees And Fittings
    •  Connection:male&female
    •  size:1/8"-8"
    •  Standard: ANSI, BS, DIN
    •  Packing: wooden cases or as customers' demands
    •  surfacetreatment:painting galvaized or as customers' demands

     21/2x1/2 Inch 45 Degree Pipe Tee Boiler Pipe Fittings For Household Fire Resistant 0
