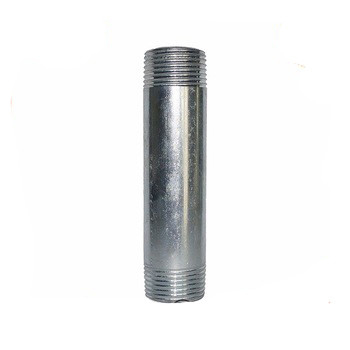

Elbow Carbon Steel Nipple Forged Technics , Carbon Steel Socket Weld Fittings Fireproof

Elbow Carbon Steel Nipple Forged Technics , Carbon Steel Socket Weld Fittings Fireproof

    • Elbow Carbon Steel Nipple Forged Technics , Carbon Steel Socket Weld Fittings Fireproof
    • Elbow Carbon Steel Nipple Forged Technics , Carbon Steel Socket Weld Fittings Fireproof
    • Elbow Carbon Steel Nipple Forged Technics , Carbon Steel Socket Weld Fittings Fireproof
  • Elbow Carbon Steel Nipple Forged Technics , Carbon Steel Socket Weld Fittings Fireproof

    Product Details:

    Place of Origin: China
    Brand Name: leyon
    Certification: ISO9001
    Model Number: forged 09

    Payment & Shipping Terms:

    Minimum Order Quantity: 100piece
    Price: Negotiable
    Packaging Details: 200piece/carton
    Delivery Time: 25-35days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 10000piece/week
    Contact Now
    Detailed Product Description
    Type: Elbow, Tee, Cross, Coupling, Union Material: Carbon Steel
    Technics: Forged Connection: Steel Merchant Coupling
    Size: As Per Your Need Product Name: Thread Pipe Fittings
    Item: Carbon Steel Pipe Fittings

    npt thread galvanized forged carbon steel pipe fittings socket merchant coupling



    Product information

    • Strictly control the purchase of raw materials, 100% inspection of the chemical composition and mechanical properties of the materials;
    • Blanking material in strict accordance with the standard or drawing check, check mark is complete right. No marking materials shall not be used;
    • After first coupling processing thread, using qualified measuring tool measuring the size of the thread, to ensure that conform to the requirements of the standard or drawing for mass production;
    • Can NPT, BSPT thread machining, the surface can be roll sand or blasting;
    • coupling surface is smooth, without scale. Scratches depth < 5% wall thick, must not have more than 0.5 mm scar, fold, cut, dissection defect. Depth of more than 10% of nominal wall thickness 1.5 mm or greater than mechanical scratches and pits shall be removed.
    • Company information
    • We mainly produces malleable iron, stainless steel and carbon steel products, such as: steel pipe joint, hexagon head, outside hexagonal tooth coupling, pipe joint, elbow, tee, nuts and other accessories. Professional production and processing company can also according to the requirements of customers design and production of other types of the products.

    • Standards

      1. AMERICAN STANDARD : ASTM A733

      PIPE: ASTM A733 / ASTM A53/ ASTM

      THREADS: ANST B1.20.1

      2. BRITISH STANDARD : BS EN10241

      PIPE: BS1387

      THREADS: IIS07/1

      3. DIN STANDARD : DIN2982

      PIPE: DIN2440

      THREADS: DIN2999



    format for carbon steel pipe fittings socket merchant coupling

    O.D. 1/8”-6”
    Length 3/4”-24”; 19mm-500mm; Or as per customer’s request
    Thickness SCH10 SCH20 SCH40 SCH80 SCH160
    Surface Hot Dipped Galvanized, Electro Galvanized, Natural finished, Chemical black
    Threads DIN, BS, NPT, Metric, BSPT, BSP, NPS ( DIN 2999, ANSI B1.20.1)
    Dimension BS EN10241, ASTM A733, DIN2982
    Type Close Nipple, Short Nipple, Shoulder nipple, Long Nipple, Running Nipple, Barrel Nipple etc
    Usage Convey Water, Plumbing,Machinery ,Oil, Gas, Steam and so on
    Mechanical Properties Tensile Strength ≥ 320N/mm2
    Yield Strength≥ 195N/mm2
    Elongation ≥20%
    Hydraulic Test Working Pressure: Max 1.5MPa
    Test Pressure Max 2.5MPa
    Temperature: -20 ~ 120 °c

    Elbow Carbon Steel Nipple Forged Technics , Carbon Steel Socket Weld Fittings Fireproof

    Draft for carbon steel pipe fittings socket merchant coupling

    Elbow Carbon Steel Nipple Forged Technics , Carbon Steel Socket Weld Fittings FireproofElbow Carbon Steel Nipple Forged Technics , Carbon Steel Socket Weld Fittings Fireproof
