Fireproof Toilet Pipe Fitting Cross 4 Way Pipe Connector ISO 7/1 Standard

China Fireproof Toilet Pipe Fitting Cross 4 Way Pipe Connector ISO 7/1 Standard supplier
Fireproof Toilet Pipe Fitting Cross 4 Way Pipe Connector ISO 7/1 Standard supplier Fireproof Toilet Pipe Fitting Cross 4 Way Pipe Connector ISO 7/1 Standard supplier Fireproof Toilet Pipe Fitting Cross 4 Way Pipe Connector ISO 7/1 Standard supplier

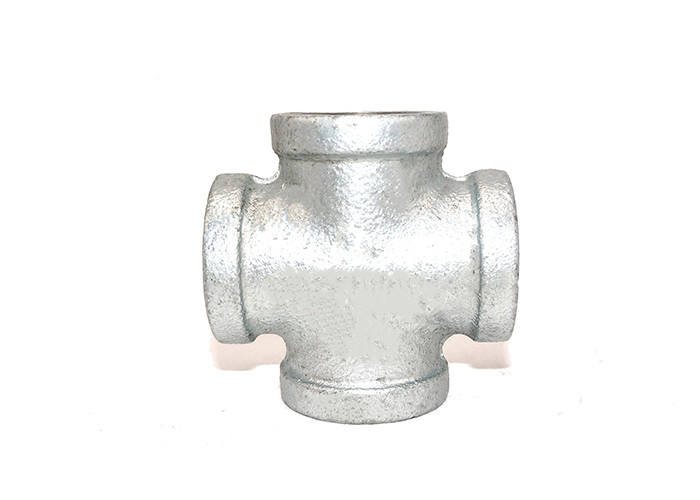

Large Image :  Fireproof Toilet Pipe Fitting Cross 4 Way Pipe Connector ISO 7/1 Standard

Product Details:

Place of Origin: China
Brand Name: kanaif
Certification: FM/UL
Model Number: Galvanized Pipe Fitting Cross

Payment & Shipping Terms:

Minimum Order Quantity: 100piece
Price: Negotiable
Packaging Details: 200piece/carton
Delivery Time: 25-35days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000piece/week
Contact Now
Detailed Product Description
Color: Galvanized & Black Treaded: ISO7/1, DIN2999,NPT
Application: Steam, Air, Gas And Oil Pipes Standard: ANSI,BS,DIN
Surface Treatment: Hot Galvanized Size: 3 Inch 80mm
Head Code: Square Item: 3 Inch Galvanized Pipe Fitting Cross

Galvanized Malleable Iron Pipe Fitting 90 degree Banded equal Cross



Over 30 years, Leyon dedicates itself to providing Galvanized Pipe Fitting Cross solutions for global clients in Galvanized Pipe Fitting Cross field. Depend upon the collaborations with world top Galvanized Pipe Fitting Cross manufactures on high-end Galvanized Pipe Fitting Cross application, Leyon could provide professional Galvanized Pipe Fitting Cross solutions for particular projects amid special construction environment.



Parameter table of Malleable Iron Pipe Fitting Crosses

Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit



Main points of Galvanized Pipe Fitting Cross

  • Through airtight test, the quality of everyGalvanized Pipe Fitting Cross can be ensured.

  • The standard size of Galvanized Pipe Fitting Cross is from 1/8” to 4”.

  • Galvanized Pipe Fitting Cross have Good toughness ensure long using life.

  • We imported full automatic produce-lines from DISA Denmark, DJ and SINTOKOGIO Japan on Galvanized Pipe Fitting Cross making and quality ensuring.

  • The spectrometer of Oxford Instruments has applied to test the quality of Galvanized Pipe Fitting Cross.

  • we use high heat value natural gas annealing furnace, strictly control the annealing process, improve the physical properties of the Galvanized Pipe Fitting Cross.


  • There is no any sand hole on surface of Galvanized Pipe Fitting Cross.


  • Our zinc coating of Galvanized Pipe Fitting Cross is thicker than 86 um specified in ASME, EN(70um), DIN(70um), SI(78um).

Table of Galvanized Pipe Fitting Cross

Size Inch 1/8 1/4 3/8 1/2 3/4 1
mm 6 8 10 15 20 25
Dim.
(mm)
A 17.5 20.6 24.1 28.5 33.3 38.1
Size Inch 11/4 11/2 2 21/2 3 4
mm 32 40 50 65 80 100
Dim.
(mm)
A 44.5 49.3 57.2 68.6 78.2 96.3
