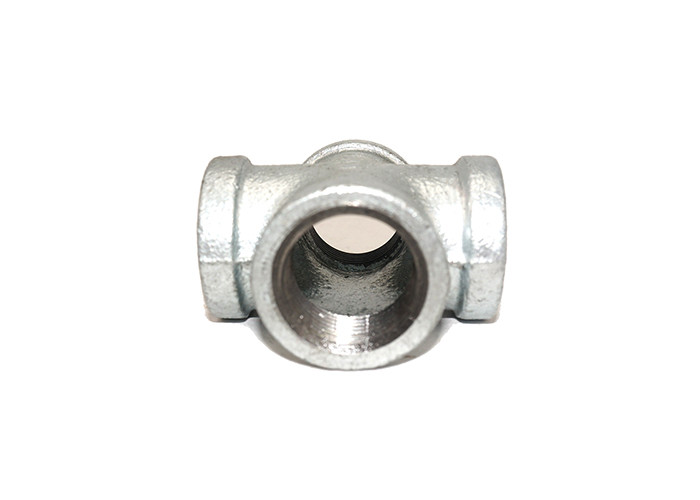

Customized Size 4 Way Tee Pipe Fitting , Reducer Coupling Pipe Fittings Wearable

Customized Size 4 Way Tee Pipe Fitting , Reducer Coupling Pipe Fittings Wearable

  • Customized Size 4 Way Tee Pipe Fitting , Reducer Coupling Pipe Fittings Wearable
  • Customized Size 4 Way Tee Pipe Fitting , Reducer Coupling Pipe Fittings Wearable
  • Customized Size 4 Way Tee Pipe Fitting , Reducer Coupling Pipe Fittings Wearable
Customized Size 4 Way Tee Pipe Fitting , Reducer Coupling Pipe Fittings Wearable
Product Details:
Place of Origin: China
Brand Name: kanaif
Certification: FM/UL
Model Number: pipe fitting cross
Payment & Shipping Terms:
Minimum Order Quantity: 100piece
Price: Negotiable
Packaging Details: 200piece/carton
Delivery Time: 25-35days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000piece/week
Contact Now
Detailed Product Description
Color: Galvanized & Black Material: Malleable Iron
Technics: Casting Standard: ANSI,BS,DIN
Surface Treatment: Hot Galvanized Size: 11/4 Inch 32mm
Head Code: Square Type: 11/4 Inch Pipe Fitting Cross
High Light:

malleable cast iron pipe fittings

,

iron water pipe fittings

White OEM Malleable Iron Pipe galvanized fittings Cross Reducing



Leyon is 30 years old , utilizeits experience and knowledge to provide pipe fitting cross solutions for buyers in every corners in pipe fitting cross transportation and storage field. Depend upon join hands with world top pipe fitting cross manufactures on high-end pipe fitting cross products application, Leyon could provide exceptional pipe fitting cross assistance for specific projects amid special construction circumstance.



Attribute definition list of pipe fitting cross

Size Inch 1/8 1/4 3/8 1/2 3/4 1
mm 6 8 10 15 20 25
Dim.
(mm)
A 17.5 20.6 24.1 28.5 33.3 38.1
Size Inch 11/4 11/2 2 21/2 3 4
mm 32 40 50 65 80 100
Dim.
(mm)
A 44.5 49.3 57.2 68.6 78.2 96.3




Describe of pipe fitting cross

  • Every pipe fitting cross will face strict airtight test.

  • Pipe outlet dimension of pipe fitting cross is from 1/8 "~4".

  • Strong tenacity brings long service life for pipe fitting cross.

  • No any sand hole on smooth surface of pipe fitting cross.

  • Avg thickness of zinc coating is more superior comparing with ASME, EN, and BS, DIN and so on.

  • In order to ensure the quality of pipe fitting cross, we introduced the full automatic produce-lines from DISA Denmark, DJ and SINTOKOGIO Japan.

  • The spectrometer is an indispensable analytical instrument on analyzing of pipe fitting cross material.


  • Higher heating value gas annealing furnace plays a decisive role on improving material physical characteristics.

Visual communication of pipe fitting cross



Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit
