| Place of Origin: | China |
| Brand Name: | LEYON |
| Certification: | FM,UL |
| Model Number: | cap02 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton |
| Delivery Time: | 25-35days |
| Payment Terms: | D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/week |
| Type: | Cap | Material: | Iron |
|---|---|---|---|
| Usage: | Oil Gas Water Industrial | Size: | 1/8",3/8",1/2",3/4",1",1 1/4" 1 1/2" ,2",2 1/2" 3",4",5",6" |
| Standard: | ANSI, BS, DIN,EN | Product Name: | Malleable Iron Cap |
| High Light: | threaded pipe nipple,malleable cast iron pipe fittings |
||

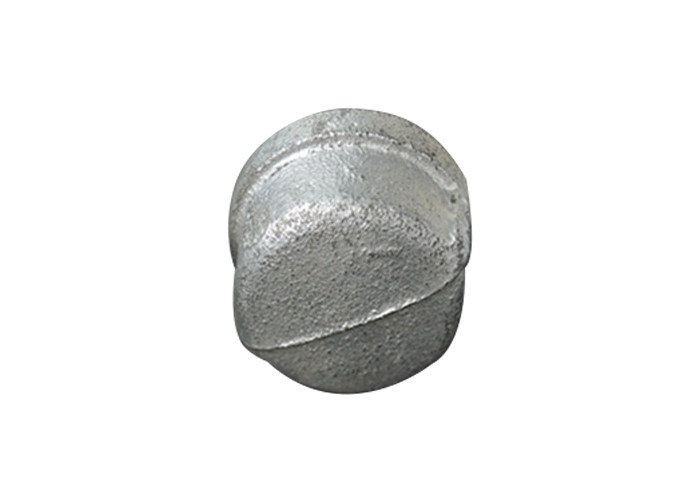

Galvanized Malleable Iron Pipe Fitting Cap Bushing Union Nut
Specification of malleable iron cap
Thread: perfect thread, better to connet
Type: Beaded with rids
Surface: Smooth surface, no impurities
British standard: thread ISO 7/1; Dimension: BS EN 10242, BS 143&1256
Chemical property: Tensile strength >=300MPa, Elongation >=6%, Hardness <=150HB
Testing pressure: 2.5MPa, 100% test before shipment
Working pressure: 1.6Mpa
Type: Banded, Beaded with ribs.
Size: 1/8",3/8",1/2",3/4",1",11/4",11/2",2",21/2",3",4",5",6"
Surface: Galvanized; Normal black/Shining black
Series: Heavy, Standard, Medium, Light
Model:
Elbows, Tees, Crosses, Bends, Unions, Bushings, Lateral Y Braches, Sockets,
Nipples, Hexagon/Round Caps, Plugs, Locknuts, Flanges, Side Outlet Tees,
Side Outlet Elbows, etc.
Connection: Male, Female
Shape: Equal, Reducing
Certificate: BSI, ANAB, ISO9001,FM,UL
Applications: Suitable for Pipe lines connect of water, steam, air, gas, oil and so on.
Package:
1. Cartons without pallets.
2. Cartons with pallets.
3. Double woven bags
Or as buyer’s requirements.
Delivery detail: According to the quantities and specifications of each order.
Normal delivery time is from 25 to 35 days after receiving the deposit.
FAQ for malleable iron cap
Production Capacity
Our factory could export 30000ton / year.
OEM service
We have professional technical research team. They have 20 years experience.
If you have special requirements about the product, we could help you solve the problem.
Good Sales Service.
We provide after sales service for you.
Quick Delivery
Products in stock, it will take 15 days for delivery. Standard delivery time is about 30-45 days.
Information for pipe fitting cap
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
|
Delivery details |
According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
