| Place of Origin: | China |
| Brand Name: | LEYON |
| Certification: | FM,UL |
| Model Number: | cap010 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton |
| Delivery Time: | 25-35days |
| Payment Terms: | D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/week |
| Color: | Panit Black | Type: | Casting Cap Products |
|---|---|---|---|
| Head Shape: | Round Head | Item: | Pipe Fitting |
| Thread: | BSPP BSPT NPT | Product Name: | Malleable Iron Casting Cap |
| High Light: | reducing cross pipe fitting,socket weld pipe fittings |
||

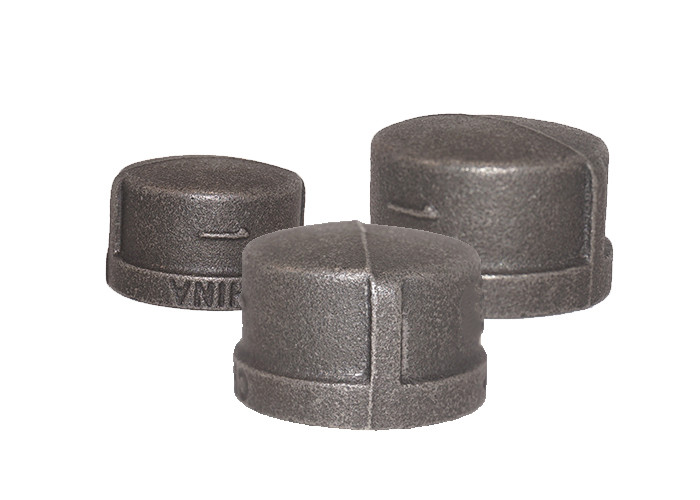

manufacture DIN10242 pipe fitting malleable iron casting cap products
Product description
Quality guarantee
Adequate-net weight, no cutting comers.
Except for standard weight, other optional weight series are available: heavy, light.
Sterict standards the precise control 100%:
by the ruler calibration international testing standards galvanizing temperature& thickness
Hardness＜150HB fine workmanship
Material: black heart malleable iron
American standard: threads:ISO7/1NPT
Dimension: ANSI/ASME 16.3-92/B1.20.1-83
Chemical property: (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property:
Tensile strength >=300MPa, Elongation >=6%, Hardness <=150HB
Related products
1. Malleable iron pipe fittings
2. Ductile iron pipe fittings
3. Lining plastic pipe fittings
4. Carbon Steel Pipe Nipples, King Nipples & Sockets with full threads
5. Carbon Steel pipe (seamless and welded, round and square)
6. Butt welding fittings and flanges
7. Valve

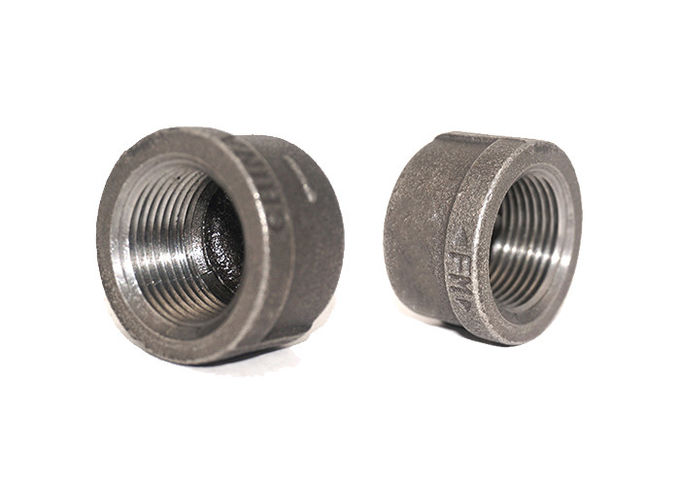

Details for malleable thread pipe cap
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
|
Delivery details |
According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
