| Place of Origin: | China |
| Brand Name: | leyon |
| Certification: | FM/UL |
| Model Number: | malleable iron threaded fittings |
| Minimum Order Quantity: | 100piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 200piece/carton |
| Delivery Time: | 25-35days |
| Payment Terms: | Western Union, L/C, T/T, D/P, D/A, MoneyGram |
| Supply Ability: | 10000piece/week |
| Specification: | Elbow, Socket, Tee, Union, Bushing, Plug | Treaded: | ISO7/1, DIN2999,NPT |
|---|---|---|---|
| Application: | Steam, Air, Gas And Oil Pipes | Material: | Iron |
| Standard: | 1 Inch Malleable Iron Threaded Fittings | Size: | 1 Inch |
| Dimensions: | 38 Mm | ||
| High Light: | black iron tee fitting,iron plumbing fittings |
||
Information of malleable iron threaded fittings
Leyon is 30 years old , applyitself tofurnish malleable iron threaded fittings for malleable iron threaded fittings clinets in the world in malleable iron threaded fittings area. Leyon could provide professional malleable iron threaded fittings aids for outstanding projects amid extra construction condition. After cooperating with world top malleable iron threaded fittings company on high-end malleable iron threaded fittings products application.
Parameter list of malleable iron threaded fittings
| Size | Inch | 3x3/4 | 3x1 | 3x11/4 | 3x11/2 | 3x2 | 3x21/2 | 4x1 | 4x11/4 |
| mm | 80x20 | 80x25 | 80x32 | 80x40 | 80x50 | 80x65 | 100x25 | 100x32 | |
| Dim. (mm) | A | 52 | 51 | 55 | 58 | 64 | 72 | 56 | 60 |
| Size | Inch | 4x11/2 | 4x2 | 4x21/2 | 4x3 | ||||
| mm | 100x40 | 100x50 | 100x65 | 100x80 | |||||
| Dim. (mm) | A | 61 | 70 | 78 | 84 |
1. For ensuring to control malleable iron tee pipe fittings, we use the most advanced metallurgical and processing technology.
2. Spectroscopic analyzer ensures the composition of malleable iron samples
3. We control the annealing process very strictly, to improve the material’s physical properties
4. Each pipe fitting tee after air tightness test, ensure no leakage
5. Accurate thread processing is based on international standard strictly.
6. Outlet size is from 1/8”~8”
Data of malleable iron threaded fittings :
· Material: malleable iron
· Technics: casing

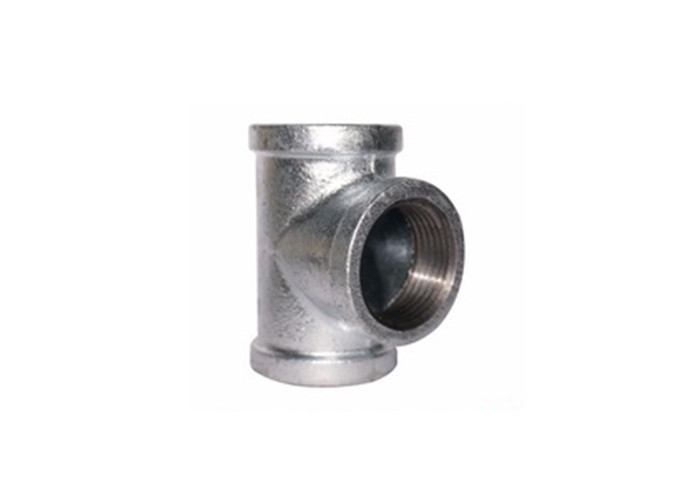

· Type: Malleable Iron Tee
· Connection:male&female
· Head Shape: Equal
· Code: Round
· size:1/8"-8"
· Standard: ANSI, BS, DIN
· Packing: wooden cases or as customers' demands
· surfacetreatment:painting galvaized or as customers' demands
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
Delivery details | According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
A&Q
A. How control the size of malleable iron threaded fittings ?
Q.Strictly control the size of the thread, to ensure accuracy
