| Place of Origin: | China |
| Brand Name: | leyon |
| Certification: | FM/UL |
| Model Number: | DIN standard quick connect tees |
| Minimum Order Quantity: | 100piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 200piece/carton |
| Delivery Time: | 25-35days |
| Payment Terms: | Western Union, L/C, T/T, D/P, D/A, MoneyGram |
| Supply Ability: | 10000piece/week |
| Treaded: | ISO7/1, DIN2999,NPT | Connection: | Female |
|---|---|---|---|
| Standard: | ANSI, BS, DIN | Surface Treatment: | Hot Dipped Galvanized And Cold Galvanized |

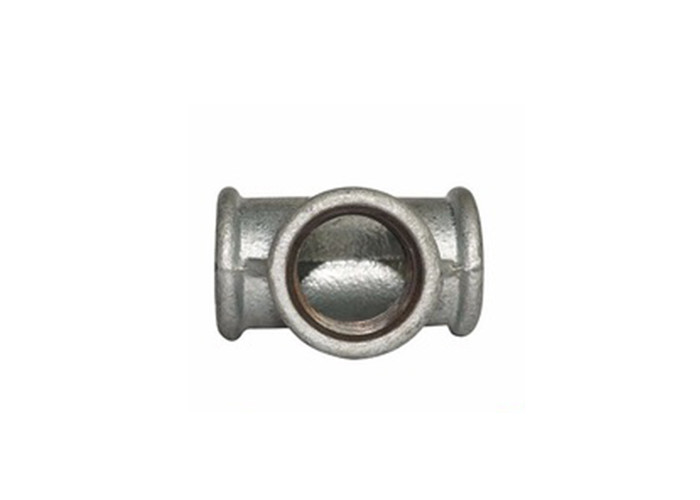

| Size: | Customized Size | Product: | DIN Standard Quick Connect Tees |
| High Light: | reducing tee pipe fitting,iron plumbing fittings |
||
Over 30 years, Leyon dedicates itself to providing DIN standard quick connect tees for global clients in DIN standard quick connect tees field. Depend upon the collaborations with world top DIN standard quick connect teesmanufactures on high-end DIN standard quick connect tees products application, Leyon could provide professional DIN standard quick connect tees solutions for particular projects amid special construction environment.
Comparison table of Tees Banded Malleable Fittings
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | |
| Dim. (mm) | A | 19 | 21 | 25 | 28 | 33 | 38 | 45 |
| Size | Inch | 3/8X1/4 | 1/2X1/4 | 1/2X3/8 | 3/4X1/4 | 3/4X1/8 | ||
| mm | 10X8 | 15X8 | 15x10 | 20x8 | 20X10 | |||
| Dim. (mm) | A | 23 | 24 | 26 | 26 | 28 |
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
| Delivery details | According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
DIN standard quick connect tees is made of advanced metallurgy and processing control.
We using spectrum analyse of DIN standard quick connect tees to check the cast iron sample ‘s quality.
Improved physical properties happened under strict annealing process of DIN standard quick connect tees .
Accurate thread processing of DIN standard quick connect tees is based on international standard strictly.
Diversity size of DIN standard quick connect tees are available, from 1/8” to 8”
Parametric of data of Tees Banded Malleable Fittings :
