| Place of Origin: | China |
| Brand Name: | leyon |
| Certification: | FM/UL |
| Model Number: | Tees Banded |
| Minimum Order Quantity: | 100piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 200piece/carton |
| Delivery Time: | 25-35days |
| Payment Terms: | Western Union, L/C, T/T, D/P, D/A, MoneyGram |
| Supply Ability: | 10000piece/week |
| Specification: | Elbow, Socket, Tee, Union, Bushing, Plug | Item: | Tees Banded |
|---|---|---|---|
| Application: | Steam, Air, Gas And Oil Pipes | Technics: | Sophisticated Metallurgical |
| Standard: | Casting | Size: | 3/8 Inch Tees Banded |
| Dimensions: | 10 Mm | ||
| High Light: | reducing tee pipe fitting,iron plumbing fittings |
||

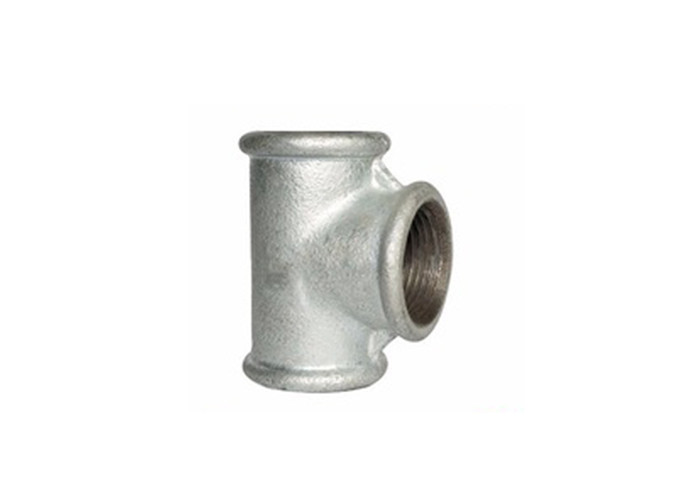

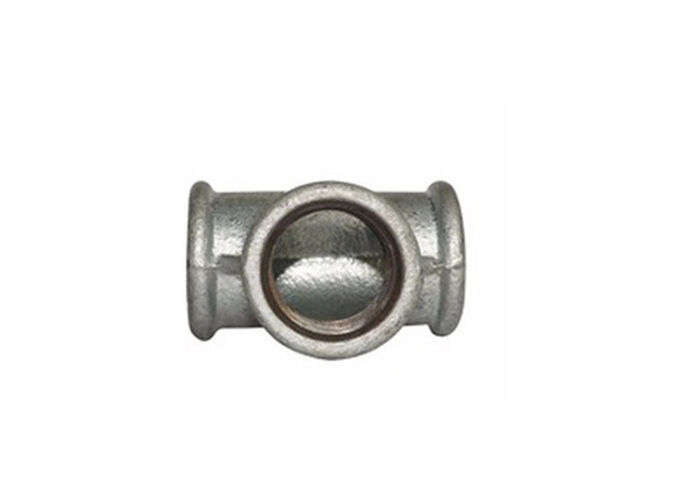

Tees Banded Malleable Iron Pipe Fittings equal 90 tees with spectrum analyse
Leyon is 30 years old , apply itself to furnish Tees Banded ,in the world in Tees Banded area. Leyon could provide professional aids for outstanding projects amid extra construction condition. After cooperating with world top company on high-end products application.
Graphical represented :
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | 40 | |
| Dim. (mm) |
A | 17.5 | 20.6 | 24.1 | 28.5 | 33.3 | 38.1 | 44.5 | 49.3 |
| Size | Inch | 2 | 21/2 | 3 | 4 | 5 | 6 | 8 | |
| mm | 50 | 65 | 80 | 100 | 125 | 150 | 200 | ||
| Dim. (mm) |
A | 57.2 | 68.6 | 78.2 | 96.3 | 114.3 | 130.3 | 162 |
Technical data :
· Material: malleable iron
· Technics: casing
· Type: Tees Banded
· Connection:male&female
· Head Shape: Equal
· Code: Round
· size:1/8"-8"
· Standard: ANSI, BS, DIN
· Packing: wooden cases or as customers' demands
· surfacetreatment:painting galvaized or as customers' demands
1.What's processing controls for Tees Banded:
Malleable iron pipe fitting tee is made with most sophisticated metallurgical and processing controls available
2.Spectrum analyse :
We using spectrum analyse to check the cast iron sample ‘s quality
3. Tees Banded's strict annealing process:
The improving of material physical properties rely on strict annealing process
4.The range :
Outlet range of Tees Banded is from 1/8”~8”
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
|
Delivery details
|
According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
A&Q
A. Why reducing ?
Q.Air tightness test applied on every tee, to ensure there is no leakage
A.How control ?
Q.Strictly control the size of the thread, to ensure accuracy
