| Place of Origin: | China |
| Brand Name: | leyon |
| Certification: | ISO9001 |
| Model Number: | ball valve 01 |
| Minimum Order Quantity: | 100piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 200piece/carton |
| Delivery Time: | 25-35days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000piece/week |
| Material: | 201, 304 Or 316 Stainless Steel | Size: | Customized |
|---|---|---|---|
| Power: | Hydraulic | Product Name: | Stainless Steel One Piece Ball Valve |
| Structure: | Ball | Surface Treatment: | Polish Or Without Polsih |
| Quality Control: | Strictly Quality Control | Threaded: | NPT |
| High Light: | stainless steel globe valve,stainless steel butterfly valve |
||
ball valve manufacturer 1 inch stainless steel one piece ball valve
Short Description for one piece ball valve
Simple structure and easy installation
Small flow resistance
Smooth surface with high quality stainless steel material.
Tight sealing
Techniacal Parameters
Pressure Rating: 1000psi/PN63
Working Temperature: -10℃-150℃
Reduce Port
Investment Casting
Blow-out proof stem
Locking Device handle(Option)
PED97/23EC
Thread: ASME B1.20.1
BS21, DIN2999/259, ISO228-1, ISO7/1,JIS B 0203
Inspection Testing: API598,EN12516-2
About us
Developing 30 years, we have a strong professional and experienced team.
The varieties of valves, we are producing, ball valve, filter valve, check valve,
gate valve and globe valve, wisely used for chemical, petroleum, medicine and ship industry.
We sincerely welcome you visit us and Co-creat our future together.
Size for one piece ball valve
| Material | SUS201, SUS304,SUS316, SUS 304L , SUS 316L(CF8, CF8M),etc. |
| Size | 1/4" -4" (DN6-DN100) |
| pressure | 1000psi |
| Temperature range | -20-300 degree C |
| connection | Butt weld |
| sealing | PTFE,RPTFE,PPL ETC |
| Production process | Investment casting, CNC lathe, Test, Cleaning, Packing, Storage |
| Certification | CE, ISO, our factory has been inspected by SGS and TUV |
| Locking | With or without |
| Capacity to produce | 100,000.00pcs/week |
| Main products | Includes ball valve, butterfly valve, check valve, gate valve, strainer, etc. |
| Application | Suitable for water, oil, air and some corrosive liquid etc |
| Buyer’s drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Or as buyer’s requirements | |
| Delivery details | According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |

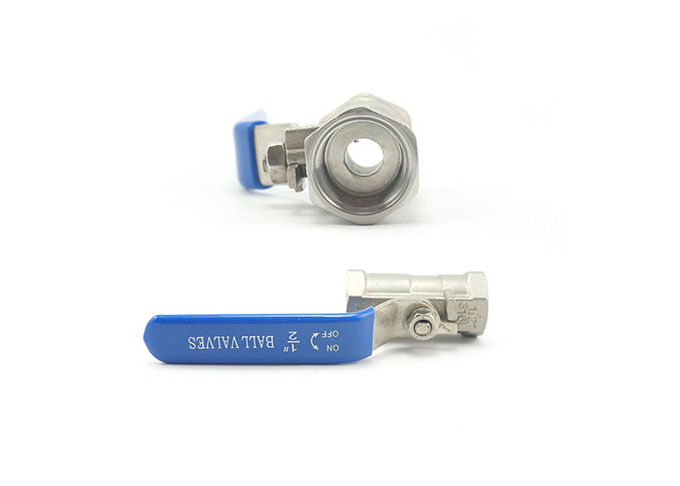

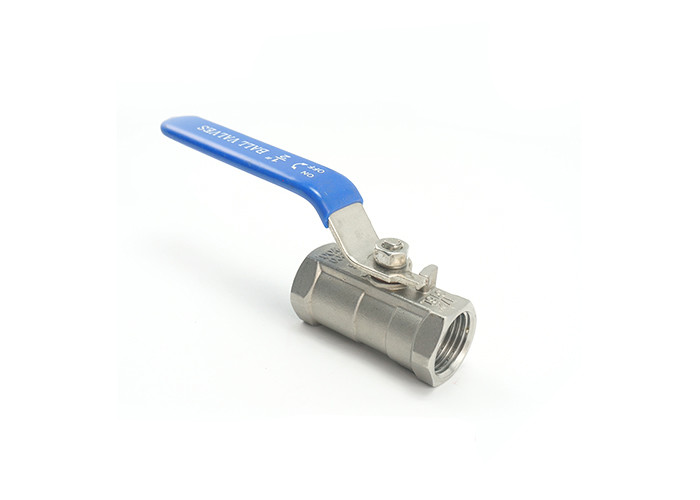

Photo of one piece ball valve
