| Place of Origin: | China |
| Brand Name: | kanaif |
| Certification: | FM/UL |
| Model Number: | Pipe Fitting Cross Banded Reducing 90 |
| Minimum Order Quantity: | 100piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 200piece/carton |
| Delivery Time: | 25-35days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000piece/week |
| Color: | Galvanized & Black | Material: | Malleable Iron |
|---|---|---|---|
| Technics: | Casting | Standard: | ANSI,BS,DIN |
| Surface Treatment: | Hot Galvanized | Size: | 1/2 Inch 15mm |
| Type: | Pipe Fitting Cross Banded Reducing 90 | ||
| High Light: | black iron pipe union,iron water pipe fittings |
||
Interpolation table of Pipe Fitting Cross Banded Reducing 90
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
| Delivery details | According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |

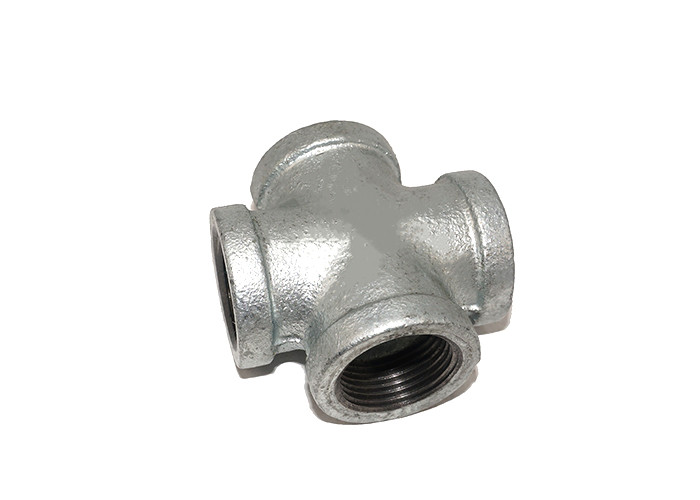

Customized Malleable Iron Pipe Fitting Cross Banded Reducing 90
Leyon is 30 years old , devote itself to offering Pipe Fitting Cross Banded Reducing 90 solutions for global guests in energy transportation and storage field. Depend upon the collaborations with world top Pipe Fitting Cross Banded Reducing 90 manufactures on high-end Pipe Fitting Cross Banded Reducing 90 products application, Leyon could provide professional Pipe Fitting Cross Banded Reducing 90 solutions for unique projects amid special construction place.
Outline of Pipe Fitting Cross Banded Reducing 90
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | |
| Dim. (mm) |
A | 17.5 | 20.6 | 24.1 | 28.5 | 33.3 | 38.1 |
| Size | Inch | 11/4 | 11/2 | 2 | 21/2 | 3 | 4 |
| mm | 32 | 40 | 50 | 65 | 80 | 100 | |
| Dim. (mm) |
A | 44.5 | 49.3 | 57.2 | 68.6 | 78.2 | 96.3 |
Main point of Pipe Fitting Cross Banded Reducing 90
The spectrometer of Oxford Instruments we bought for analyzing the quality of Pipe Fitting Cross Banded Reducing 90 .
In order to improve material physical characteristics, we set a higher heating value gas furnace to control the annealing process of Pipe Fitting Cross Banded Reducing 90 strictly.
Each Pipe Fitting Cross Banded Reducing 90 after air tightness test, ensure no leakage.
Pipe outlet dimension of Pipe Fitting Cross Banded Reducing 90 is from 1/8 "~4".
Pipe Fitting Cross Banded Reducing 90 have Good toughness with long working life.
Smooth surface of Pipe Fitting Cross Banded Reducing 90, no sand hole.
The layer of zinc exceeds the standard of ASME, EN, and BS, DIN and so on.
