| Place of Origin: | China |
| Brand Name: | leyon |
| Certification: | FM, UL |
| Model Number: | malleable iron pipe fittings04 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton |
| Delivery Time: | 25-35days |
| Payment Terms: | D/A, D/P, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 9000tons/year |
| Product Name: | Malleable Pipe Fittings | Name: | Galvanized Cross |
|---|---|---|---|
| Item: | Crosspipe Fittings | Color: | White |
| Size: | 3/8",1/2"-6" | Surface: | Zinc-plated |
| High Light: | iron plumbing fittings,iron water pipe fittings |
||

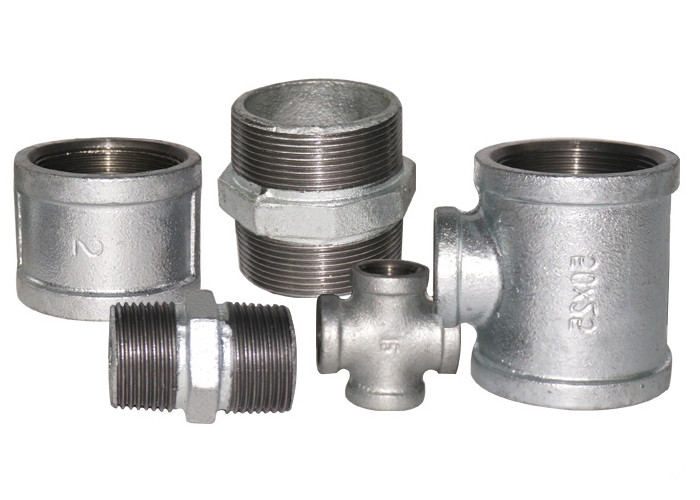

malleable iiron pipe fittings cross galvanized boss pipe fittings
Introduction for malleable pipe fittings
Better toughness creates long using life for malleable iron pipe fittings
Smooth surface on malleable iron pipe fittings
The zinc average coating thicknessis higher than the requirements of
standard of malleable iron pipe fittings for ASME(86 um), EN(70um), DIN(70um) and SI(78um).
As the quality of raw material of malleable iron pipe fittings is the source of product quality,
we use dense, strength, unpunchedsteel offcut to produce malleable iron pipe fittings
Accurate threads strictkly acc. to the precise standards like ASME, EU, BS, DIN, etc.
There is accurate structure for the threads of malleable iron pipe fittings,
in this way allows to the easily engage between
thread length & straightness with threaded pipe.
Compete size range of malleable iron pipe fittings : from 1/8”-8”.
We are the well-know manufacturer in the fitting industry
with the most compete range of products,
supplying malleable iron fittings, grooved fittings, valves, cast iron fittings,
ductile iron fittings, steel pipe nipplesand couplings, stainless steel pipe fittings,ect.
details of malleable pipe fittings
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension: ISO 49, DIN 2950,EN10242 | |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded wihtout ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
| Delivery details | According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
