| Place of Origin: | China |
| Brand Name: | leyon |
| Certification: | FM, UL |
| Model Number: | malleable iron pipe fittings07 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton |
| Delivery Time: | 25-35days |
| Payment Terms: | D/A, D/P, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 9000tons/year |
| Product Name: | Malleable Pipe Fittings | Name: | Carbon Steel Elbow Pipe |
|---|---|---|---|
| Item: | Pipe Fittings Weight | Color: | White |
| Size: | 1/8"-6" | Surface: | Galvanized |
| High Light: | malleable cast iron pipe fittings,iron plumbing fittings |
||

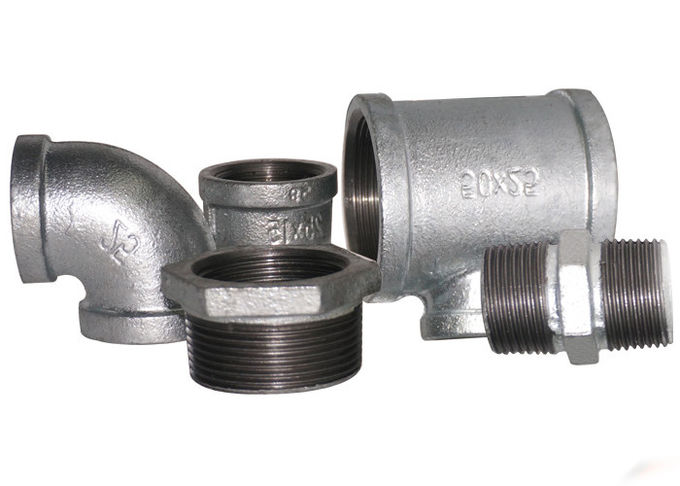

malleable pipe fittings carbon steel elbow pipe fittings weight
Our Production Processing for malleable pipe fittings
We buy and use dense ,high strength ,nonporous iron and steel scrap
as raw material .Because that is basic point on excellent malleable pipe fittings
Thread processed is exactly based on ASME EN BS DIN standard requirements,
so that make every thread of malleable pipe fittings can be matched easily.
Pipe fittings size of malleable pipe fittings from 1/8 "to 8".
Favorable tenacity,long service life for malleable pipe fittings
Smooth surface without any sand hole on malleable pipe fittings
zinc coating’s average thickness of malleable pipe fittings
is higher than 86 um, which is specified in ASME, EN(70um), DIN(70um) and SI(78um).
Leyon takes pride in its part in making the world a better place.
We thrive on the challenge, and appreciate the role we play in
enabling our customers to construct those structures,
utilities and pipelines that we sometimes take for granted.
Data information of malleable pipe fittings
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension: ISO 49, DIN 2950,EN10242 | |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded wihtout ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
| Delivery details | According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
