| Place of Origin: | China |
| Brand Name: | kanaif |
| Certification: | FM/UL |
| Model Number: | 1-1/2" flat seat union |
| Minimum Order Quantity: | 100piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 200piece/carton |
| Delivery Time: | 25-35days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000piece/week |
| Color: | Galvanized & Black | Meterial: | Malleable Iron |
|---|---|---|---|
| Technics: | Casting | Size: | 1/8"-6“ |
| Standard: | ANSI,BS,DIN | Sueface Teathment: | Hot Galvanized |

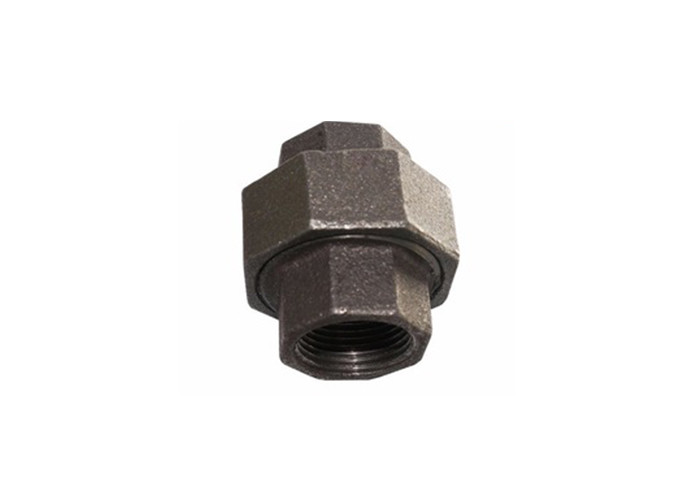

| Head Code: | Square | Item: | 1-1/2" Flat Seat Union |
| High Light: | threaded pipe nipple,iron water pipe fittings |
||
Malleable cast iron besides less sensitive to cracking has a range of features, such as higher values of tensile strength, rupture strength and elongation, and high resistance to wear and strong shock resistance. These properties make it useful for a range of commercial purposes. Malleable cast iron is often used as an alternative to steel since it is cheaper to produce and use.
Size chart :
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | |
| Dim. (mm) |
A | 32.0 | 36.5 | 41.0 | 43.5 | 49.5 | 52.5 | 57.5 |
| Size | Inch | 11/2 | 2 | 21/2 | 3 | 4 | 6 | |
| mm | 40 | 50 | 65 | 80 | 100 | 150 | ||
| Dim. (mm) |
A | 61 | 70 | 82 | 89 | 98 | 145 |
The usage of malleable cast iron pipe fitting
|
Chemical composition of malleable iron |
|
| Element | Composition in % |
| Carbon | 2.2 – 2.8% |
| Silicon | 1.20 – 1.8% |
| Manganese | 0.4 – 1.2% |
| Sulphur | 0.02 – 0.2% |
| Phosphorus | 0.02 – 0.1% |
Technical data :
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
| Delivery details | According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
