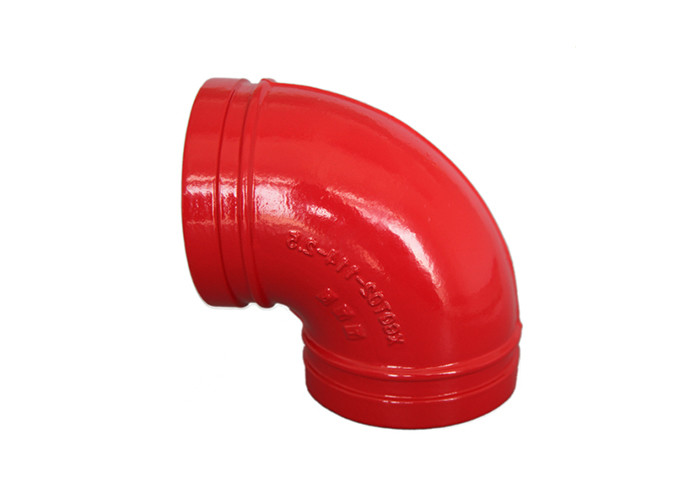

11.25 / 22.5 / 45 / 90 FM UL Certificated Casting Ductile Iron Grooved Pipe Fittings Elbow

11.25 / 22.5 / 45 / 90 FM UL Certificated Casting Ductile Iron Grooved Pipe Fittings Elbow

  • 11.25 / 22.5 / 45 / 90 FM UL Certificated Casting Ductile Iron Grooved Pipe Fittings Elbow
  • 11.25 / 22.5 / 45 / 90 FM UL Certificated Casting Ductile Iron Grooved Pipe Fittings Elbow
  • 11.25 / 22.5 / 45 / 90 FM UL Certificated Casting Ductile Iron Grooved Pipe Fittings Elbow
11.25 / 22.5 / 45 / 90 FM UL Certificated Casting Ductile Iron Grooved Pipe Fittings Elbow
Product Details:
Place of Origin: China
Brand Name: leyon
Certification: FM/UL
Model Number: figure number 90
Payment & Shipping Terms:
Minimum Order Quantity: 100piece
Price: Negotiable
Packaging Details: 200piece/carton
Delivery Time: 25-35days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000piece/week
Contact Now
Detailed Product Description
Material: Ductile Iron Threads: ISO7/1, DIN2999,NPT
Size: 1"-24" Surface Treatment: Painted/electroplated/black/epoxy/hot-dip Galvanized
Certificate: UL/FM Approved Product Name: Ductile Iron Grooved Pipe Fittings
Item: Grooved Elbow Pipe Fittings
High Light:

fire fighting grooved fittings

,

ductile iron water pipe fittings

FM UL Approved ductile iron Grooved Pipe Fitting grooved11.25, 22.5,45,90 degree elbow



Product detailed description

Sizes---Customized sized

Color----Red/Orange/Blue/White/Grey etc.

Certifications---FM/UL/ISO9001/CE certifications

Surface Treatment---Expoxy/Painted/Galvanized



1.We use Oxford Instruments spectrometer to

check the chemical composition for every heat,

components conform to the requirements of the process before the iron.

2. Each casting ladle pouring tap on a block, tapping experiment was carried out,

judge the inoculation Strictly control the size of the groove,

ensure compliance with standards

3.The pipe fittings have outlets ranging from 1” through 24”



Application

1) Automatic sprinkler system for fire protection on commercial ,

civil and municipal constructions like water supplying ,gas supplying, heat supplying,etc

2) Industrial pipeline system on shipping ,mine, oil field,textile,powder plant,etc.

3) Pipeline system on subway station ,railway station ,airport, seaport,bridge,etc.



Size for grooved elbows

Nominal
Size
mm/in
Pipe
O.D.
mm/in
Working
Pressure
PSI/Mpa
Dimensions
L
mm/in
Certificate
50
2
60.3
2.375
362.5
2.5
65
2.559
3C UL FM
65
21/2
76.1
3.000
362.5
2.5
72.6
2.858
3C UL FM
80
3
88.9
3.500
362.5
2.5
80.2
3.157
3C UL FM
100
4
108.0
4.5
362.5
2.5
95.5
3.760
3C UL FM
100
4
114.3
4.5
362.5
2.5
98.2
3.866
3C UL FM
125
5
133.0
5.250
362.5
2.5
105
4.134
3C UL FM
125
5
139.7
5.250
362.5
2.5
110
4.331
3C UL FM
150
6
159.0
6.250
362.5
2.5
122.3
4.815
3C UL FM
150
6
165.1
6.500
362.5
2.5
128.9
5.075
3C UL FM
150
6
168.3
6.625
362.5
2.5
128.9
5.075

3C UL FM

200
8
219.1
8.625
362.5
2.5
166.7
6.563
3C UL FM
250
10
273.0
10.750
362.5
2.5
204.5
8.051
3C UL FM

Information for gooved pipe fittings

Material Ductile lron
Standard ASTM A536 Gr.65—45—12 EN1563.JIS G5502
Physical property Tensile strength>=310Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Surface painted
Color red, blue, white
Model Ductile iron grooved pipe fittings (Rigid coupling,45°elbows,grooved pipe fitting 90°elbows,reducing tee,grooved cross,flange coupling,cap ect.)
Connection Female, welding, flange
Shape Equal, reducing
Certificate FM,UL BSI,ANSI,ISO9001, 3C
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit
