| Place of Origin: | China |
| Brand Name: | leyon |
| Certification: | FM/UL |
| Model Number: | figure number 180 |
| Minimum Order Quantity: | 100piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 200piece/carton |
| Delivery Time: | 25-35days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000piece/week |
| Head Code: | Round | Type: | Cross |
|---|---|---|---|
| Size: | Customized | Technics: | Casing |
| Certificate: | UL/FM Approved | Product Name: | DIN Grooved Cross |
| Name: | UL Ductile Iron Fitting | Item: | Grooved Fitting For Water Pipe |
| High Light: | ductile iron threaded fittings,ductile iron water pipe fittings |
||

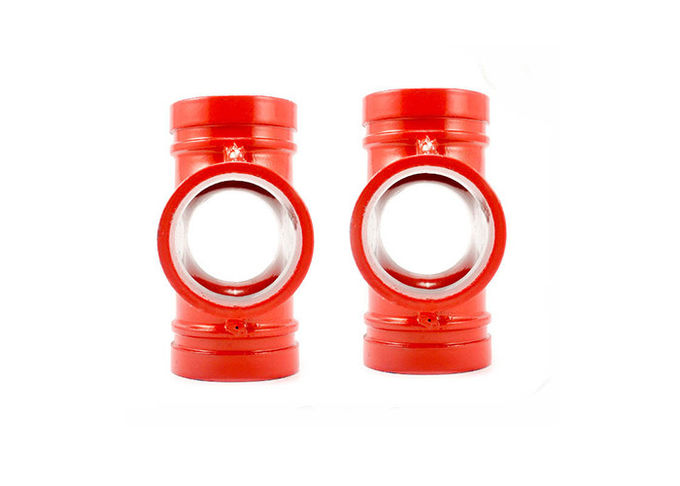

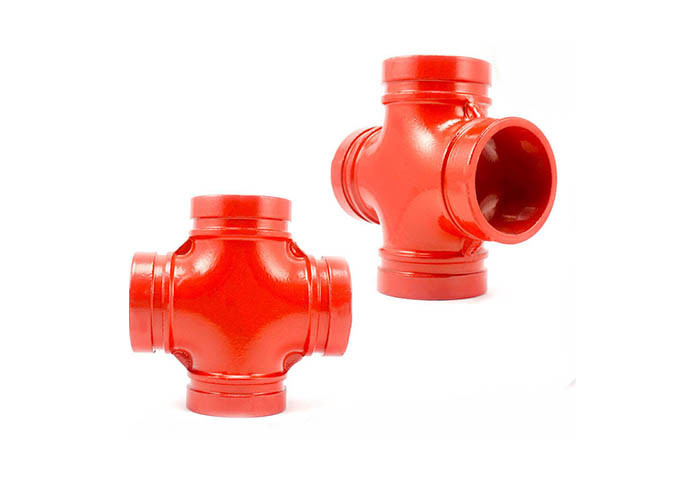

grooved fitting for water pipe UL Ductile Iron fitting DIN grooved cross
Main products:
ductile iron grooved fitting, malleable iron threaded fittings,
malleable cast iron fitting with plastic liner, mechanical spare parts, etc.
Pipe fittings size is 1”-24”
Type: banded; beaded
Standard: BS EN10242;DIN EN10242
Materia: ductile iron
Usage:
1) Automatic sprinkler system for fire protection on commercial, civil and municipal constructions
like water supplying, gas supplying, heat supplying, etc.
2) Industrial pipeline system on shipping, mine, oil field, textile, powder plant, etc.
3) Pipeline system on subway station, railway station, airport, seaport, bridge, etc.
Why choose us?
The products offered by us are thoroughly examined by
our experienced professionals to ensure their durability, reliability and long service life.
Competitive price: direct manufacturer, reducing all unnecessary cost for you.
Professional team:20 years foreign customers service experience.
Good service: Customer is first.
Sheet for UL Ductile Iron fitting
| Nominal Size mm/in |
Pipe O.D. mm/in |
Working Pressure PSI/Mpa |
Dimensions L mm/in |
Certificate |
| 65 21/2 |
76.1 3.000 |
362.5 2.5 |
76.25 3 |
3C UL FM |
| 80 3 |
88.9 3.500 |
362.5 2.5 |
82.5 3.248 |
3C UL FM |
| 100 4 |
114.3 4.5 |
362.5 2.5 |
92.5 3.642 |
3C UL FM |
| 125 5 |
139.7 5.250 |
362.5 2.5 |
110 4.33 |
3C UL FM |
| 150 6 |
165.1 6.500 |
362.5 2.5 |
122.5 4.883 |
3C UL FM |
| 200 8 |
219.1 8.625 |
362.5 2.5 |
164 6.457 |
3C UL FM |
Main points of UL Ductile Iron fitting
| Material | Ductile lron |
| Standard | ASTM A536 Gr.65—45—12 EN1563.JIS G5502 |
| Physical property | Tensile strength>=310Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Surface | painted |
| Color | red, blue, white |
| Model | Ductile iron grooved pipe fittings (Rigid coupling,45°elbows,grooved pipe fitting 90°elbows,reducing tee,grooved cross,flange coupling,cap ect.) |
| Connection | Female, welding, flange |
| Shape | Equal, reducing |
| Certificate | FM,UL BSI,ANSI,ISO9001, 3C |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
| Delivery details | According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
