| Place of Origin: | China |
| Brand Name: | kanaif |
| Certification: | FM/UL |

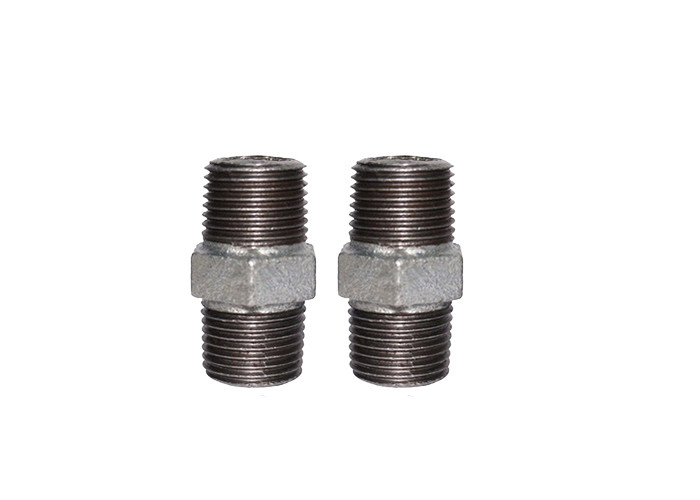

| Model Number: | black iron pipe nipple |
| Minimum Order Quantity: | 100piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 200piece/carton |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000piece/week |
| Color: | Galvanized | Material: | Malleable Iron |
|---|---|---|---|
| Technics: | Casting | Size: | 1/8”-6“ Black Iron Pipe Nipple |
| Standard: | ANSI,BS,DIN | Head Code: | Square |
| Item: | Black Iron Pipe Nipple | ||
| High Light: | threaded pipe nipple,malleable cast iron pipe fittings |
||
Dim. chart of black iron pipe nipple
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | |
| Dim. (mm) |
A | 29 | 36 | 38 | 44 | 47 | 53 | 57 |
| Size | Inch | 11/2 | 2 | 21/2 | 3 | 4 | 5 | 6 |
| mm | 40 | 50 | 65 | 80 | 100 | 125 | 150 | |
| Dim. (mm) |
A | 59 | 68 | 75 | 83 | 95 | 103 | 110 |
What is the ASME ?
ASME – American Society of Mechanical Engineers
The American Society of Mechanical Engineers (ASME) is a professional association that , in its own words,”promotes the art , science, and practice of multidisciplinary engineering and allied sciences around the globe” via “continuing education , training and professional development , codes and standards , research , conferences and publications , government relations and other forms of outreach .” ASME is thus an engineering society , a standards organization , a research , and development organization , a lobbying organization , a provider of training and education, and a nonprofit organization founded as an engineering society focused on mechanical engineering in North America, ASME is today multidisciplinary and global .
ASME has over 140,000 members in 158 countries worldwide .
Graphical represented of data of black iron pipe nipple
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
|
Or as buyer’s requirements |
|
|
Delivery details
|
According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
Contact Person: Monica
Tel: +8618317006494
Address: Shanghai City , China
