| Place of Origin: | China |
| Brand Name: | LEYON |
| Certification: | FM,UL |
| Model Number: | cap01 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton |
| Delivery Time: | 25-35days |
| Payment Terms: | D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/week |
| Color: | Galvanized | Material: | Iron |
|---|---|---|---|
| Technics: | Casing | Size: | 1/8",3/8",1/2",3/4",1",1 1/4" 1 1/2" ,2",2 1/2" 3",4",5",6" |
| Standard: | ANSI, BS, DIN,EN | Regular Packaging: | Bags, Cartons, Wooden Cases, Pallets, As Buyer's Demands. |
| High Light: | iron plumbing fittings,iron water pipe fittings |
||

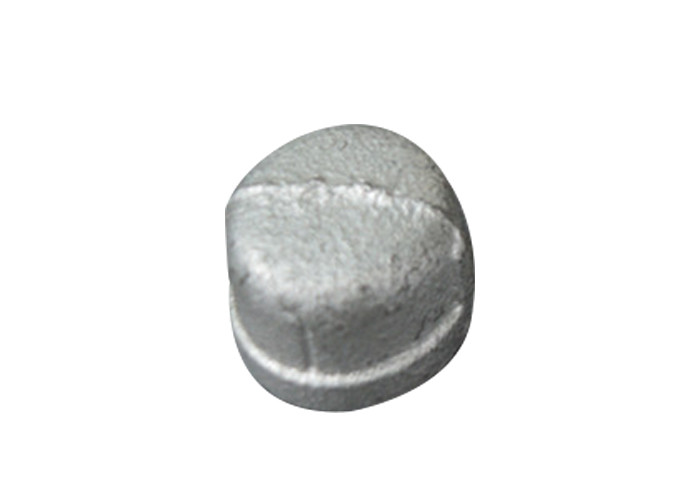

Galvanized pipe fitting cap malleable cast iron pipe fittings
Malleable iron pipe fittings details for Cap pipe fitting
Thread: perfect thread, better to connet
Type: Beaded with rids
Surface: Smooth surface, no impurities
British standard: thread ISO 7/1; Dimension: BS EN 10242, BS 143&1256
Chemical property: Tensile strength >=300MPa, Elongation >=6%, Hardness <=150HB
Testing pressure: 2.5MPa, 100% test before shipment
Working pressure: 1.6Mpa
Type: Banded, Beaded with ribs.
Size: 1/8",3/8",1/2",3/4",1",11/4",11/2",2",21/2",3",4",5",6"
Surface: Galvanized; Normal black/Shining black
Series: Heavy, Standard, Medium, Light
Model:
Elbows, Tees, Crosses, Bends, Unions, Bushings, Lateral Y Braches, Sockets,
Nipples, Hexagon/Round Caps, Plugs, Locknuts, Flanges, Side Outlet Tees,
Side Outlet Elbows, etc.
Connection: Male, Female
Shape: Equal, Reducing
Certificate: BSI, ANAB, ISO9001,FM,UL
Applications: Suitable for Pipe lines connect of water, steam, air, gas, oil and so on.
Package:
1. Cartons without pallets.
2. Cartons with pallets.
3. Double woven bags
Or as buyer’s requirements.
Delivery detail: According to the quantities and specifications of each order.
Normal delivery time is from 25 to 35 days after receiving the deposit.
Producing Process
Melting-making the cores-casting-annealing-reforming-flating-sand blasting-
packing-galvanizing-threading- pressure testing-cleaning-packing-storing-loading
Format for pipe fitting cap
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
|
Delivery details
|
According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
