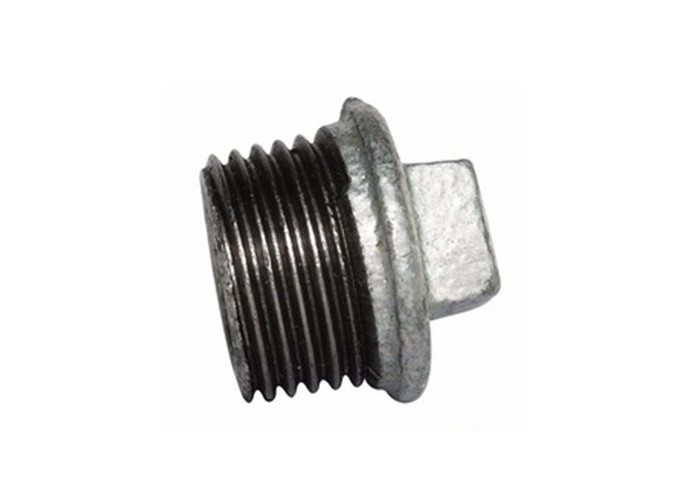

Name: Forged Maleable Plumbing Pipe Fittings Hex Head Plug 1.6Mpa Working Pressure
Brand: kanaif
SKU: maleable iron pipe fitting Hex Plug High pressure

Home Products Plumbing Pipe Fittings

Forged Maleable Plumbing Pipe Fittings Hex Head Plug 1.6Mpa Working Pressure

Product Details:

Place of Origin:	China
Brand Name:	kanaif
Certification:	FM/UL
Model Number:	maleable iron pipe fitting Hex Plug High pressure

Payment & Shipping Terms:

Minimum Order Quantity:	100piece
Price:	Negotiable
Packaging Details:	200piece/carton
Delivery Time:	25-35days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	10000piece/week

Contact Now

Detailed Product Description

Color:	Galvanized & Black	Meterial:	Malleable Iron
Technics:	Casting	Standard:	ANSI,BS,DIN
Surface Treatment:	Hot Galvanized	Head Code:	Square
Type:	Maleable Iron Pipe Fitting Hex Plug High Pressure	Size:	1/8"-6“
High Light:	iron plumbing fittings , iron water pipe fittings

Detail information of maleable iron pipe fitting Hex Plug High pressure

Material	Malleable iron
Standard	Thread: ISO 7/1
Dimension	ISO 49, DIN 2950,EN10242
Chemical property	(C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property	Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure	2.5Mpa
Working pressure	1.6Mpa
Type	Beaded with ribs or banded with ribs
	Beaded without ribs or banded without ribs
	Round/square
Surface	Galvanized/ no galvanized
Color	White/black
Model	Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection	Male, Female
Shape	Equal, Reducing
Certificate	BSI,ANAB,ISO9001,FM,UL
Application	Suitable for pipe connect of steam, air, gas, oil and so on
Application	Buyer’s drawings or designs are available
Package	Cartons without pallet
	Cartons with pallet
	Double woven bags
	Or as buyer’s requirements
Delivery details	According to the quantities and specifications of each order
Delivery details	Normal delivery time is from 30 to 45 days after receiving the deposit

Significate detail of maleable iron pipe fitting Hex Plug High pressure

After tightness test,each socket can be ensured no leakage.
We definitely have taken calibers of thread, parallelism, Angle, tooth type under control,and each union will be examined by plug gauge.
Avg. thickness of zinc coating is higher than 86 um specified in ASME, EN(70um), DIN(70um), SI(78um).
Smooth surface without any sand hole,no leakage.
To make sure the long time using life ,it is necessary to keep good toughness .
Compete size range of maleable iron pipe fitting Hex Plug High pressure : from 1/8”-6”.
Higher heating value gas annealing furnace was assembled in product-line to improve material physical characteristics.
Factory uses Oxford Instruments to analysis the quality of maleable iron pipe fitting Hex Plug High pressure samples.
We imported full automatic produce-lines from DISA Denmark ,DJ and SINTOKOGIO Japan on malleable iron elbow making and quality ensuring .

Size data of maleable iron pipe fitting Hex Plug High pressure

Size	Inch	1/8	1/4	3/8	1/2	3/4	1	11/4
Size	mm	6	8	10	15	20	25	32
Dim. (mm)	A	15.5	18.3	20.1	23.9	27.2	31.8	34.5
Size	Inch	11/2	2	21/2	3	4	6
Size	mm	40	50	65	80	100	150
Dim. (mm)	A	36.9	39.7	46	49	64.5	71.5
