| Place of Origin: | China |
| Brand Name: | Leyon |
| Certification: | FM/UL |
| Model Number: | balck malleable iron flange |
| Minimum Order Quantity: | 1000 piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 200piece/carton |
| Delivery Time: | 25-35days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000piece/week |
| Color: | Black | Material: | Malleable Iron |
|---|---|---|---|
| Technics: | Casting | Size: | 1/2”~ 2”. |
| Standard: | ANSI,BS,DIN,BSPT,NPT | Head Code: | Square |
| Type: | Black Or Coating Malleable Iron Flange | Certificate: | FM,UL,BSI,CE,ISO9001 |
| Asscoiated Products: | Elbow ,nipple,tee Socket ,caps Pipe Fittings | Application: | Home Decoration Furniture |
| High Light: | black iron pipe floor flange,galvanized malleable iron floor flange |
||

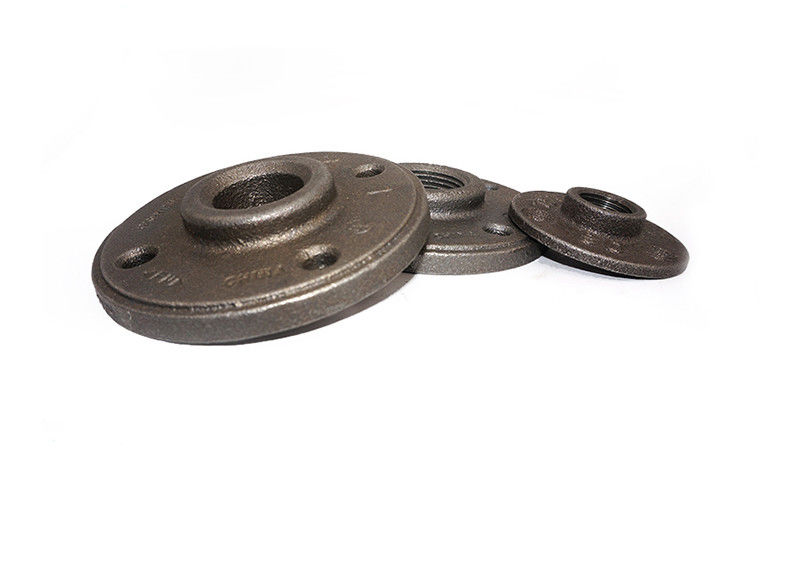

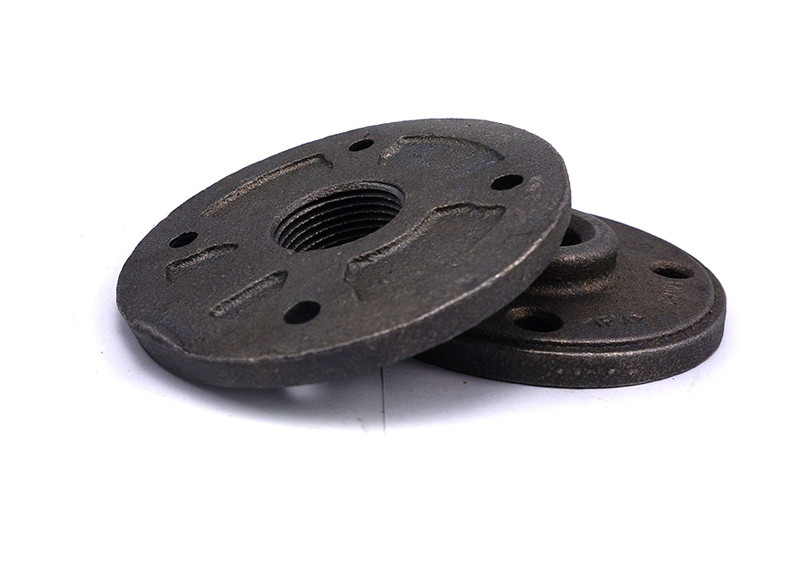

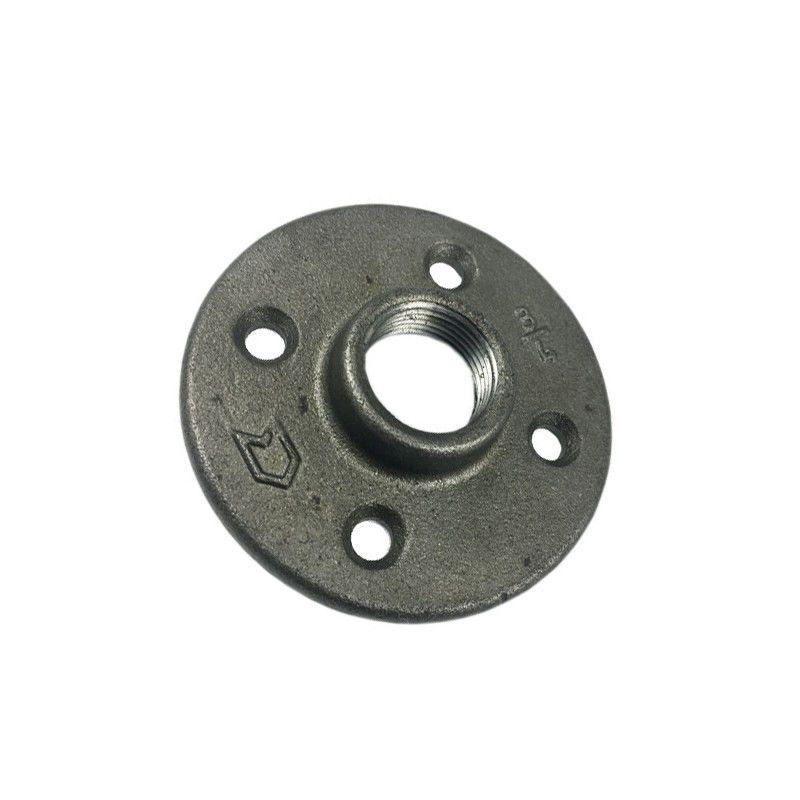

Home Decoration Industrial Malleable Iron Flange For DIY Decor Furniture
1. The zinc coating ‘s thickness is higher than 86 um specified in ASME, EN(70um), DIN(70um), SI(78um) .
2. Glossy surface with no sand hole.
3. Good quality and toughness.
4. Outlet connection of pipe fittings is ranging from 1/2”~2”
5. All lives of the thread, parallelism, Angle, tooth type are tested tightly by plug gauge .
6. we use high heat value natural gas annealing furnace, strictly control the annealing process, improve the physical properties of the materials
7. Oxford Instruments are used to check the quality of the products .
8. malleable iron flange adopted the DISA from Denmark,automatic production line of DJ AMF and SINTOKOGIO Japan,which is to ensure the quality of product.
Interpolation table of balck malleable iron flange
| Size | 1/8"-2" | ||
| Finishing | Hot Dipped Galvanized, Electro Galvanized, Epoxy, Black | ||
| Threads | DIN, BS, NPT, G Thread, Metric | ||
| Shape | Banded, Beaded, Plain | ||
| Ribs | with Rib or without Rib | ||
| Brand | leyon | ||
| Pressure | Class 150, Class 300, PN10, PN16 | ||
| Weight | Heavy, Standard, Medium, and Light | ||
| Usage | Convey Water, Oil, Gas, Steam and so on | ||
| material | malleable iron materail |
Graphical represented of data of balck malleable iron flange
| Size | Inch | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 |
| mm | 8 | 10 | 15 | 20 | 25 | 32 | |
| Dim. (mm) |
A | 12 | 14 | 14 | 16 | 17 | 19 |
| Size | Inch | 11/2 | 2 | 21/2 | 3 | 4 | |
| mm | 40 | 50 | 65 | 80 | 100 | ||
| Dim. (mm) |
A | 22 | 25 | 26.2 | 27.3 |
