EN 10242 Standard 3/4 Inch Plumbing Union Fitting GI Equal Tee Beaded Type

China EN 10242 Standard 3/4 Inch Plumbing Union Fitting GI Equal Tee Beaded Type supplier

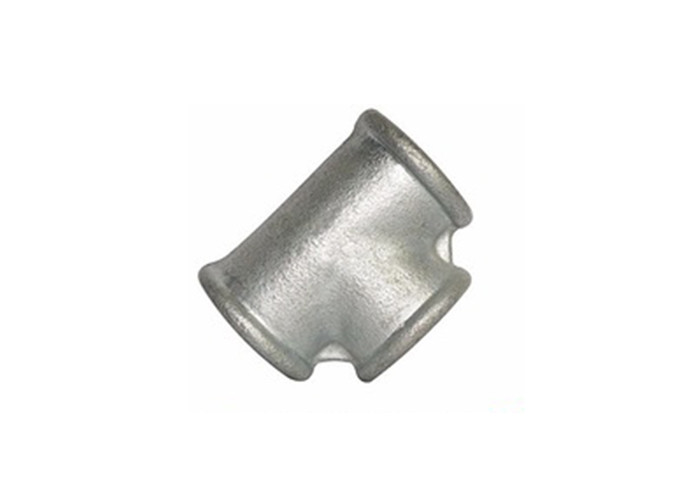

Large Image :  EN 10242 Standard 3/4 Inch Plumbing Union Fitting GI Equal Tee Beaded Type

Product Details:

Place of Origin: China
Brand Name: leyon
Certification: FM, UL
Model Number: 130 GI

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: carton
Delivery Time: 25-35days
Payment Terms: D/A, D/P, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 9000tons/year
Contact Now
Detailed Product Description
Product Name: Malleable Cast Iron Pipe Fitting Connection: Threaded
Usage: Plumbing Application: Suitable For Water ,steam ,air ,gas,oil Etc
Size: 1/4" - 4" Thread: ISO7/1, DIN2999,NPT
Surface: Hot Dip Galvanized


EN 10242 Standard 3/4 inch GI Equal Tee Beaded Type HDG Pipe Fittings water oil and gas fire fighting

Specification for malleable cast iron pipe fitting
Product: elbows, tees, sockets, bends, nipples, unions, crosses, plugs, crosses over, round caps, etc.
Size: 1/8" -6"
Thread: BS ANSI & DIN
Surface treatment: Black, Eclectic Galvanized, Hot Dipped Galvanized, all be antirust treatment.
Packing: Cartons, wooden boxes
Application: Suitable for joining pipe lines of team, gas, oil, air.



DINMENSION STANDARDS
BS21:1985 for BS pipe fittings
ANSI/ASME B1 20.1-1983 for American standard pipe fittings
DIN 2950/1692/2999 for DIN pipe fittings
MECHANICAL PROPERTIES
Tensile strength ≥330Mpa
Bending strength ≥ 520Mpa
Shearing strength ≥284Mpa
Elongating rate ≥8%
Hardness ≤HB150
HYDRAULIC TEST
Test pressure:2.5Mpa
Working pressure:1.6Mpa
CHEMICAL COMPOSITIONS
C:2.6%-2.8% Si:1.5%-1.8%
Mn:0.55%-0.7% S:0.25%-0.3%


Characteristics of malleable cast iron pipe fitting

MaterialMalleable iron
StandardThread: ISO 7/1
 Dimension: ISO 49, DIN 2950,EN10242
Chemical property(C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical propertyTensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure2.5Mpa
Working pressure1.6Mpa
TypeBeaded with ribs or banded with ribs
 Beaded without ribs or banded wihtout ribs
 Round/square
SurfaceGalvanized/ no galvanized
ColorWhite/black
ModelElbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
ConnectionMale, Female
ShapeEqual, Reducing
CertificateBSI,ANAB,ISO9001,FM,UL
ApplicationSuitable for pipe connect of steam, air, gas, oil and so on
 Buyer’s drawings or designs are available
PackageCartons without pallet
 Cartons with pallet
 Double woven bags
 Or as buyer’s requirements
Delivery detailsAccording to the quantities and specifications of each order
 Normal delivery time is from 30 to 45 days after receiving the deposit
