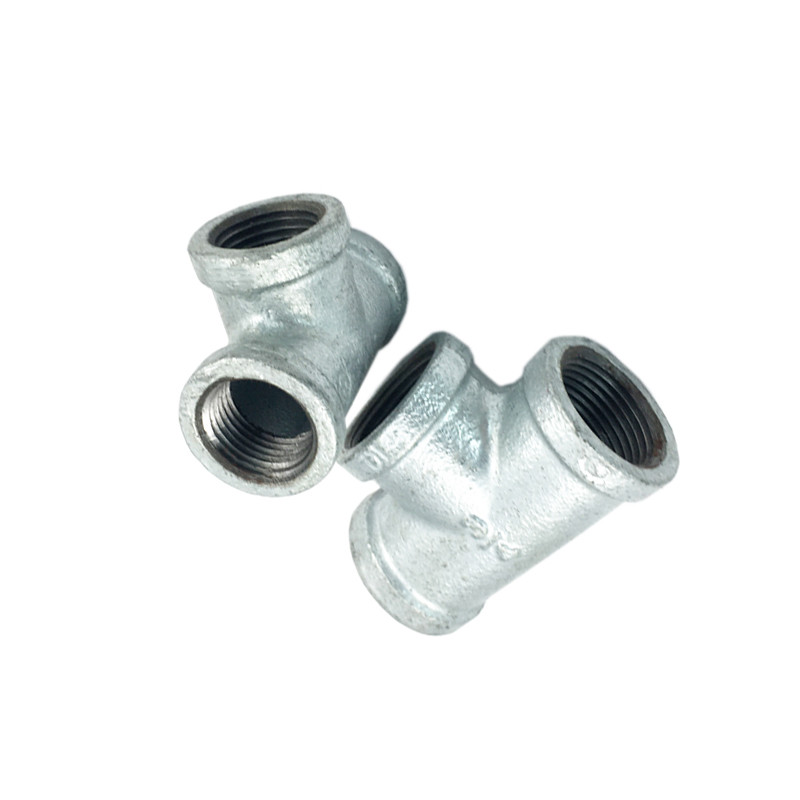

3/4 Inch Plumbing Union Fitting GI Equal Tee Beaded Type

3/4 Inch Plumbing Union Fitting GI Equal Tee Beaded Type

  • 3/4 Inch Plumbing Union Fitting GI Equal Tee Beaded Type
  • 3/4 Inch Plumbing Union Fitting GI Equal Tee Beaded Type
  • 3/4 Inch Plumbing Union Fitting GI Equal Tee Beaded Type
3/4 Inch Plumbing Union Fitting GI Equal Tee Beaded Type
Product Details:
Place of Origin: China
Brand Name: leyon
Certification: FM, UL
Model Number: 130 GI
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: carton
Delivery Time: 25-35days
Payment Terms: D/A, D/P, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 9000tons/year
Contact Now
Detailed Product Description
Product Name: Malleable Cast Iron Pipe Fitting Tee Connection: Thread
Usage: Plumbing,water Pipe, Oil Pipe Application: Suitable For Water ,steam ,air ,gas,oil Etc
Size: 1/4" - 6" Thread: ISO7/1, DIN2999,NPT,bspt
Surface: Hot Dip Galvanized
High Light:

Plumbing Union GI Equal Tee

,

ASME Beaded Type Equal Tee

,

NPT Thread Plumbing Union Fitting

DINMENSION STANDARDS
BS21:1985 for BS pipe fittings
ANSI/ASME B1 20.1-1983 for American standard pipe fittings
DIN 2950/1692/2999 for DIN pipe fittings
MECHANICAL PROPERTIES
Tensile strength ≥330Mpa
Bending strength ≥ 520Mpa
Shearing strength ≥284Mpa
Elongating rate ≥8%
Hardness ≤HB150
HYDRAULIC TEST
Test pressure:2.5Mpa
Working pressure:1.6Mpa
CHEMICAL COMPOSITIONS
C:2.6%-2.8% Si:1.5%-1.8%
Mn:0.55%-0.7% S:0.25%-0.3%



EN 10242 Standard 3/4 inch GI Equal Tee Beaded Type  Pipe Fittings water oil and gas fire fighting

Specification for malleable cast iron pipe fitting
Product: elbows, tees, sockets, bends, nipples, unions, crosses, plugs, crosses over, round caps, etc.
Size: 1/8" -6"
Thread: BS ANSI & DIN
Surface treatment: Black, Eclectic Galvanized, Hot Dipped Galvanized, all be antirust treatment.
Packing: Cartons, wooden boxes
Application: Suitable for joining pipe lines of team, gas, oil, air.






Characteristics of malleable cast iron pipe fitting

Material Malleable iron
Standard Thread: ISO 7/1
  Dimension: ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
  Beaded without ribs or banded wihtout ribs
  Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
  Buyer’s drawings or designs are available
Package Cartons without pallet
  Cartons with pallet
  Double woven bags
  Or as buyer’s requirements
Delivery details According to the quantities and specifications of each order
  Normal delivery time is from 30 to 45 days after receiving the deposit

 3/4 Inch Plumbing Union Fitting GI Equal Tee Beaded Type 0

3/4 Inch Plumbing Union Fitting GI Equal Tee Beaded Type 1
