| Place of Origin: | China |
| Brand Name: | leyon |
| Certification: | FM/UL |
| Model Number: | 90 |
| Minimum Order Quantity: | 100piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 200piece/carton |
| Delivery Time: | 25-35days |
| Payment Terms: | Western Union, L/C, T/T, MoneyGram |
| Supply Ability: | 10000piece/week |
| Product Name: | Hot Dipped Gi 90 Degree Elbow | Size: | 3/8~ 4 Inch |
|---|---|---|---|
| Certificates: | BSI,ANAB,ISO9001 | Color: | White |
| Item No.: | 90 | Application: | Steam, Air, Gas, Oil Pipes |
| MOQ: | 100pcs | Standard: | ANSI,BS,DIN |
| Material: | Malleable Cast Iron | Package: | Cutomized Color Design Box |
| High Light: | iron water pipe fittings,iron plumbing fittings |
||

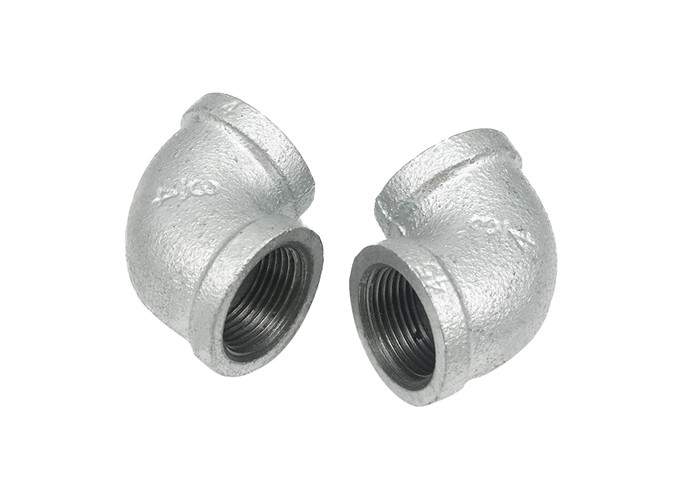

metal pipe connectors 1 inch galvanized pipe fittings Malleable Iron Elbow
Leyon is Top 3 pipe fittings manufacturers in the world,it known as “China malleable” for more than 24 years.
Leyon is always focusing on research and development of malleable iron fittings, grooved fittings,tubing and valves that are mainly applied in such industries as fire protection, water supply, construction industry, municipal engineering and petrochemical.
Quick Details
Material: iron
Technics: Casting
Type: galvanized cast iron pipe fittings
The Attribute definition list
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | 40 | |
| Dim. (mm) |
A | 19 | 21 | 25 | 28 | 33 | 38 | 45 | 50 |
| Size | Inch | 2 | 21/2 | 3 | 4 | 5 | 6 | ||
| mm | 50 | 65 | 80 | 100 | 125 | 150 | |||
| Dim. (mm) |
A | 50 | 69 | 78 | 96 | 115 | 1301 |
| Size | Inch | 3/8X1/4 | 1/2x1/4 | 1/2x3/8 | 3/4x3/8 | 3/4x1/2 |
| mm | 10X8 | 15X8 | 15X10 | 20X10 | 20X15 | |
| Dim. (mm) |
A | 23 | 26 | 26 | 28 | 30 |
| B | 23 | 26 | 26 | 28 | 31 | |
| Size | Inch | 1x1/2 | 1x3/4 | 11/4x1/2 | 11/4x3/4 | 11/4x1 |
| mm | 25X15 | 25X20 | 32X15 | 32X20 | 32x25 | |
| Dim. (mm) |
A | 32 | 35 | 34 | 36 | 40 |
| B | 34 | 36 | 38 | 41 | 42 |
| Size | Inch | 11/2X1/2 | 11/2x3/4 | 11/2x1 | 11/2x11/4 | 2x1/2 |
| mm | 40X15 | 15X8 | 40X25 | 40X32 | 50X15 | |
| Dim. (mm) |
A | 36 | 39 | 42 | 46 | 38 |
| B | 42 | 44 | 46 | 28 | 48 | |
| Size | Inch | 2x3/4 | 2x1 | 2x11/4 | 2x11/2 | 21/2x1 |
| mm | 50X20 | 50X25 | 50X32 | 50X40 | 65x25 | |
| Dim. (mm) |
A | 40 | 44 | 56 | 52 | 56 |
| B | 50 | 52 | 58 | 55 | 63 |
| Size | Inch | 21/2X11/2 | 3x21/2 | 21/2x2 | 3x11/2 |
| mm | 65X40 | 80X65 | 65X50 | 80X40 | |
| Dim. (mm) |
A | 64 | 82 | 61 | 58 |
| B | 69 | 85 | 66 | 72 | |
| Size | Inch | 3x2 | 4x21/2 | 4X3 | |
| mm | 80X50 | 100X65 | 100X80 | ||
| Dim. (mm) |
A | 73 | 78 | 84 | |
| B | 78 | 90 | 92 |
Packaging& Shipping of galvanized malleable cast iron pipe fittings
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension: ISO 49, DIN 2950,EN10242 | |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded wihtout ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001 |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
| Delivery details | According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
