| Place of Origin: | China |
| Brand Name: | leyon |
| Certification: | FM/UL |
| Model Number: | Malleable Iron Pipe Fitting Street Elbow |
| Minimum Order Quantity: | 100piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 200piece/carton |
| Delivery Time: | 25-35days |
| Payment Terms: | Western Union, L/C, T/T, D/P, D/A, MoneyGram |
| Supply Ability: | 10000piece/week |
| Material: | Black Iron | Item: | Malleable Iron Pipe Fitting Street Elbow |
|---|---|---|---|
| Specification: | Street Elbow, Socket, Tee, Union, Bushing, Plug | Connection: | Female And Male Thread |
| Technology: | Advanced Metallurgical And Processing | Size: | 3x11/2 Inch |
| Surface Treatment: | Hot Galvanized, Original Black, Sand Blast | Certificate: | ISO/FM/UL |
| High Light: | ANSI Galvanized Malleable Iron Tee,EN10242 Threaded Malleable Iron Tee,Metallurgical Malleable Iron Tee |
||
The usage of malleable cast iron pipe fitting
We also have lined with plastic fittings and coated pipe fittings, these two fittings are mainly used for water supply piping system installation.

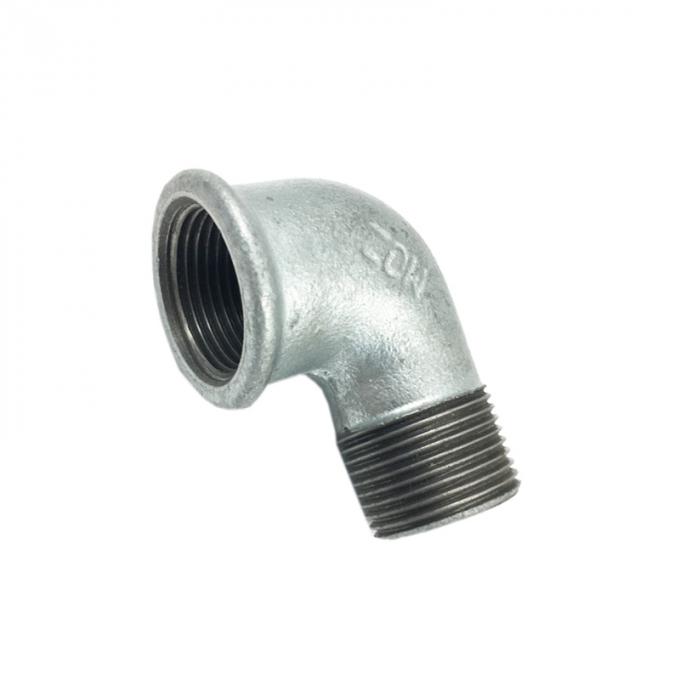

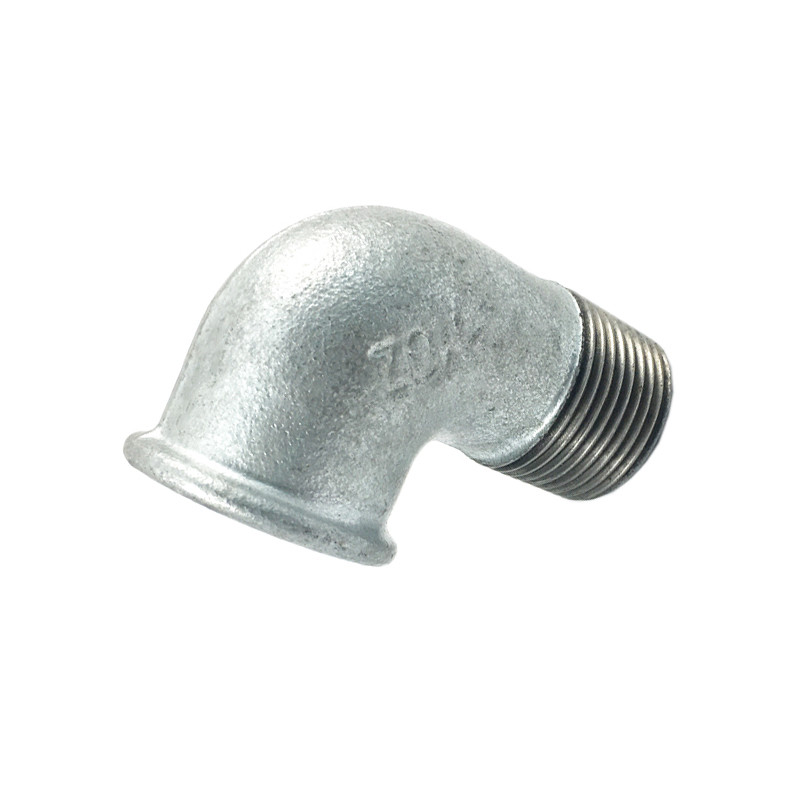

Data of Malleable Iron Pipe Fitting Street Elbow :
· Material: malleable iron
· Technics: casing
· Type: Malleable Iron Pipe Fitting Street Elbow
· Connection:male&female
· Physical structure: Equal
· Code: Round
· size:1/8"-8"
· Standard: ANSI, BS, DIN
· Packing: wooden cases or as customers' demands
· surfacetreatment:painting galvaized or as customers' demands
Interpolation table of Malleable Iron Pipe Fitting Street Elbow
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
|
Delivery details
|
According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
1. Annealing process:
We control the annealing process of Tees very strictly, to improve the material’s physical properties.
2.The outlets range:
Malleable Iron Pipe Fitting Quick Connect Tees have outlets ranging from 1/8” through 8”.
3.Service life :
Good toughness with long service life.
4.Most advanced metallurgical technology :
We use the most advanced metallurgical technology and precision machining to produce Tees.
Comparison table
| Size | Inch | 3/4x1/2 | 1x1/4 | 1x3/8 | 1x1/2 | 1x3/4 |
| mm | 20x15 | 25x8 | 25x10 | 25x15 | 25x20 | |
| Dim. (mm) |
A | 30 | 28 | 30 | 32 | 35 |
| Size | Inch | 11/4x3/8 | 11/4x1/2 | 11/4x3/4 | 11/4x1 | 11/2x1/2 |
| mm | 32x10 | 32x15 | 32x20 | 32x25 | 40x15 | |
| Dim. (mm) |
A | 32 | 34 | 36 | 40 | 36 |
| Size | Inch | 11/2x3/4 | 11/2x1 | 11/2x11/4 | 2x1/2 | 2x3/4 |
| mm | 40x20 | 40x25 | 40x32 | 50x15 | 50x20 | |
| Dim. (mm) |
A | 38 | 42 | 46 | 38 | 40 |
| Size | Inch | 2x1 | 2x11/4 | 2x11/2 | 21/2x1/2 | 21/2x3/4 |
| mm | 50x25 | 50x32 | 50x40 | 65x15 | 65x20 | |
| Dim. (mm) |
A | 44 | 48 | 52 | 46 | 49 |
| Size | Inch | 3x3/4 | 3x1 | 3x11/4 | 3x11/2 | 3x2 | 3x21/2 |
| mm | 80x20 | 80x25 | 80x32 | 80x40 | 80x50 | 80x65 | |
| Dim. (mm) |
A | 52 | 51 | 55 | 58 | 64 | 72 |
| Size | Inch | 4x1 | 4x11/4 | 4x11/2 | 4x2 | 4x21/2 | 3x21/2 |
| mm | 100x25 | 100x32 | 100x40 | 100x50 | 100x65 | 80x65 | |
| Dim. (mm) |
A | 56 | 60 | 61 | 70 | 78 | 76 |
1. We use excellent raw materials and have a strict quality inspection system, which includes leakage testing, providing metallurgical and processing control, using spectroscopy to determine material quality, chemical analysis of varieties to strictly control compliance, and using fine grained, high strength, non-porous iron to produce the final castings. Because high quality iron is the starting point of producing high quality pipe fittings.
2: precision thread machining, in line with precision standards, such as ASME, EU, BS, DIN, etc. Threads have a precise construction, so the length and straightness of the threads allow them to easily engage threaded tubes.
