| Place of Origin: | China |
| Brand Name: | kanaif |
| Certification: | FM/UL |
| Model Number: | Hi-tech Fluid Coupling Fusible Plug |
| Minimum Order Quantity: | 100piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 200piece/carton |
| Delivery Time: | 25-35days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000piece/week |
| Color: | Galvanized & Black | Meterial: | Malleable Iron |
|---|---|---|---|
| Technics: | Casting | Standard: | ANSI,BS,DIN |
| Surface Treatment: | Hot Galvanized | Head Code: | Square |
| Type: | Hi-tech Fluid Coupling Fusible Plug | Size: | 1/8"-6“ |
| High Light: | reducing cross pipe fitting,galvanized pipe cross |
||
Detail information of Hi-tech Fluid Coupling Fusible Plug
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
| Delivery details | According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |

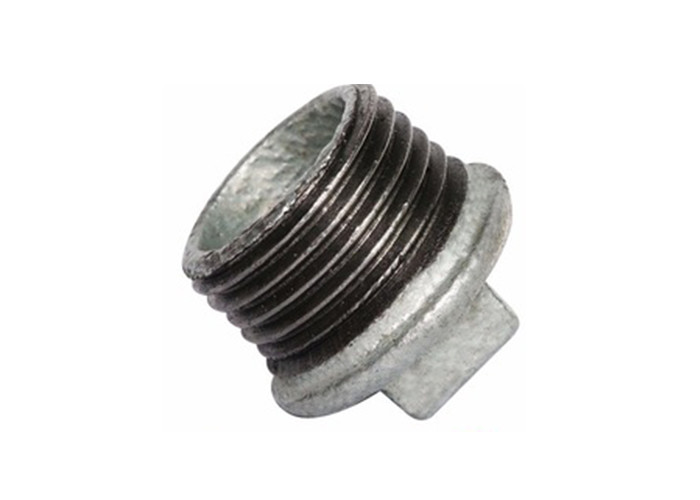

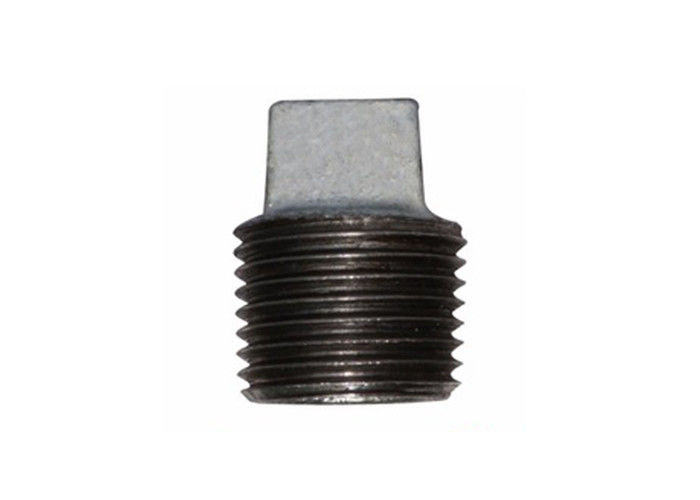

Malleable Iron Pipe Plugs Hi-tech Fluid Coupling Fusible Plug
1. We imported the equipments from DISA Denmark, DJ AMF Japan, SINTOKOGIO Japan in the MI elbow productline, the product quality is very stable.
2.Spectrometer from Oxford Instruments is used to inspect the Hi-tech Fluid Coupling Fusible Plug’s quality.
3.In order to improve material physical characteristics, we set a higher heating value gas furnace to control the annealing process strictly.
4. The Hi-tech Fluid Coupling Fusible Plug has outlets ranging from 1/8” through 6”.
5.Prefect toughness ,long time using life .
6.Smooth surface without trachoma.
7.The zinc average coating thicknessis higher than the requirements of standard for ASME(86 um), EN(70um), DIN(70um) and SI(78um).
8.Thread diameter, parallelism, angle, tooth type will be controlled strictly and tested each union with plug gauge.
9.Through airtight test, the quality of every socket can be ensured.
Size data of Hi-tech Fluid Coupling Fusible Plug
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | |
| Dim. (mm) |
A | 15.5 | 18.3 | 20.1 | 23.9 | 27.2 | 31.8 | 34.5 |
| Size | Inch | 11/2 | 2 | 21/2 | 3 | 4 | 6 | |
| mm | 40 | 50 | 65 | 80 | 100 | 150 | ||
| Dim. (mm) |
A | 36.9 | 39.7 | 46 | 49 | 64.5 | 71.5 |
