| Place of Origin: | China |
| Brand Name: | leyon |
| Certification: | FM/UL |
| Model Number: | figure number 90 |
| Minimum Order Quantity: | 100piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 200piece/carton |
| Delivery Time: | 25-35days |
| Payment Terms: | Western Union, L/C, T/T, MoneyGram |
| Supply Ability: | 10000piece/week |
| Color: | Zinc-coated | Material: | Malleable Iron |
|---|---|---|---|
| Standard: | ANSI | Surface Treatment: | Galvanized |
| Certification: | UL, FM | Surface: | Hot Dip Galvanized |
| Packaging: | As Per Customers' Requirement | Application: | For Fire Protection |
| Sample: | Free | ||
| High Light: | malleable cast iron pipe fittings,iron plumbing fittings |
||
Specification of Male and female elbow
As for our advanced equipment:
In order to guarantee product quality, our equipments are imported from Japan and Denmark, like DISA, DJ AMF, SINTOKOGIO.
As for cast iron cast iron samples:
Every batch sample will be examined by Oxford Instruments spectrometer to ensure quality
For improving physical properties of products, we adoption of new technology natural gas annealing furnace to control annealing process.
As the quality of raw material is the source of product quality, we use dense, strength, unpunched steel offcut to produce our products.
As for our quality control:
Thread processed is exactly based on ASME EN BS DIN standard requirements, so that make every thread can be matched easily.
As for our quality feature:
Making sure of long-time working, we have strick requirements of toughness during process
As for pipe fittings sizes:
Size can be customized, ranging is from 1/8” to 8”
As for surface of pipe fittings:
Precise examination to ensure surface smoothly and unpunched
As for average thickness of the zinc layer:
Thickness of zinc coating is exactly according to international standard, average thickness is higher than ASME (86um), EN (70um), DIN (70um),SI(78um)
Detailed Product Description
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | 40 | |
| Dim. (mm) |
A | 17.5 | 20.6 | 24.1 | 28.5 | 33.3 | 38.1 | 44.5 | 49.3 |
| Size | Inch | 2 | 21/2 | 3 | 4 | 5 | 6 | 8 | |
| mm | 50 | 65 | 80 | 100 | 125 | 150 | 200 | ||
| Dim. (mm) |
A | 57.2 | 68.6 | 78.2 | 96.3 | 114.3 | 130.3 | 162 |
|
Material |
Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
|
Type |
Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
|
Application |
Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
|
Package |
Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
|
Delivery details
|
According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |

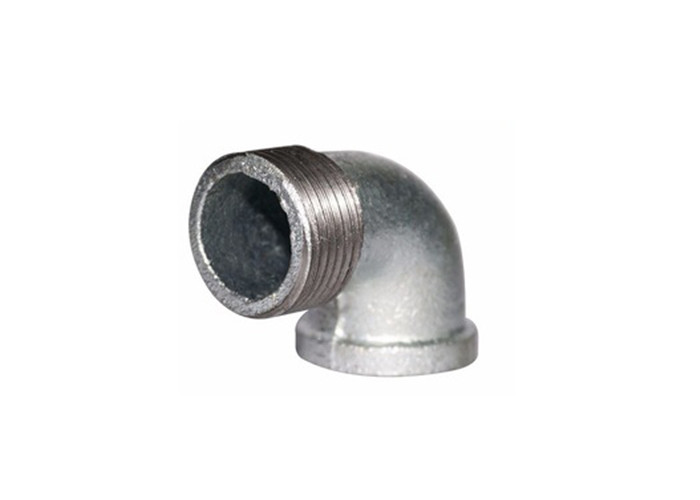

Male and female elbow SHOW
