| Place of Origin: | China |
| Brand Name: | leyon |
| Certification: | FM/UL |
| Model Number: | 90 Degree Malleable Iron Pipe Fitting |
| Minimum Order Quantity: | 100piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 200piece/carton |
| Delivery Time: | 25-35days |
| Payment Terms: | Western Union, L/C, T/T, MoneyGram, D/A, D/P |
| Supply Ability: | 10000piece/week |
| Head Shape: | Round | Technics: | Casting |
|---|---|---|---|
| Surface Treatment: | Hot Dipped Galvanized And Cold Galvanized | OEM: | 90 Degree Malleable Iron Pipe Fitting |
| Thread: | NPT | Usage: | Oil Gas Water Industrial |
| Certificate: | BSI, ISO9001,FM,UL | Dimension: | 23 Mm |
| High Light: | malleable cast iron pipe fittings,iron water pipe fittings |
||
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
|
Delivery details
|
According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
Describe of 90 Degree Malleable Iron Pipe Fitting
The company Leyon is one ofthe 90 Degree Malleable Iron Pipe Fitting manufacturers, which’s in the 90 Degree Malleable Iron Pipe Fitting field over 30 years. The factorycore culture is regarding create best quality 90 Degree Malleable Iron Pipe Fitting to 90 Degree Malleable Iron Pipe Fitting wholesalers, 90 Degree Malleable Iron Pipe Fitting vendors, 90 Degree Malleable Iron Pipe Fitting retailers.
Measurement chart of 90 Degree Malleable Iron Pipe Fitting
| Size | Inch | 3/8X1/4 | 1/2x1/4 | 1/2x3/8 | 3/4x3/8 | 3/4x1/2 |
| mm | 10X8 | 15X8 | 15X10 | 20X10 | 20X15 | |
| Dim. (mm) |
A | 23 | 26 | 26 | 28 | 30 |
| B | 23 | 26 | 26 | 28 | 31 | |
| Size | Inch | 1x1/2 | 1x3/4 | 11/4x1/2 | 11/4x3/4 | 11/4x1 |
| mm | 25X15 | 25X20 | 32X15 | 32X20 | 32x25 | |
| Dim. (mm) |
A | 32 | 35 | 34 | 36 | 40 |
| B | 34 | 36 | 38 | 41 | 42 |

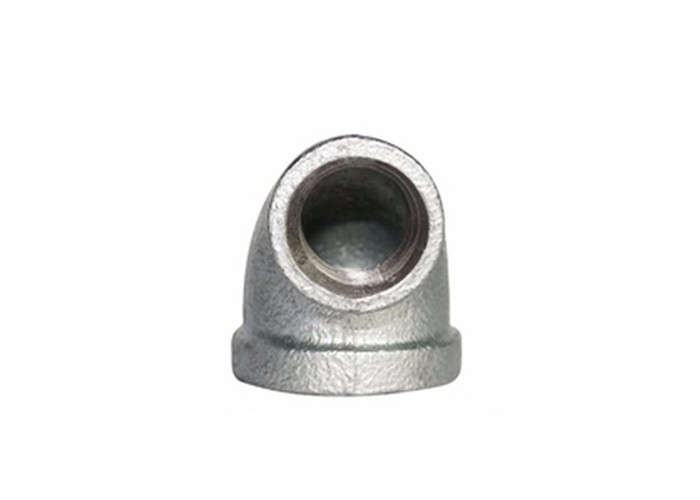

90 Degree Male Female Elbow Galvanized Malleable Iron Pipe Fitting From China
Higher heating value gas annealing furnace for 90 Degree Malleable Iron Pipe Fitting was assembled in product-line of 90 Degree Malleable Iron Pipe Fitting to improve material physical characteristics.
The equipments from DISA Denmark, DJ AMF Japan, SINTOKOGIO Japan widely used in our malleable iron elbow productline, ensures the stability of product quality of 90 Degree Malleable Iron Pipe Fitting .
Our production equipments for 90 Degree Malleable Iron Pipe Fitting are advanced,we import fully automated production line of 90 Degree Malleable Iron Pipe Fitting to make the shaping mold of superior quality and high efficient.
The final casting fittings of 90 Degree Malleable Iron Pipe Fitting are made of close-grained, high strength, impeccable steel & plate scrap.
Our accurate threads are complied with strict standard ,such as AME,EN,BS,DIN etc.The threads of 90 Degree Malleable Iron Pipe Fitting have an accurate structure,make sure that the thread length and straightness are easier to coincide with thread pipe.
The pipe fittings’ size of 90 Degree Malleable Iron Pipe Fitting ranging from 1/8” to 8”
