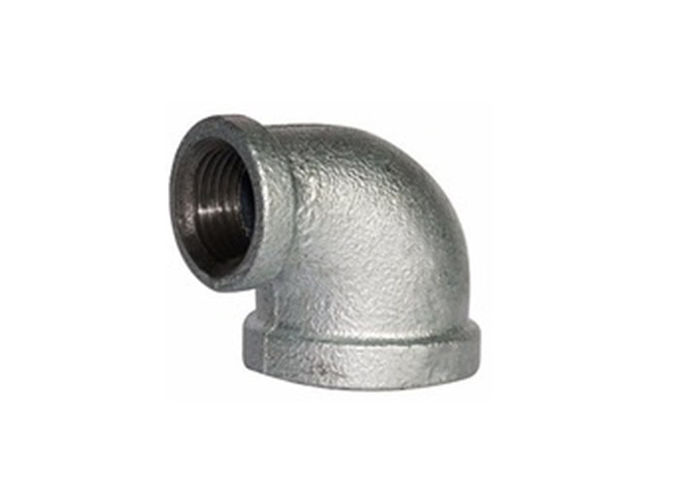

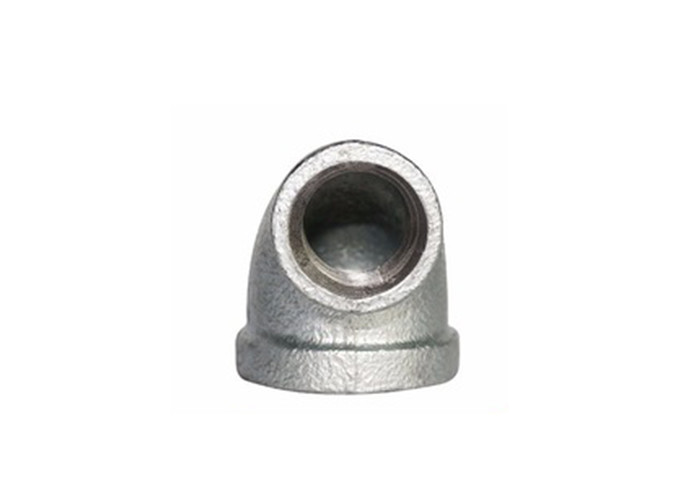

Square Head Beaded Malleable Iron Elbow BS Threaded Pipe Connectors

Square Head Beaded Malleable Iron Elbow BS Threaded Pipe Connectors

  • Square Head Beaded Malleable Iron Elbow BS Threaded Pipe Connectors
  • Square Head Beaded Malleable Iron Elbow BS Threaded Pipe Connectors
  • Square Head Beaded Malleable Iron Elbow BS Threaded Pipe Connectors
Square Head Beaded Malleable Iron Elbow BS Threaded Pipe Connectors
Product Details:
Place of Origin: China
Brand Name: leyon
Certification: FM/UL
Model Number: Galvanized Beaded Elbow
Payment & Shipping Terms:
Minimum Order Quantity: 100piece
Price: Negotiable
Packaging Details: 200piece/carton
Delivery Time: 25-35days
Payment Terms: Western Union, L/C, T/T, MoneyGram
Supply Ability: 10000piece/week
Contact Now
Detailed Product Description
Material: Iron Models: OEM Galvanized Beaded Elbow
Technics: Casting Standard: ANSI,BS,DIN
Dimension: A: 36mm B: 41mm Head Code: Square
Working Pressure: 1.6Mpa
High Light:

malleable cast iron pipe fittings

,

iron water pipe fittings

Information of Galvanized Beaded Elbow

Focus on Galvanized Beaded Elbow, expert in service, Leyon is an excellent malleable casting iron solutions provider. Possessing the diversity of products and steady relationships with dozens of top suppliers in the industry of elbow, we could make suitable entire solutions of our products for projects classified by their applications as follow--oil and gas. Thanks for all of our clients, your trust drives us to overcome millions of difficulties and achieve today’s success.



Category of Galvanized Beaded Elbow



Size Inch 3/8X1/4 1/2x1/4 1/2x3/8 3/4x3/8 3/4x1/2
mm 10X8 15X8 15X10 20X10 20X15
Dim.
(mm)
A 23 26 26 28 30
  B 23 26 26 28 31
Size Inch 1x1/2 1x3/4 11/4x1/2 11/4x3/4 11/4x1
mm 25X15 25X20 32X15 32X20 32x25
Dim.
(mm)
A 32 35 34 36 40
  B 34 36 38 41 42




Why the quality of galvanized beaded elbow is good ?

  1. The quality ensuring of Galvanized Beaded Elbow is controlled by full automatic product-lines of DISA Denmark ,SINTOKOGIO and DJAMF Japan.


  2. The spectrometer of Oxford Instruments we bought for analyzing the quality of our pipe fittings.


  3. Using high calorific value of natural gas annealing furnace, strictly control the annealing process to improve the physical properties of materials.


  4. Blast-Furnace smelting + electric furnace adjustment duplex smelting technology, 48 hours – 3 sections –electric annealing technology,comprehensively ensure our products’ quality to be the best .

Attached list of Galvanized Beaded Elbow



Material Malleable iron
Standard Thread: ISO 7/1
Dimension ISO 49, DIN 2950,EN10242
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)
Physical property Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB
Testing pressure 2.5Mpa
Working pressure 1.6Mpa
Type Beaded with ribs or banded with ribs
Beaded without ribs or banded without ribs
Round/square
Surface Galvanized/ no galvanized
Color White/black
Model Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc
Connection Male, Female
Shape Equal, Reducing
Certificate BSI,ANAB,ISO9001,FM,UL
Application Suitable for pipe connect of steam, air, gas, oil and so on
Buyer’s drawings or designs are available
Package Cartons without pallet
Cartons with pallet
Double woven bags
Or as buyer’s requirements

Delivery details



According to the quantities and specifications of each order
Normal delivery time is from 30 to 45 days after receiving the deposit
