| Place of Origin: | China |
| Brand Name: | leyon |
| Certification: | FM/UL |

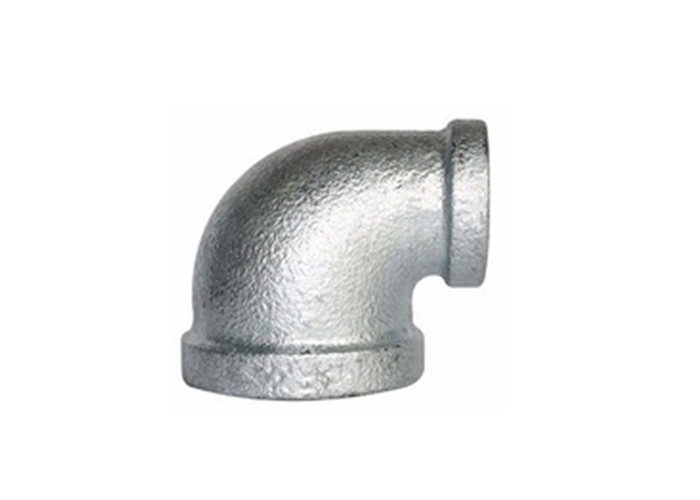

| Model Number: | Galvanizated Equal Elbows |
| Minimum Order Quantity: | 100piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 200piece/carton |
| Delivery Time: | 25-35days |
| Payment Terms: | Western Union, L/C, T/T, MoneyGram |
| Supply Ability: | 10000piece/week |
| Material: | Iron | Model Number: | OEM Galvanizated Equal Elbows |
|---|---|---|---|
| Certificate: | BSI,ANAB,ISO9001,FM,UL | Standard: | ANSI,BS,DIN |
| Dimension: | A:28mm B:28mm | Chemical Property: | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Working Pressure: | 1.6Mpa | ||
| High Light: | malleable cast iron pipe fittings,iron plumbing fittings |
||
Why the galvanizated equal elbows from kanaif is expensive than other factory ?
For example the process of production :
Smelting: Adopting electric stove and blast furnace double smelting, can control the ingredient and temperature well .
Testing : We test the molten iron by examples , spectrometer spectrometry and manual inspection.
Mixed sand: Use DISA Denmark system.
Attached table :
| Size | Inch | 3/8X1/4 | 1/2x1/4 | 1/2x3/8 | 3/4x3/8 | 3/4x1/2 |
| mm | 10X8 | 15X8 | 15X10 | 20X10 | 20X15 | |
| Dim. (mm) |
A | 23 | 26 | 26 | 28 | 30 |
| B | 23 | 26 | 26 | 28 | 31 | |
| Size | Inch | 1x1/2 | 1x3/4 | 11/4x1/2 | 11/4x3/4 | 11/4x1 |
| mm | 25X15 | 25X20 | 32X15 | 32X20 | 32x25 | |
| Dim. (mm) |
A | 32 | 35 | 34 | 36 | 40 |
| B | 34 | 36 | 38 | 41 | 42 |
Outline :
In order to guarantee Galvanizated Equal Elbows quality, our equipments are imported from Japan and Denmark, like DISA, DJ AMF, SINTOKOGIO.
In order to ensure mechanical property, control the temperature and time strictly during annealing.
Using high calorific value of natural gas annealing furnace,manipulate the annealing process rigorously,improve the physical properties of the materials .
.
Since quality is the outset of excellent quality fittings.
Smooth surface without trachoma.
The zinc average coating thickness is higher than the requirements of standard for ASME(86 um), EN(70um), DIN(70um) and SI(78um).
Graphical represented of data :
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
|
Delivery details
|
According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
