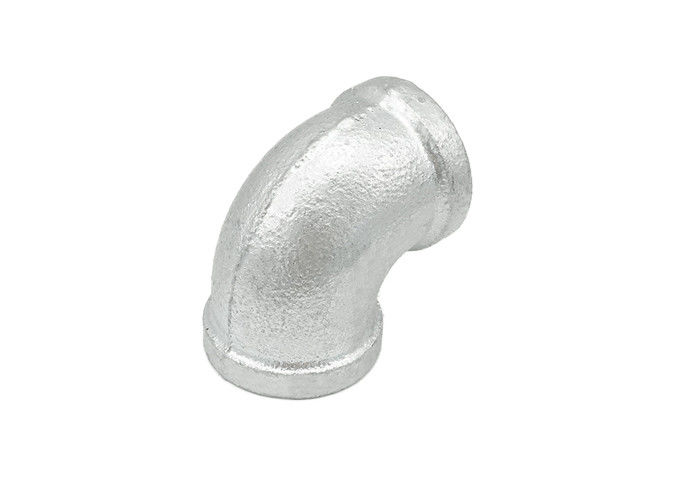

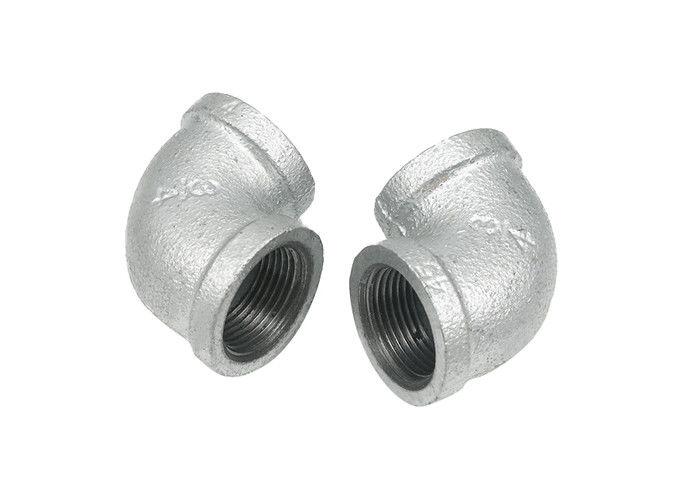

ASTM Standard 90 Degree Fittings Galvanizated Malleable Elbow With Rib

ASTM Standard 90 Degree Fittings Galvanizated Malleable Elbow With Rib

  • ASTM  Standard 90 Degree Fittings Galvanizated Malleable Elbow With Rib
  • ASTM  Standard 90 Degree Fittings Galvanizated Malleable Elbow With Rib
  • ASTM  Standard 90 Degree Fittings Galvanizated Malleable Elbow With Rib
ASTM  Standard 90 Degree Fittings Galvanizated Malleable Elbow With Rib
Product Details:
Place of Origin: China
Brand Name: leyon
Certification: FM/UL
Model Number: ASTM standard Elbow With Rib
Payment & Shipping Terms:
Minimum Order Quantity: 100piece
Price: Negotiable
Packaging Details: 200piece/carton
Delivery Time: 25-35days
Payment Terms: Western Union, L/C, T/T, MoneyGram, D/A, D/P
Supply Ability: 10000piece/week
Contact Now
Detailed Product Description
Specification: Elbow, Socket, Tee, Union, Bushing, Plug Technics: Casting
Surface Treatment: Hot Dipped Galvanized And Cold Galvanized Thread: NPT
Usage: Oil Gas Water Industrial Certificate: BSI, ISO9001,FM,UL
Item: ASTM Standard Elbow With Rib
High Light:

malleable cast iron pipe fittings

,

iron plumbing fittings

How about white cast iron ?



White cast iron is converted to malleable cast iron by a two stage heat treatment process to a condition having most of its carbon content in the form of irregularly shaped nodules of graphite, called temper carbon. The structure of malleable cast iron consists of ferrite, pearlite and tempered carbon as compared to the fracture inducing lamellar structure of gray cast iron.​



Visual communication of ASTM standard Elbow

Size Inch 1/8 1/4 3/8 1/2 3/4 1 11/4 11/2
mm 6 8 10 15 20 25 32 40
Dim.
(mm)
A 19 21 25 28 33 38 45 50
Size Inch 2 21/2 3 4 5 6
mm 50 65 80 100 125 150
Dim.
(mm)
A 50 69 78 96 115 1301



Size Inch 3/8X1/4 1/2x1/4 1/2x3/8 3/4x3/8 3/4x1/2
mm 10X8 15X8 15X10 20X10 20X15
Dim.
(mm)
A 23 26 26 28 30
  B 23 26 26 28 31
Size Inch 1x1/2 1x3/4 11/4x1/2 11/4x3/4 11/4x1
mm 25X15 25X20 32X15 32X20 32x25
Dim.
(mm)
A 32 35 34 36 40
  B 34 36 38 41 42



Size Inch 11/2X1/2 11/2x3/4 11/2x1 11/2x11/4 2x1/2
mm 40X15 15X8 40X25 40X32 50X15
Dim.
(mm)
A 36 39 42 46 38
  B 42 44 46 28 48
Size Inch 2x3/4 2x1 2x11/4 2x11/2 21/2x1
mm 50X20 50X25 50X32 50X40 65x25
Dim.
(mm)
A 40 44 56 52 56
  B 50 52 58 55 63



Summary of ASTM standard Elbow With Rib



  • In order to ensure mechanical property, control the temperature of  and time strictly during annealing.

  • In order to improve material physical characteristics of ASTM standard Elbow ,we set a higher heating value gas furnace to control the annealing process strictly .

  • To make sure the long time using life ,it is necessary to keep good toughness .


  • Smooth surface ,no sand hole .


  • Control the zinc layer stricly according to requirements of standard .



Size Inch 21/2X11/2 3x21/2 21/2x2 3x11/2
mm 65X40 80X65 65X50 80X40
Dim.
(mm)
A 64 82 61 58
  B 69 85 66 72
Size Inch 3x2 4x21/2 4X3
mm 80X50 100X65 100X80
Dim.
(mm)
A 73 78 84
  B 78 90 92
