| Place of Origin: | China |
| Brand Name: | kanaif |
| Certification: | FM/UL |
| Model Number: | galvanized iron extension socket |
| Minimum Order Quantity: | 100piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 200piece/carton |
| Delivery Time: | 25-35days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000piece/week |
| Color: | Galvanized & Black | Meterial: | Malleable Iron |
|---|---|---|---|
| Physical Property: | Tensile Strength>=350Mpa,Elongation>=10% Hardness<=150HB | Size: | 1/8"6“ |
| Standard: | ANSI,BS,DIN | Working Pressure: | 1.6Mpa |
| Surface Treatment: | Hot Galvanized | Type: | Galvanized Iron Extension Socket |
| High Light: | reducing cross pipe fitting,galvanized pipe cross |
||

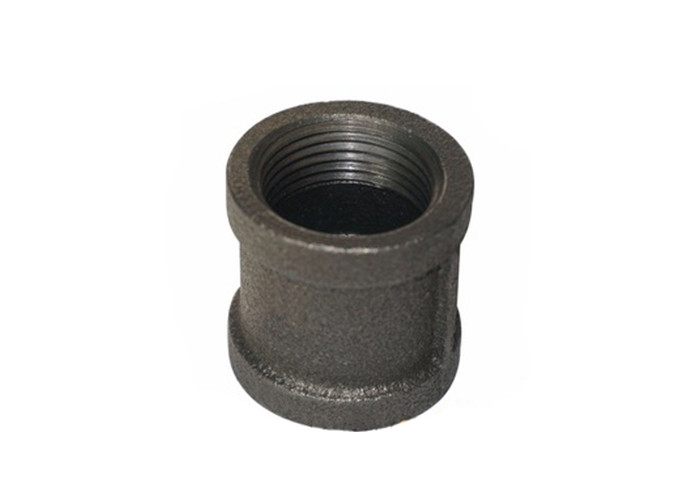

Attribute list of malleable iron pipe fittings socket
| Size | Inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 |
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | |
| Dim. (mm) |
A | 24.2 | 26.9 | 29.5 | 34.0 | 38.6 | 42.4 | 49.0 |
| Size | Inch | 11/2 | 2 | 21/2 | 3 | 4 | 5 | 6 |
| mm | 40 | 50 | 65 | 80 | 100 | 125 | 150 | |
| Dim. (mm) |
A | 54.6 | 64.3 | 73.2 | 80.8 | 93.7 | 95 | 105 |
Online Shopping Galvanized Iron Extension Socket Welding Swage With Best Quality
We rely on higher heating value gas annealing furnace to import the physical characteristics of galvanized iron extension socket.
Thread diameter, parallelism, angle, tooth type, every part on thread will be regulated strictly .even each galvanized iron extension socket must be sorted by plug gauge.
Chart :
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
| Delivery details | According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the deposit |
A&Q
A: How does it test ?
B: Gas leakage test for will be done.
A: What's the outlet dimension ?
Q: Outlet size is from 1/8”~6”.
